Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Cargo Door Ajar Indicator Inoperative

Cargo Door Ajar Indicator Inoperative

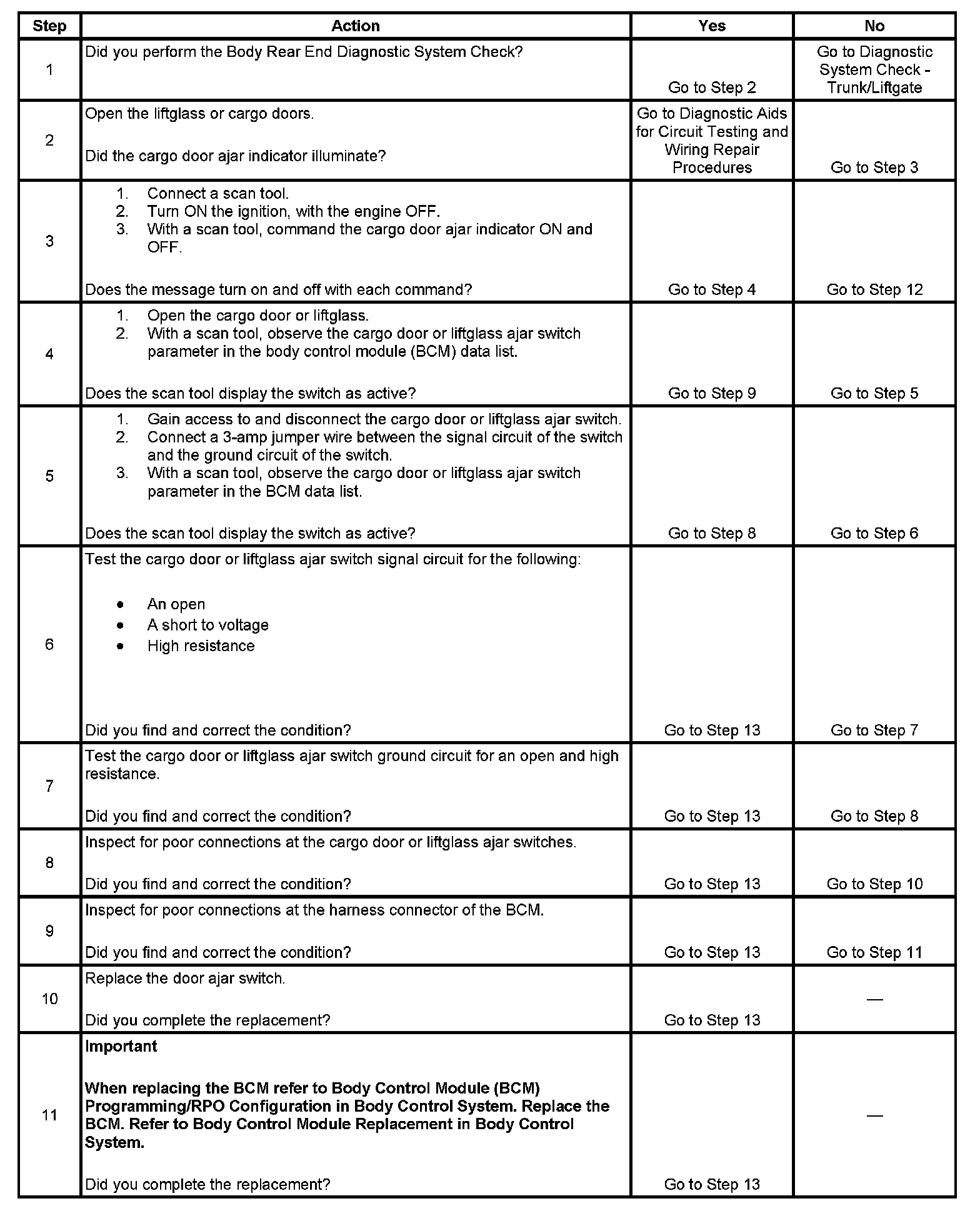

Steps 1-11:

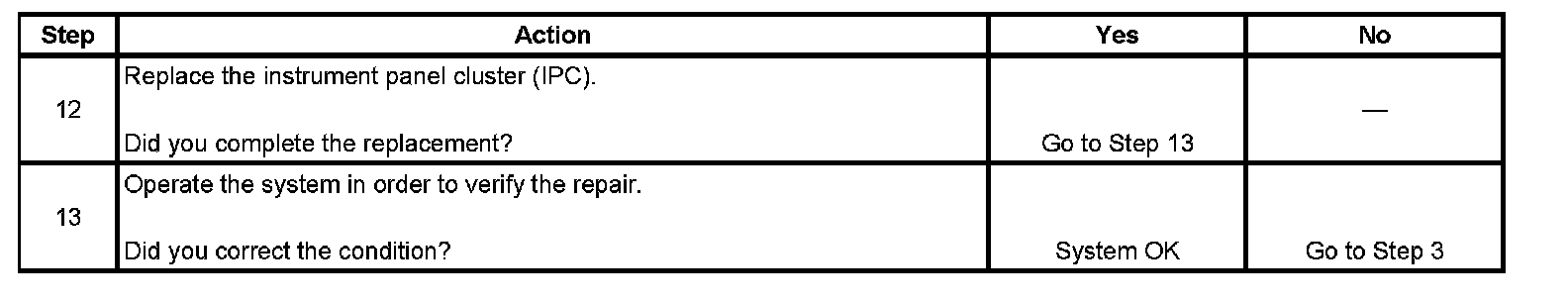

Steps 12-13:
