Door Contact Plate - Left Cargo

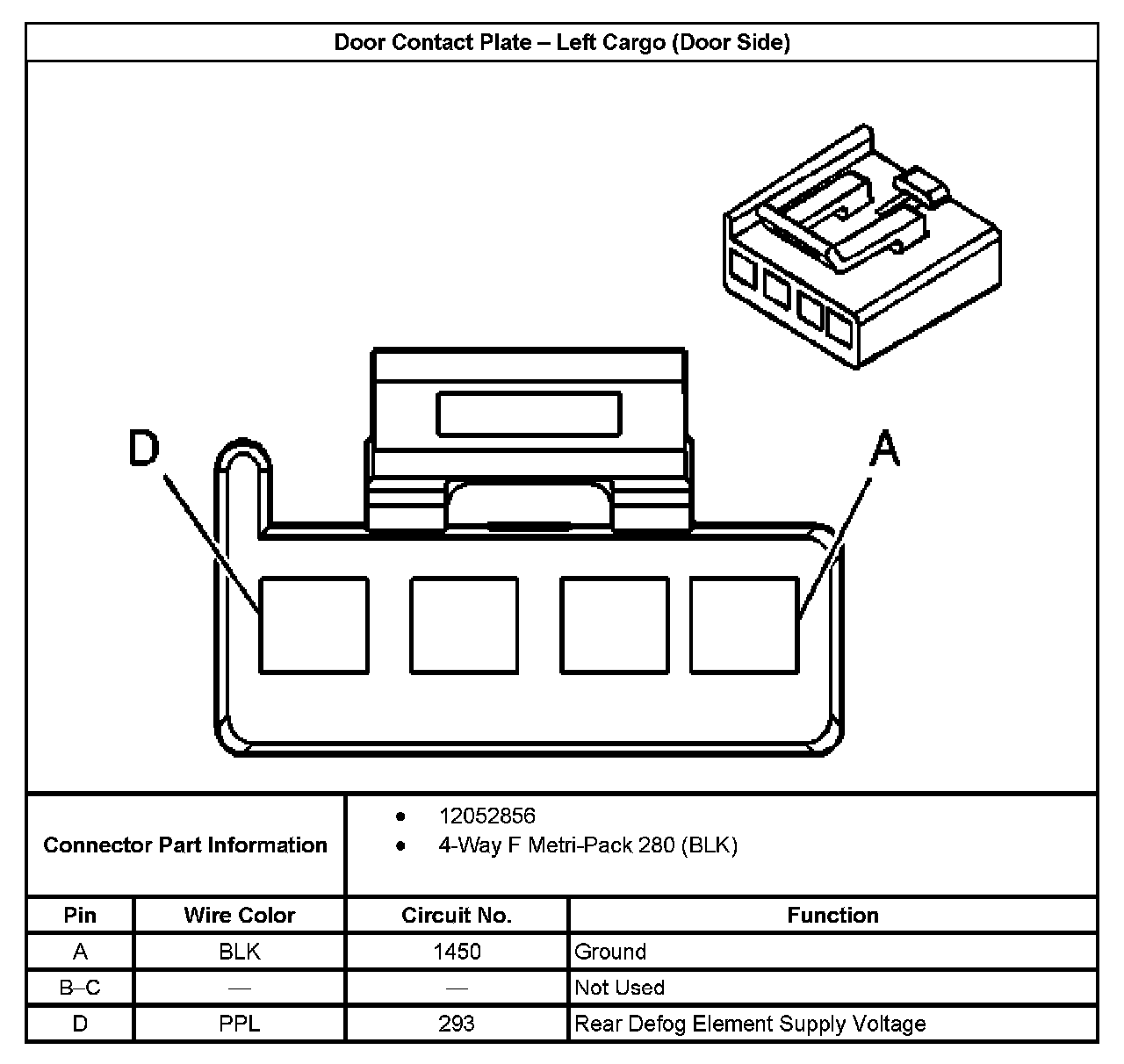

Door Contact Plate - Left Cargo (Door Side):

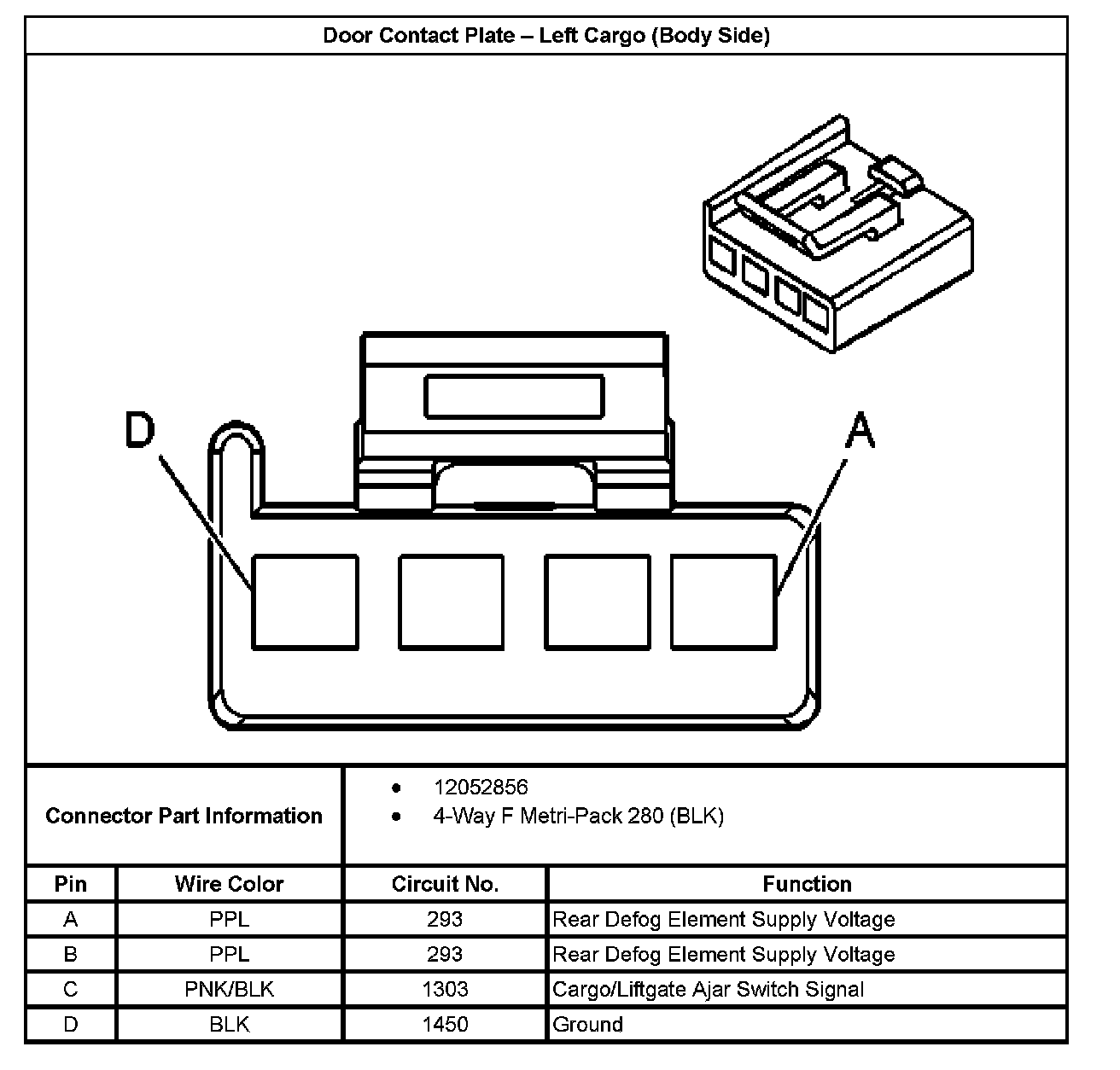

Door Contact Plate - Left Cargo (Body Side):
