Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Windows - Inoperative - Passenger Door (Rear Door(s))

Power Windows - Inoperative - Passenger Door (Rear Door(s))

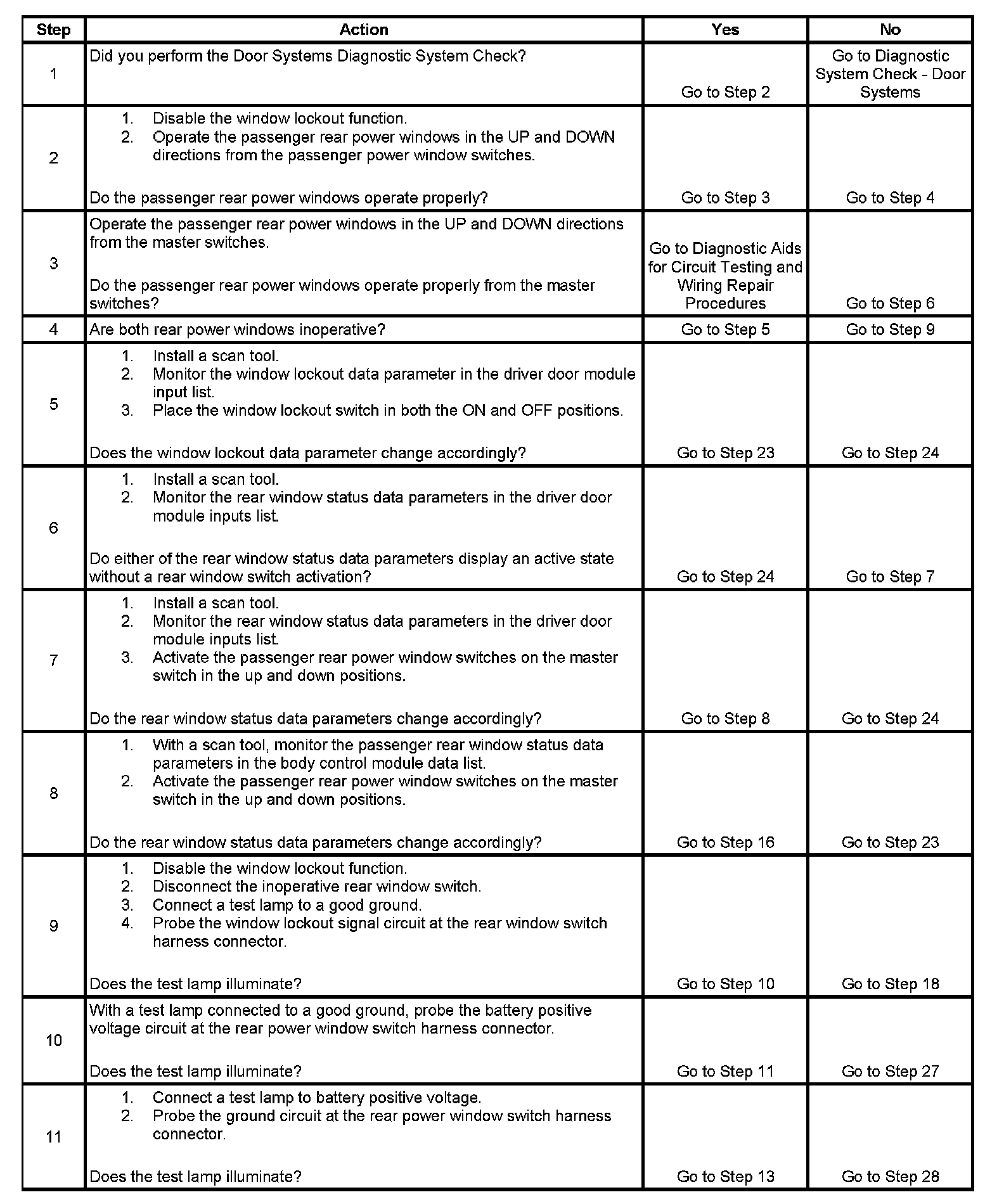

Steps 1-11:



Steps 12-22:



Steps 23-33:
