P2771

DTC P2771





Circuit Description with 4L60-E / 4L65-E Automatic Transmission

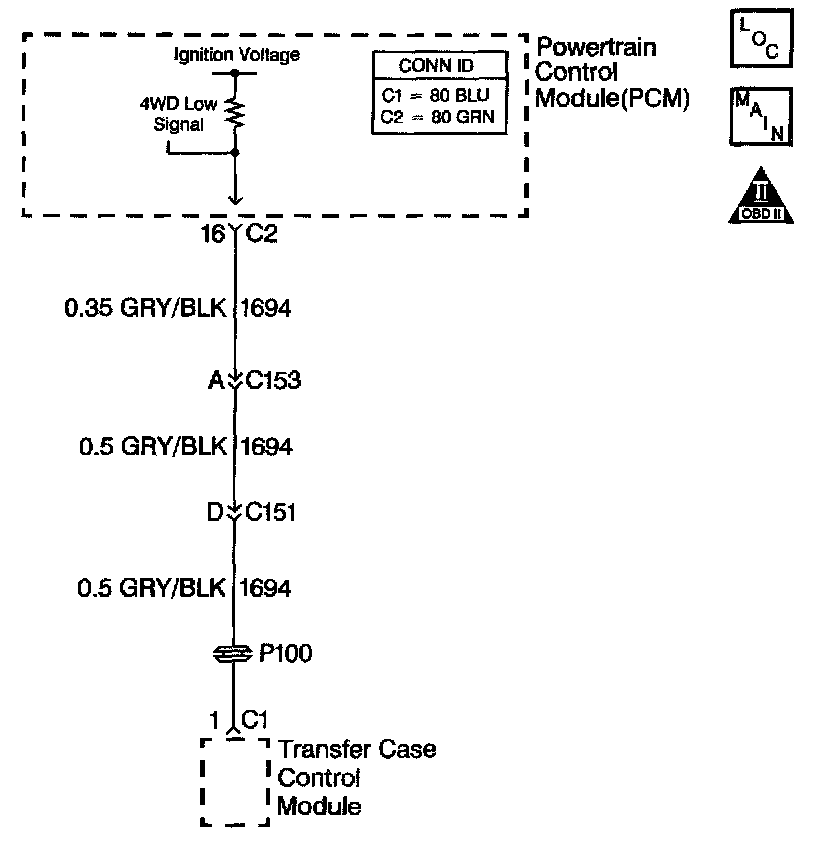

The four wheel drive (4WD) low circuit consists of the powertrain control module (PCM), a transfer case control module and the circuit wiring. The transfer case control module controls the 4WD low signal on the low signal circuit. When the operator selects 4WD low, the transfer case control module grounds the signal circuit, and the 4WD low signal voltage on the circuit changes from ignition voltage to zero volts. The PCM then compensates for transfer case gear reduction in the transmission output shaft speed (OSS) sensor signal. The PCM uses the transmission 055 sensor signal to adjust shift points, line pressure and torque converter clutch (TCC) scheduling. When the PCM detects a continuous open, short to ground or short to power in the 4WD low circuit, then DTC P2771 sets. DTC P2771 is a type B DTC.

Conditions for Running the DTC
- No TP sensor DTCs P0122, or P0123.
- No VSS assembly DTCs P0502 or P0503.
- No TCC solenoid valve DTC P0740.
- No TCC stuck ON DTC P0742.
- No 1-2 55 valve DTCs P0751 or P0753.
- No 2-3 55 valve DTCs P0756 or P0758.
- No TFP manual valve position switch DTC P1810.
- No TCC PWM solenoid valve DTG P2761.
- The engine speed is greater than 450 RPM for 5 seconds.
- The engine is not in fuel cutoff.
- The vehicle speed is greater than 11 km/h (7 mph).
- The TP angle is 17-50 percent.
- The engine torque is 54-542 N.m (4O~400 lb ft).
- The engine vacuum is 0-1 OS kPa (0-15 psi).
- The gear range is D4.
- The shift solenoid performance counters are zero.
- The TFT is 20-130°C (68-266°F).

Conditions for Setting the DTC
DTC P2771 sets if one of the following conditions occurs:

Condition 1
- The 4WD low switch is in 4WD low.
- The transfer case is not in 4WD low.
- The TCC slip speed is -3,000 to -50 RPM.
- The transfer case ratio is 0.08-1.2, the transfer case ratio is the engine speed divided by the transfer case output speed.
- All conditions are met for 5 seconds.

Condition 2
- The 4WD low switch is not in 4WD low.
- The transfer case is in 4WD low.
- The TCC is commanded ON.
- The TCC slip speed is 100-3,000 RPM.
- The transfer case ratio is 2.5-2.9.
- All conditions are met for 10 seconds.

Action Taken When the DTC Sets
- The PCM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the Conditions for Setting the DTC are met.
- The PCM commands a normal shift pattern, not a 4WD low shift pattern.
- The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame and Failure Records.
- The PCM stores DTC P2771 in PCM history during the second consecutive trip in which the Conditions for Setting the DTC are met.

Conditions for Clearing the DTC
- The PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
- A scan tool can clear the MIL/DTC.
- The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
- The PCM cancels the DTC default actions when the fault no longer exists and/or the ignition switch is OFF long enough in order to power down the PCM.

Test Description

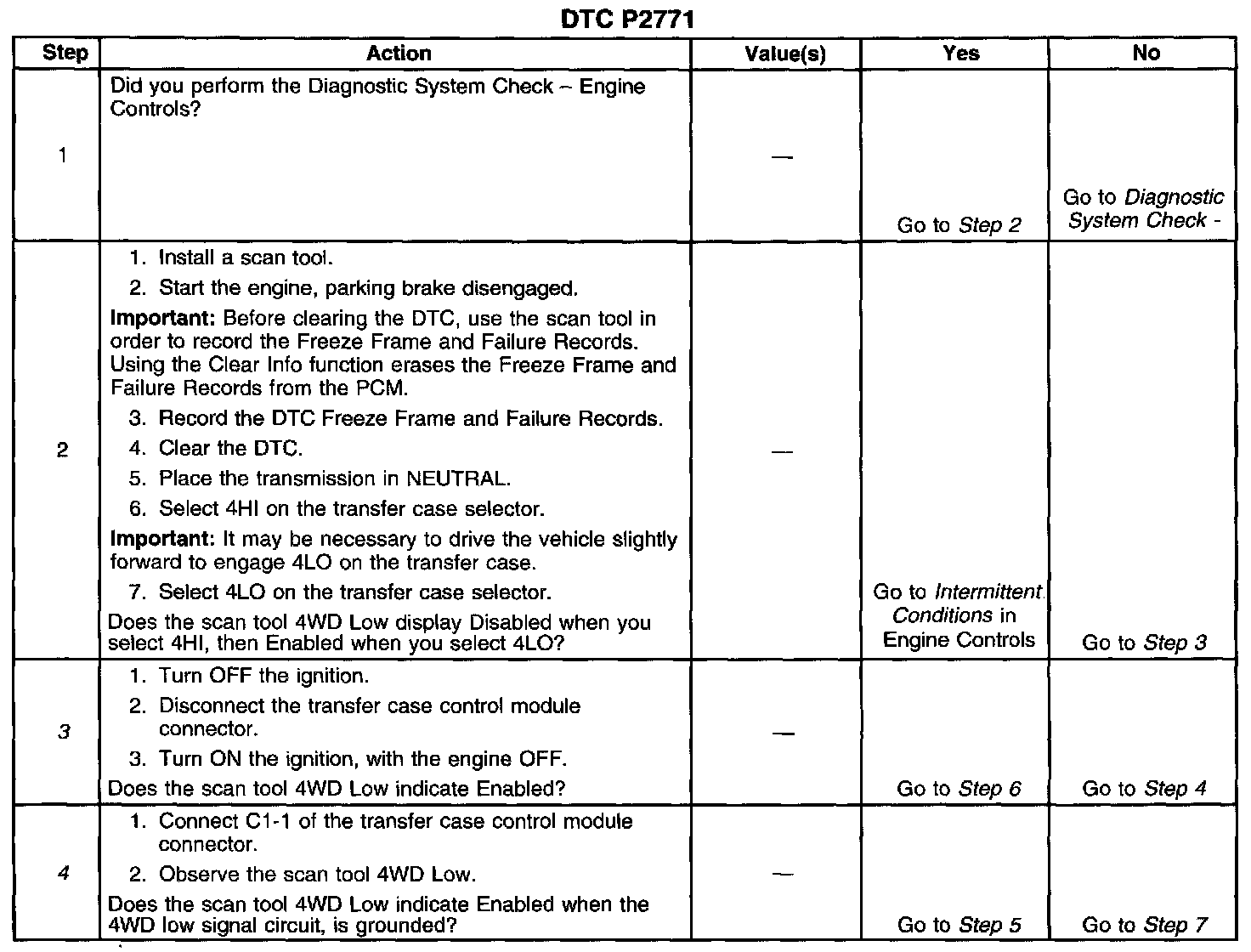

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a short to ground in the 4WD low signal circuit.
4. This step tests for an open in the 4WD low signal circuit or a faulty transfer case control module.
