C0291

DTC C0291

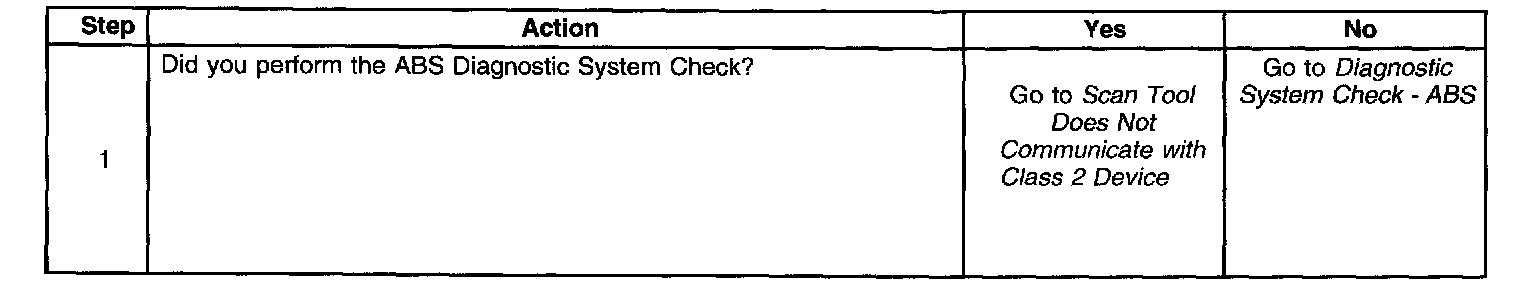

Test 1:

Circuit Description
The Body Control Module (BCM) sends a state of health serial data message to the Electronic Brake Control Module (EBCM) within 5.5 seconds after the ignition is turned ON.

Conditions for Running the DTC
The ignition is ON.

Conditions for Setting the DTC
The EBCM fails to receive serial data from the BCM.

Action Taken When the DTC Sets
The EBCM sets this information-only DTC as a current DTC for as long as the conditions for setting the DTC are present.

Conditions for Clearing the DTC
The conditions for setting the DTC are no longer present and you use the scan tool Clear DTCs function.
