With RPO JL4

DTC C0245 (W/JL4)

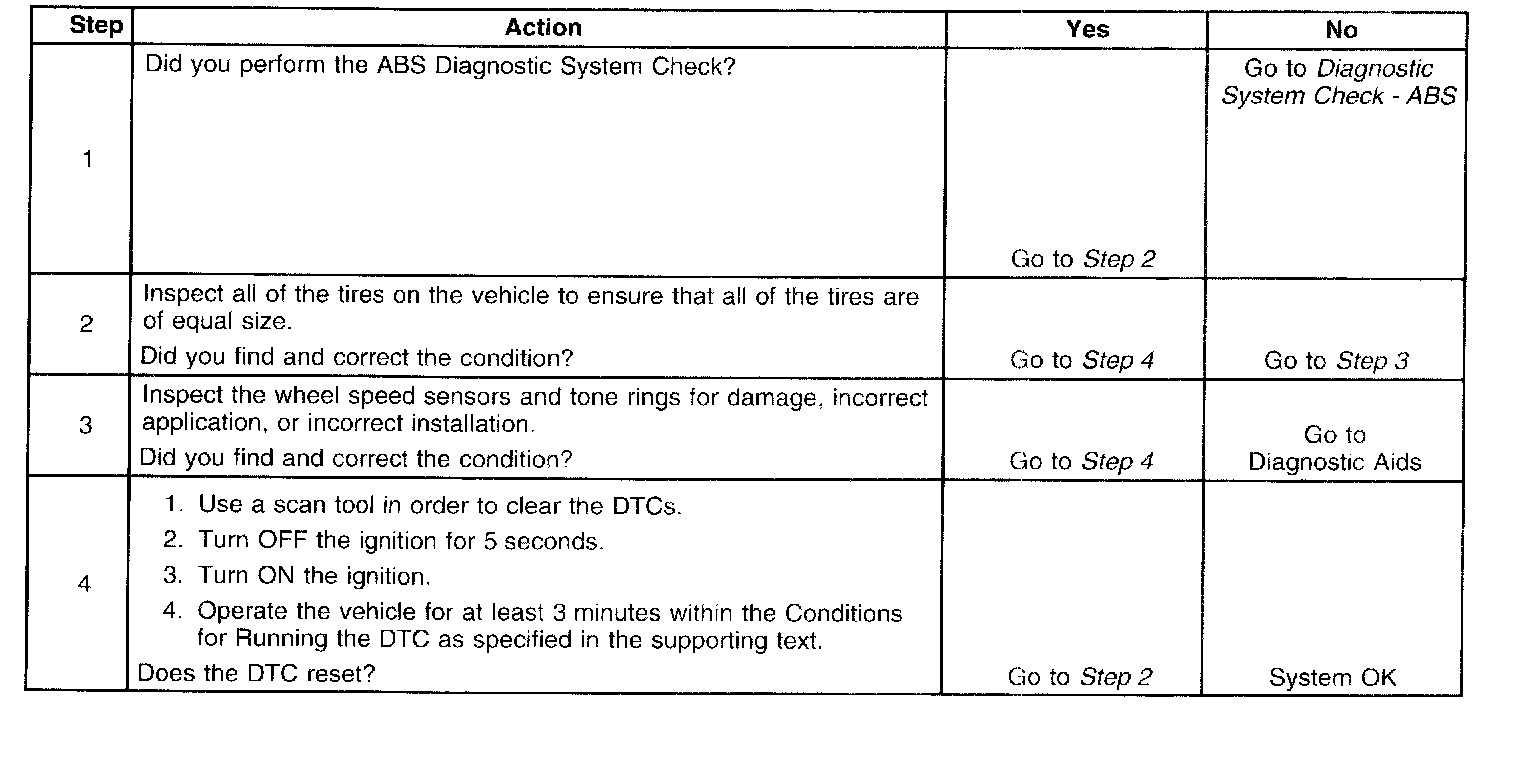

Test 1-4:

Circuit Description
As the wheels spin, each wheel speed sensor produces an AC signal. The Electronic Brake Control Module (EBCM) uses the frequency of the AC signals to calculate each wheel speed.

Conditions for Running the DTC
^ The ignition is ON.
^ The vehicle speed is greater than 8 km/h (4 mph).
^ No brake application or deceleration is detected.
^ No wheel slip is detected.
^ No turning maneuvers are detected.

Conditions for Setting the DTC
^ At least one wheel speed sensor signal is 15% less than or greater than other wheel speed sensor signals.
^ All of the Conditions for Running and Setting the DTC are present for a cumulative time of 3 minutes during a single ignition cycle.

Action Taken When the DTC Sets
^ The EBCM disables the ABS/TCS/VSES/DRP.
^ The ABS indicator turns ON.
^ The traction off indicator turns ON.
^ The message center displays the service stability system message.
^ The brake warning indicator turns ON.

Conditions for Clearing the DTC
The Conditions for Setting the DTC are no longer present and you use the scan tool Clear DTCs function.

Diagnostic Aids
Operating the vehicle with a tire that has very low air pressure may set this DTC.
