B1235

DTC B1235

CIRCUIT DESCRIPTION
The Antenna Enable/Amplifier On Signal is a class 2 signal sent from the radio through the RSA module, when equipped. The amplifier will reach full output capabilities 900 milliseconds after receiving this signal. The amplifier will then be capable of class 2 functions 60 milliseconds after being turned ON. This DTC will be set if the circuit is shorted to ground or battery.

CONDITIONS FOR RUNNING THE DTC
This test is run at least every 50 milliseconds.

CONDITIONS FOR SETTING THE DTC
The failure must occur for at least 3 seconds.

ACTION TAKEN WHEN THE DTC SETS
The Antenna Enable/Amplifier On Signal Circuit becomes disabled, causing the controlled module to become inoperative.

CONDITIONS FOR CLEARING THE DTC
The failure criteria is no longer detected for 50 milliseconds.

TEST DESCRIPTION

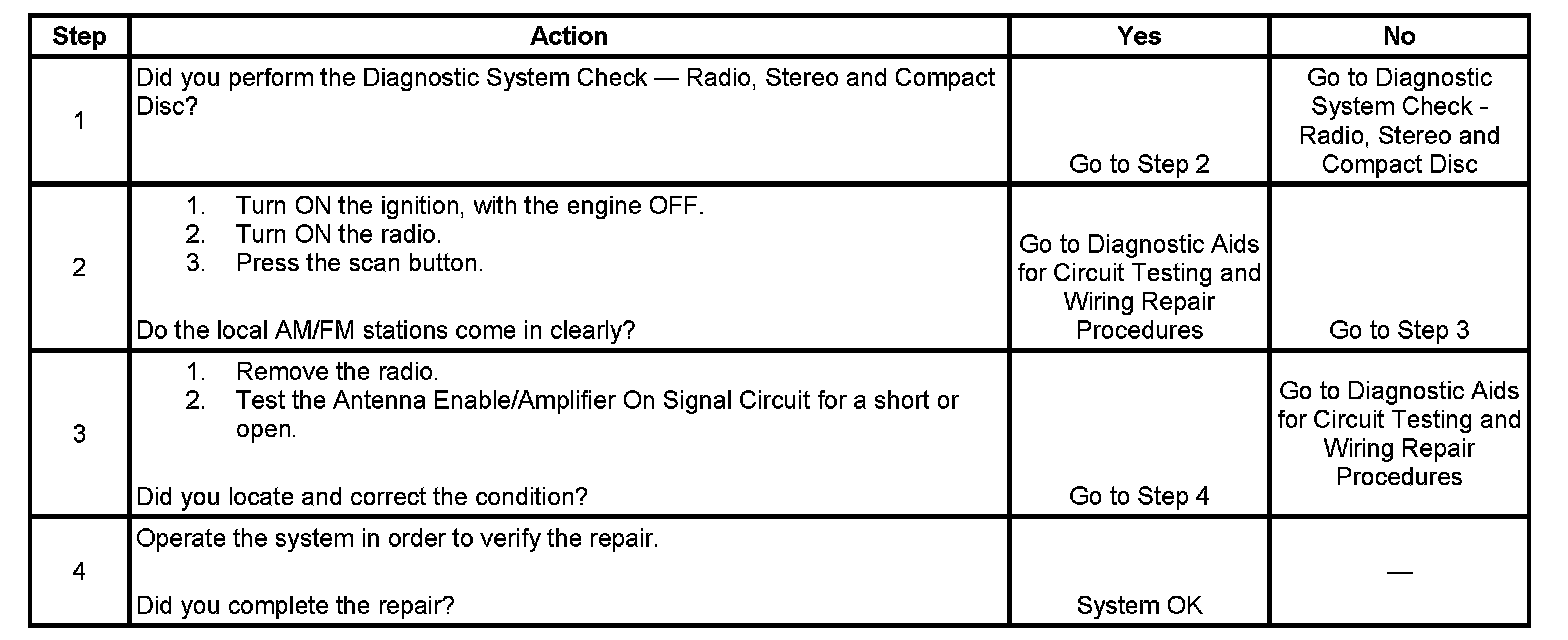

Steps 1-4:

The numbers below refer to the step numbers on the diagnostic table.
2. This step helps to determine if the Diversity Antenna System is operating.
3. This step helps to determine if Radio Antenna Module is receiving the proper signal from the radio.
