Inflatable Restraint Seat Position Switch

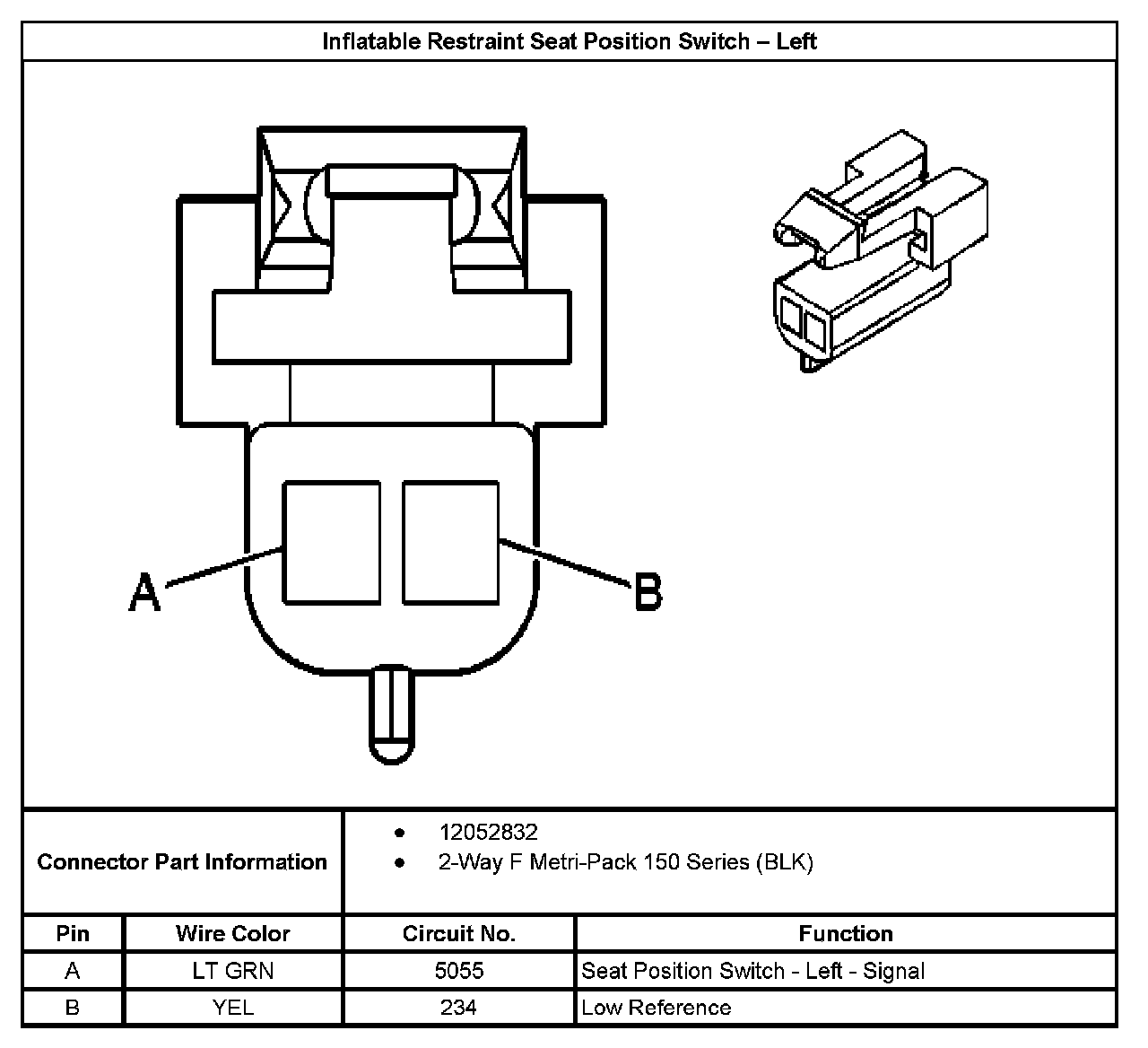

Inflatable Restraint Seat Position Switch-Left:

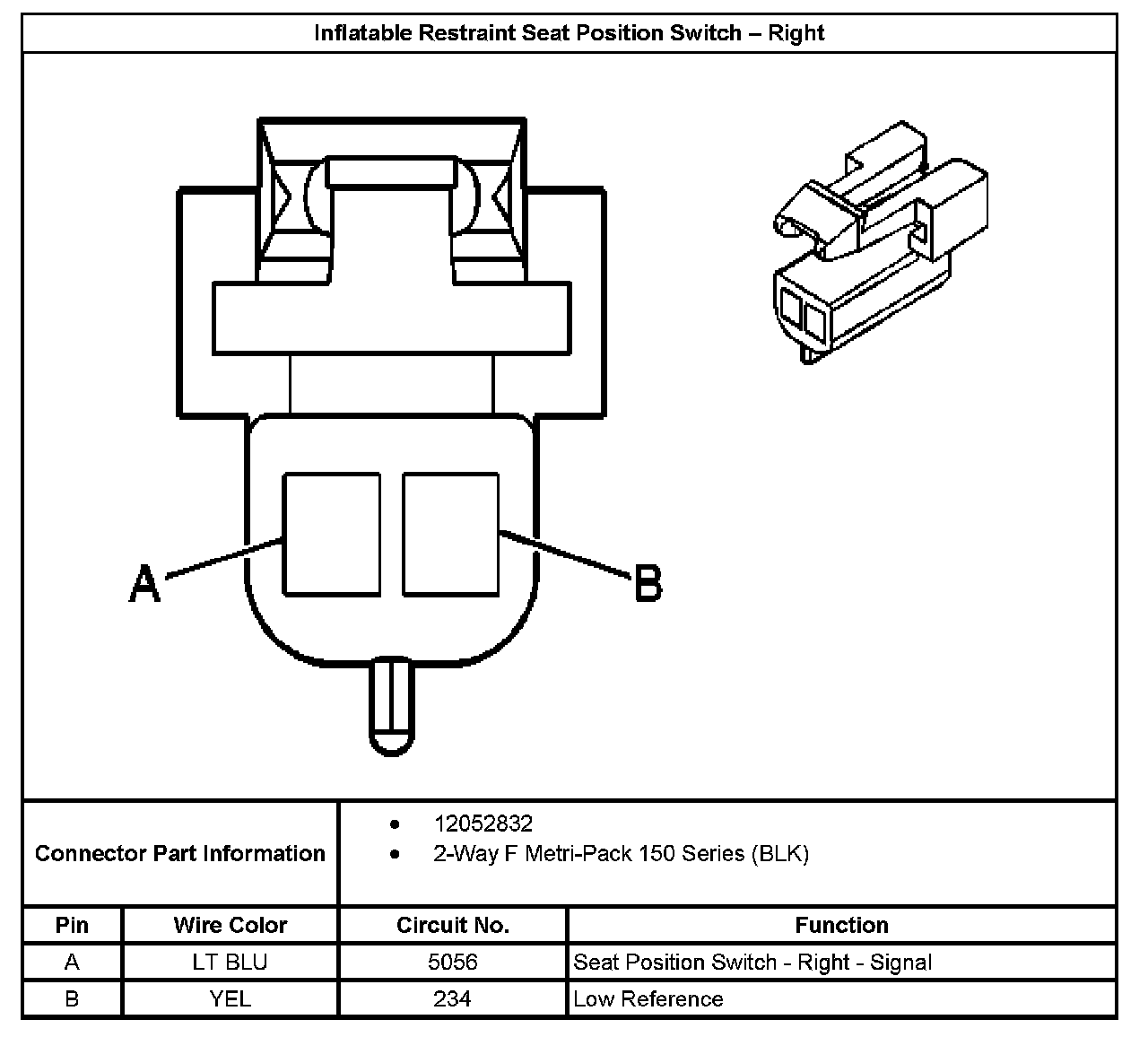

Inflatable Restraint Seat Position Switch-Right:
