Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 2WD V8-5.3L VIN Z Flex Fuel >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Antenna Control Module >> Locations

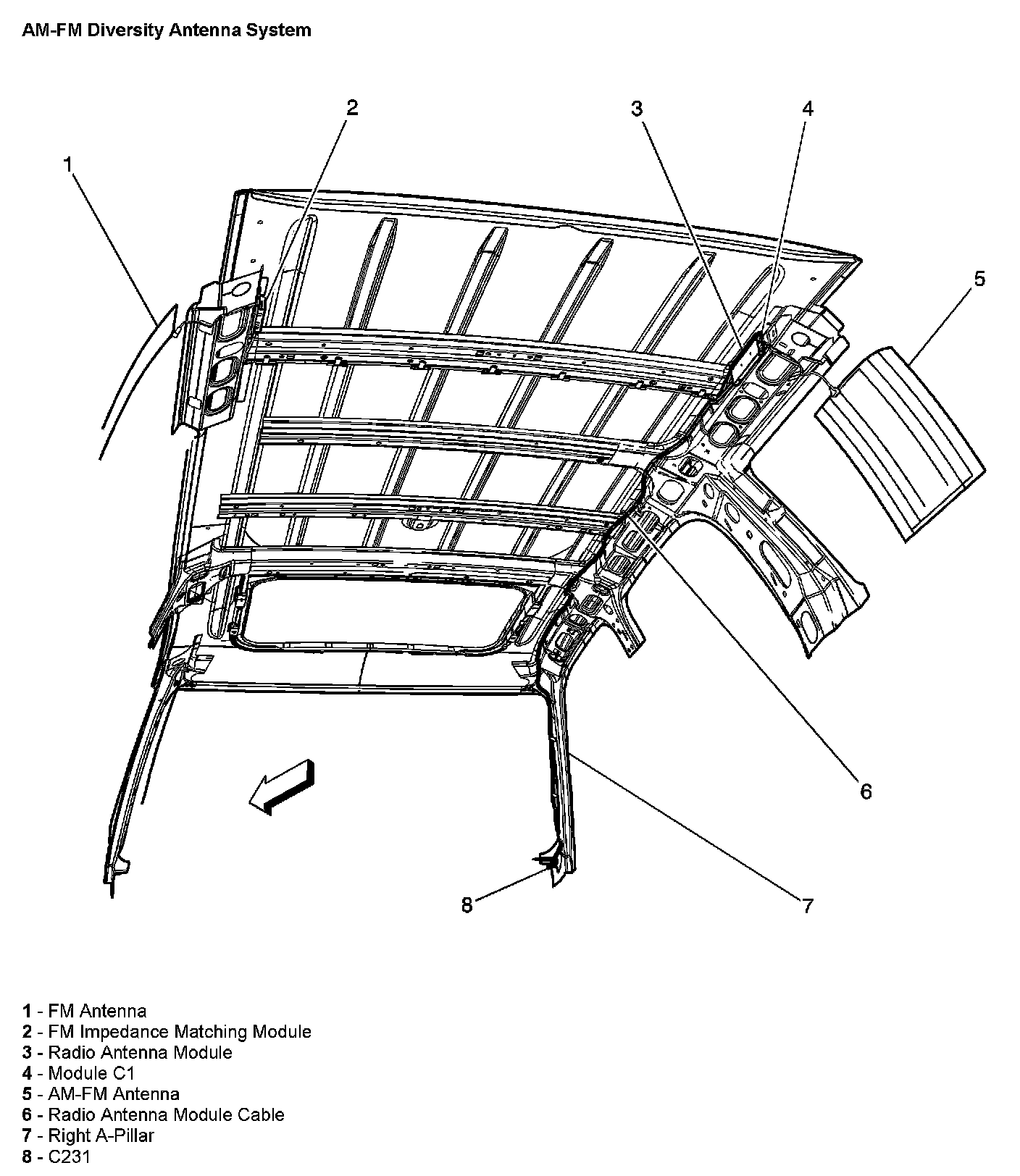

Antenna Control Module: Locations

AM-FM Diversity Antenna System:
