Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 2WD V8-5.3L VIN Z Flex Fuel >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head and Components

Cylinder Head and Components

Disassembled Views

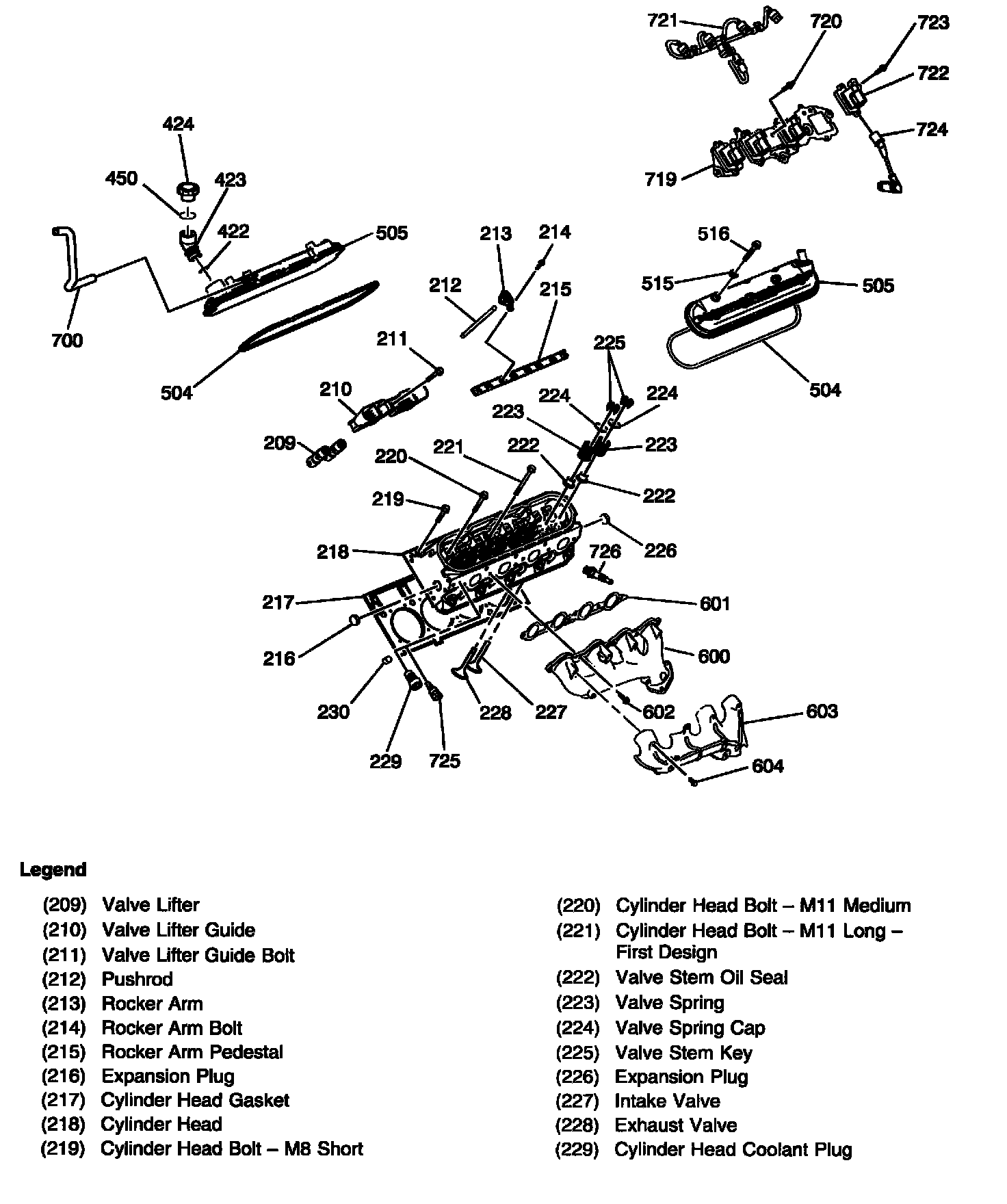

Cylinder Head/Upper Engine

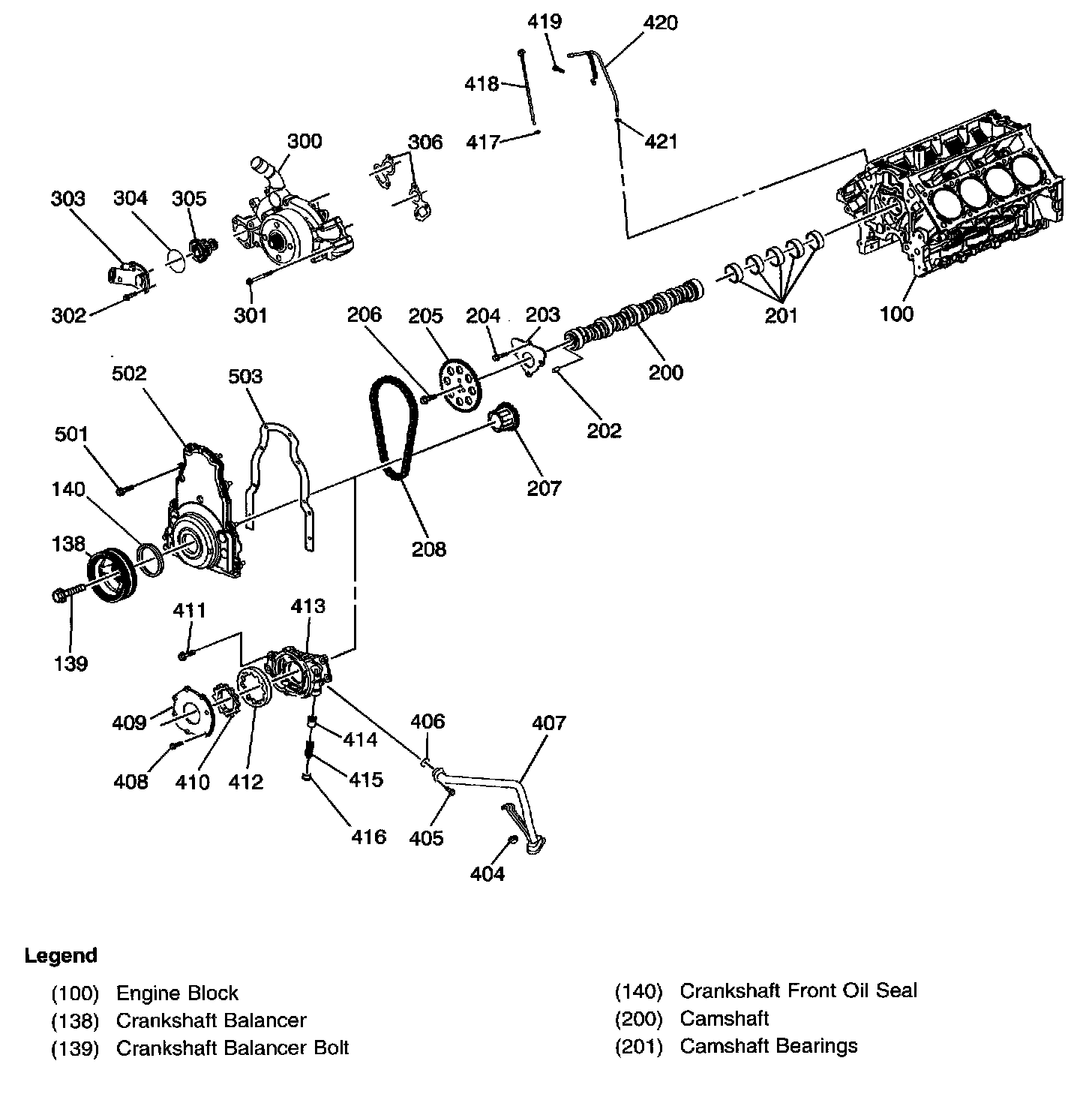

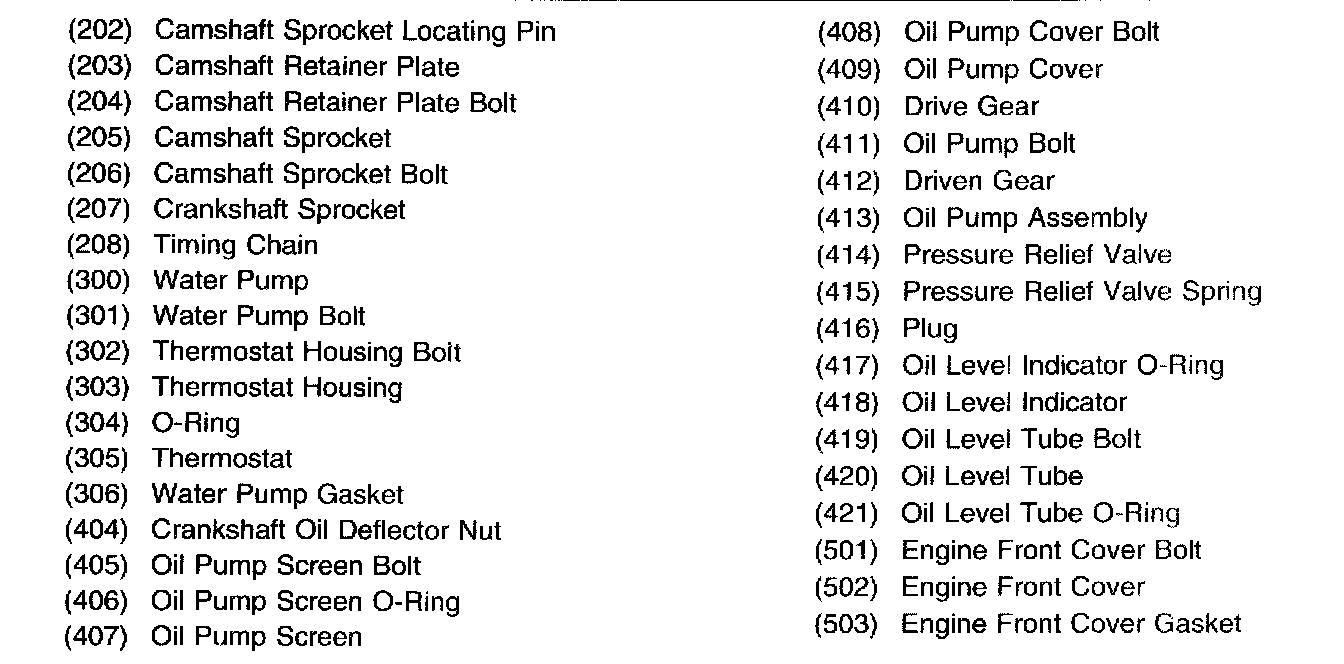

Front of Engine

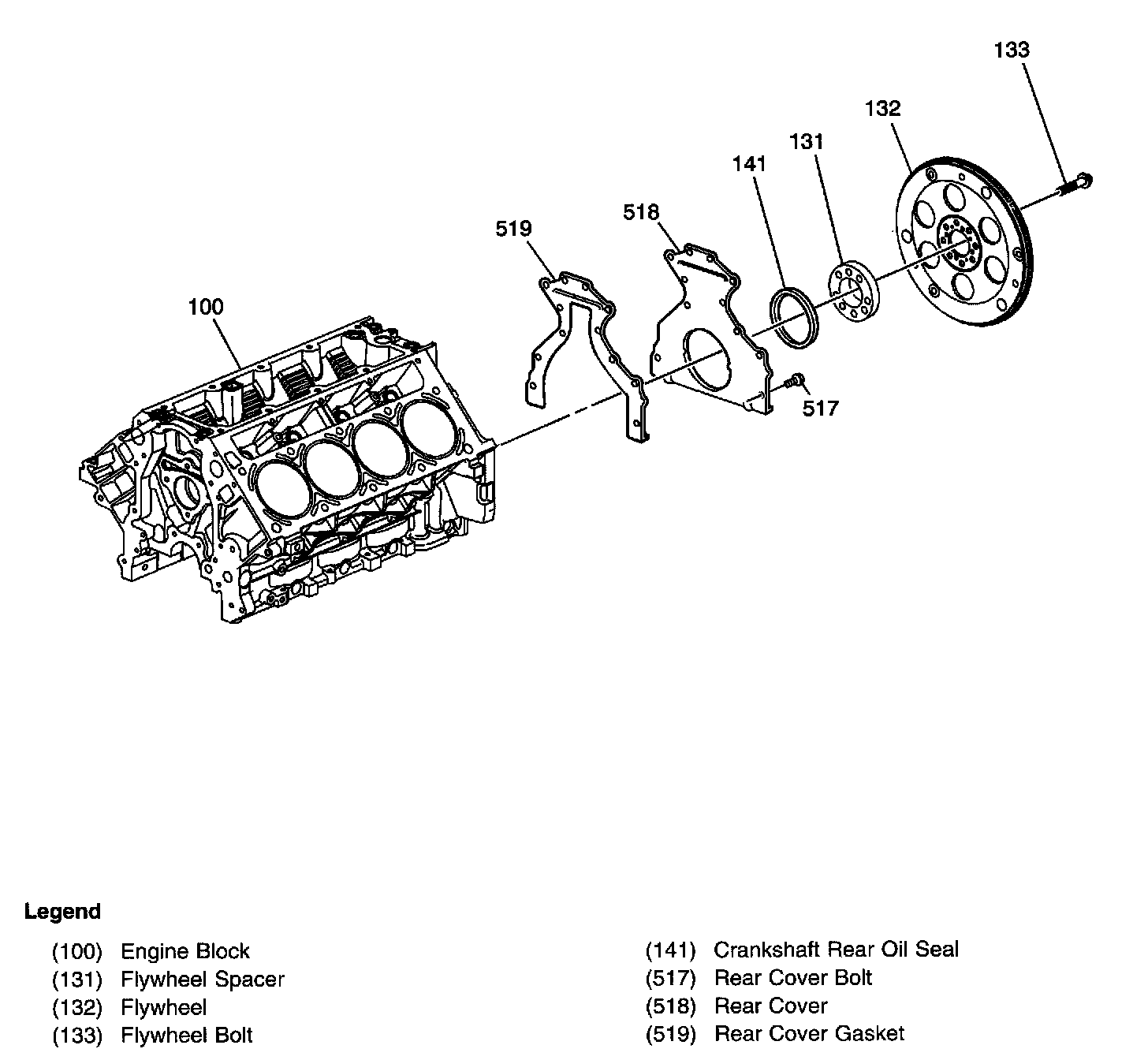

Rear of Engine

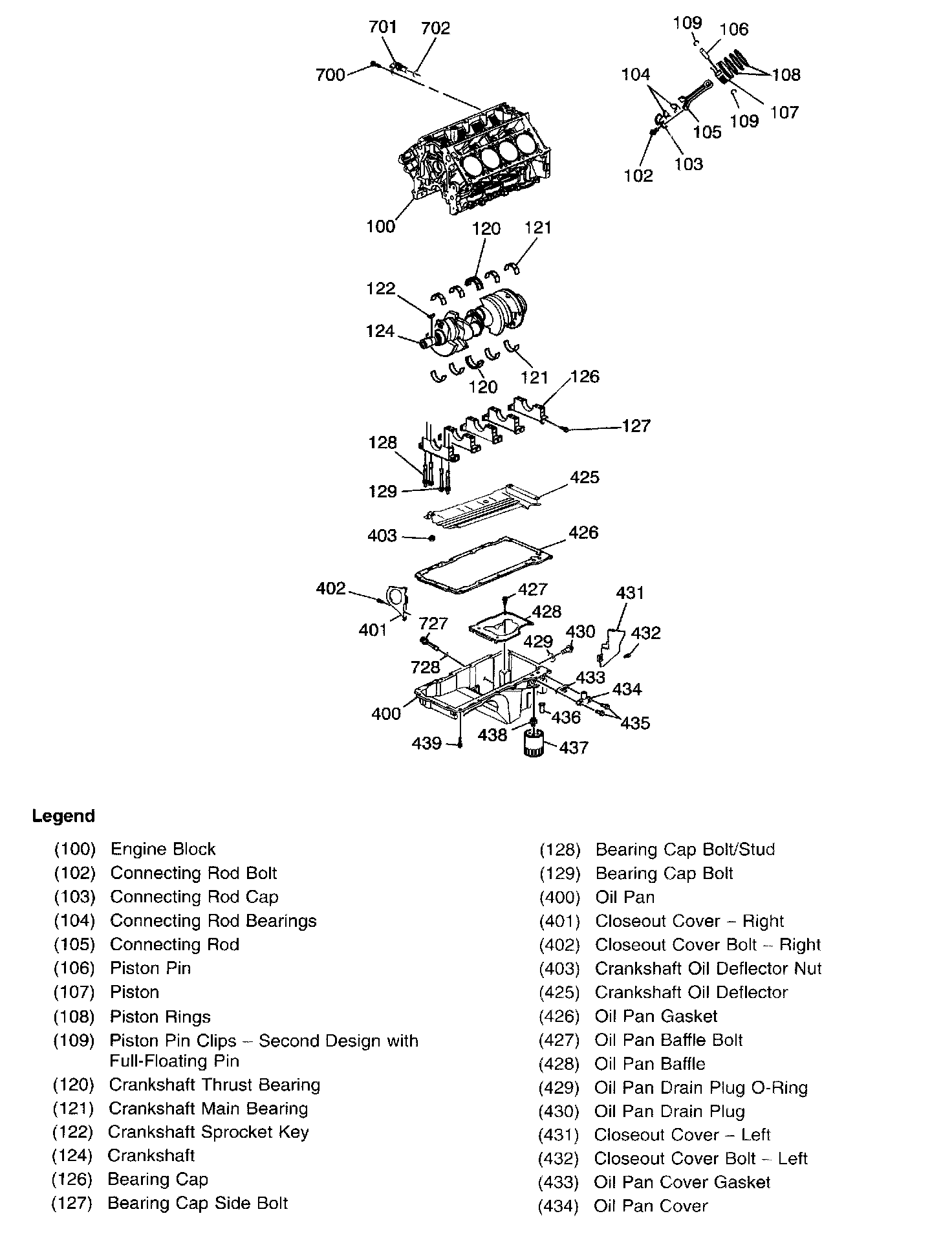

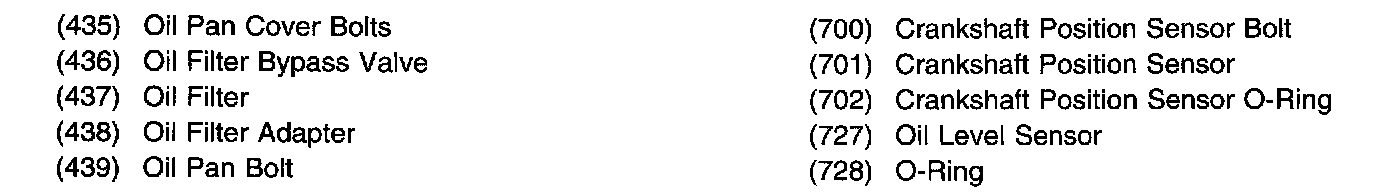

Lower Engine Assembly

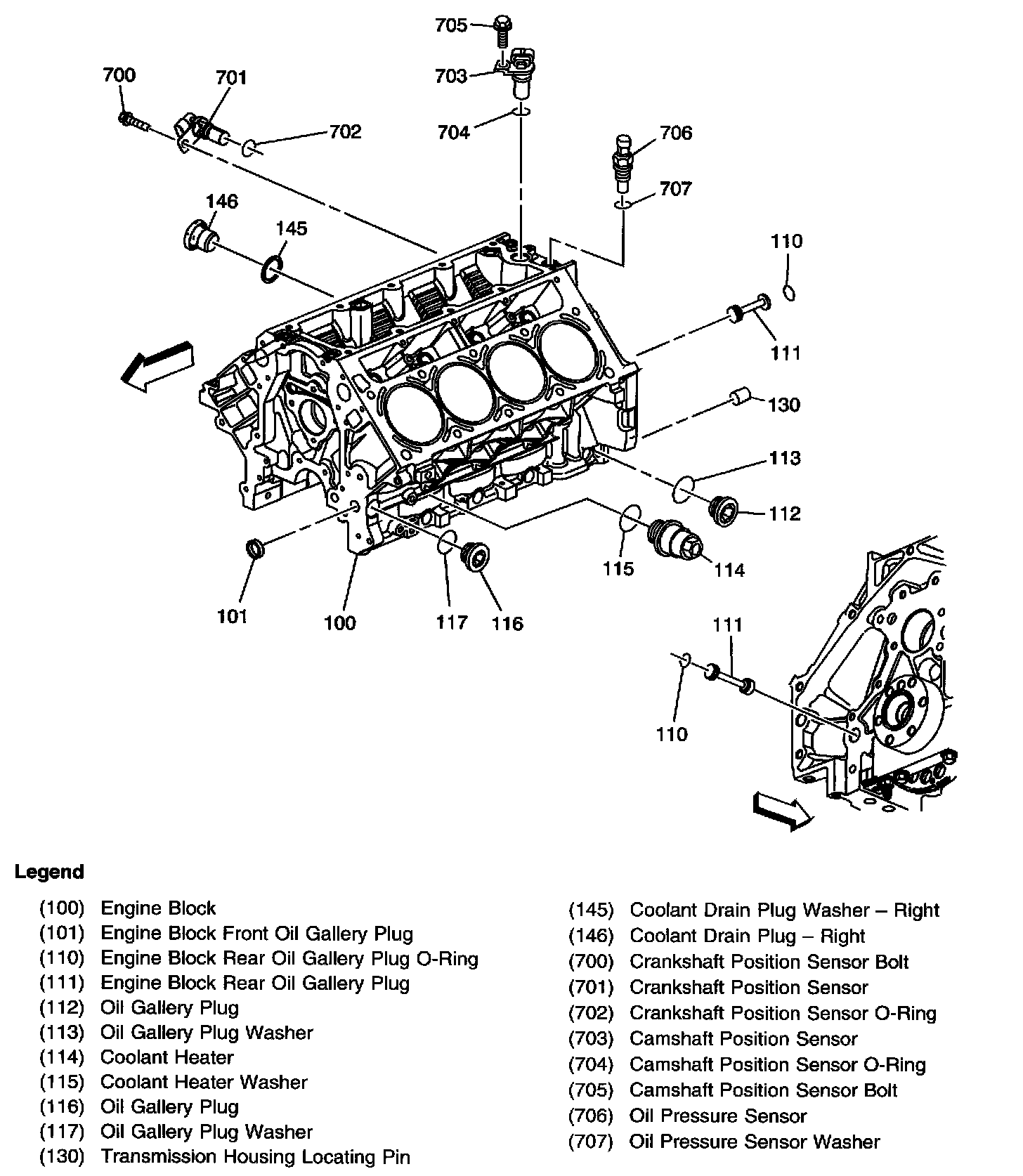

Engine Block Plugs/Sensors

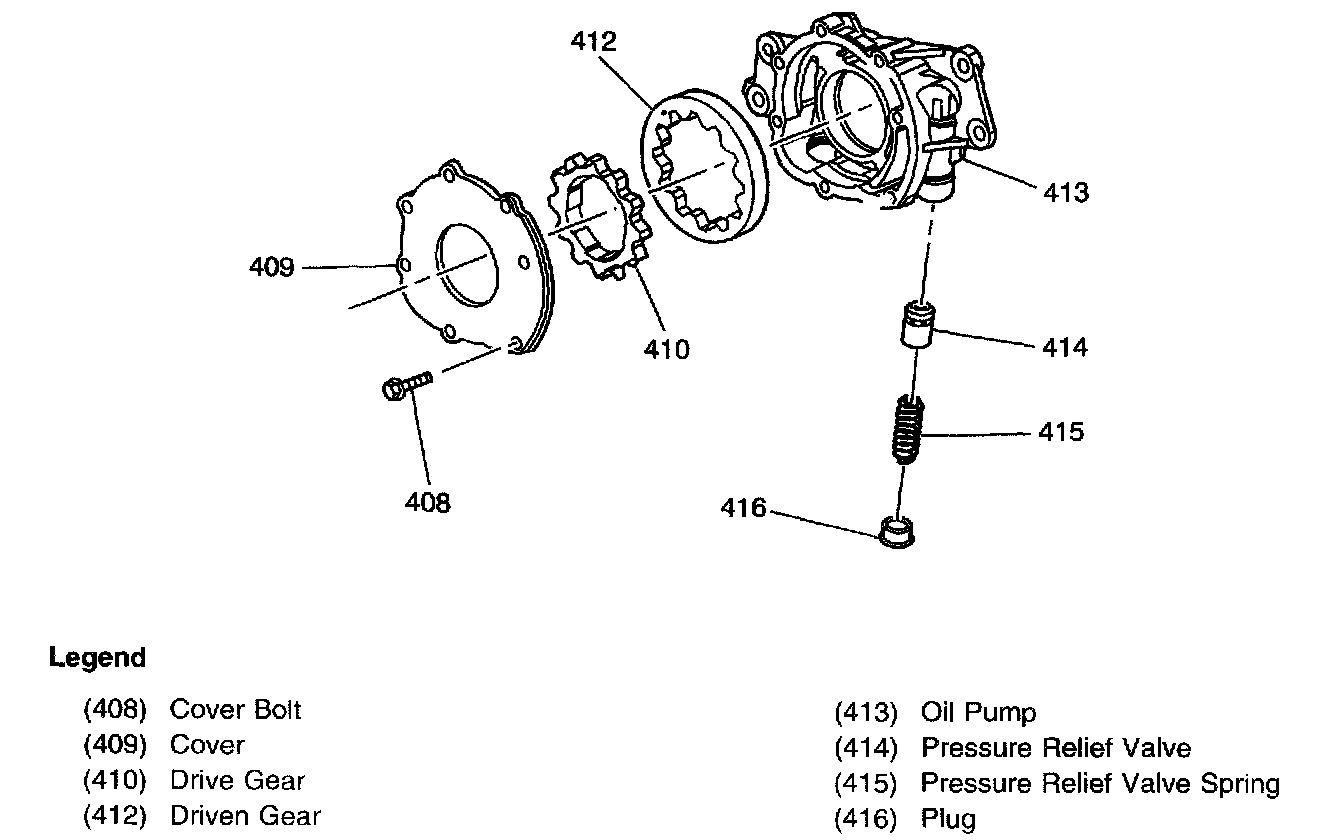

Oil Pump Assembly
