Manual Shift and Parking System Assembly

Disassembled Views

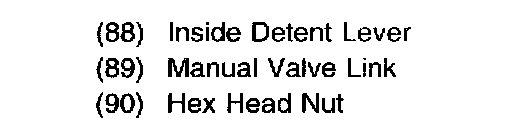

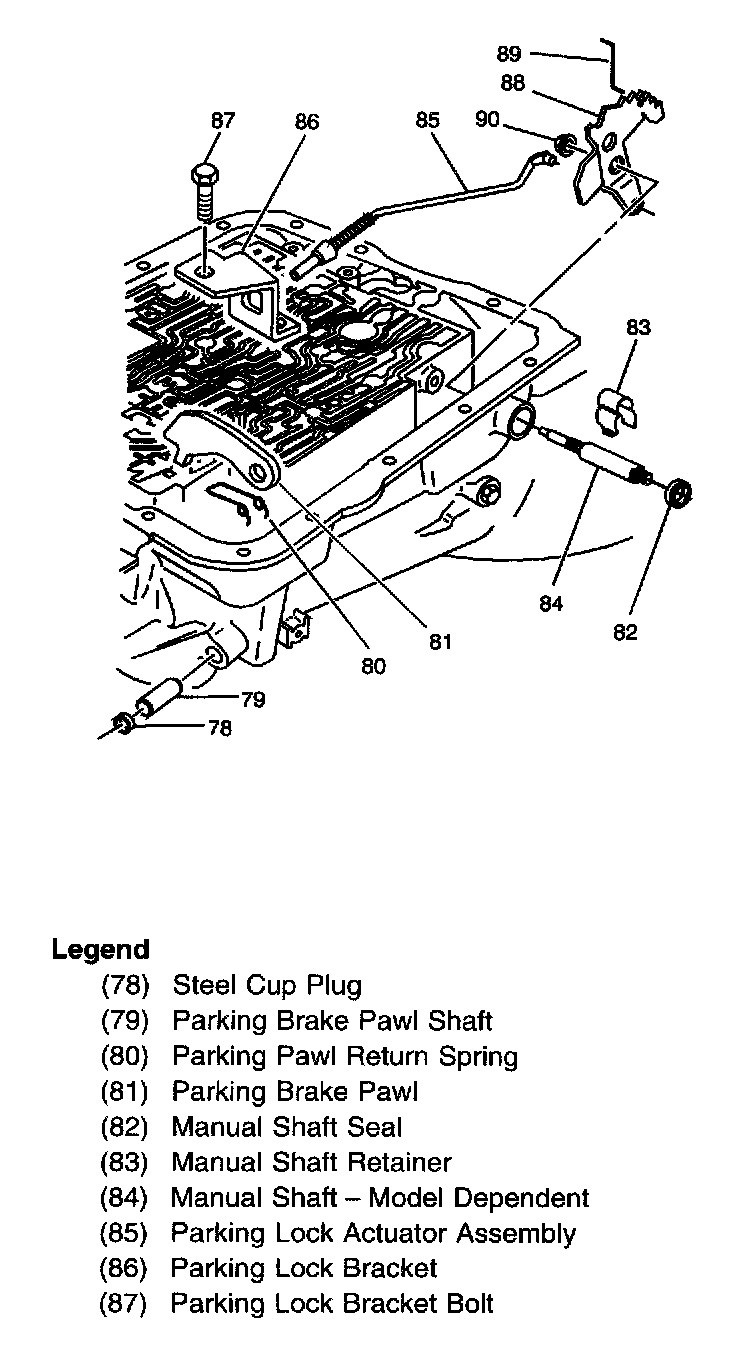

Parking Lock and Manual Shift Shaft Assembly
