Auxiliary Power Outlet

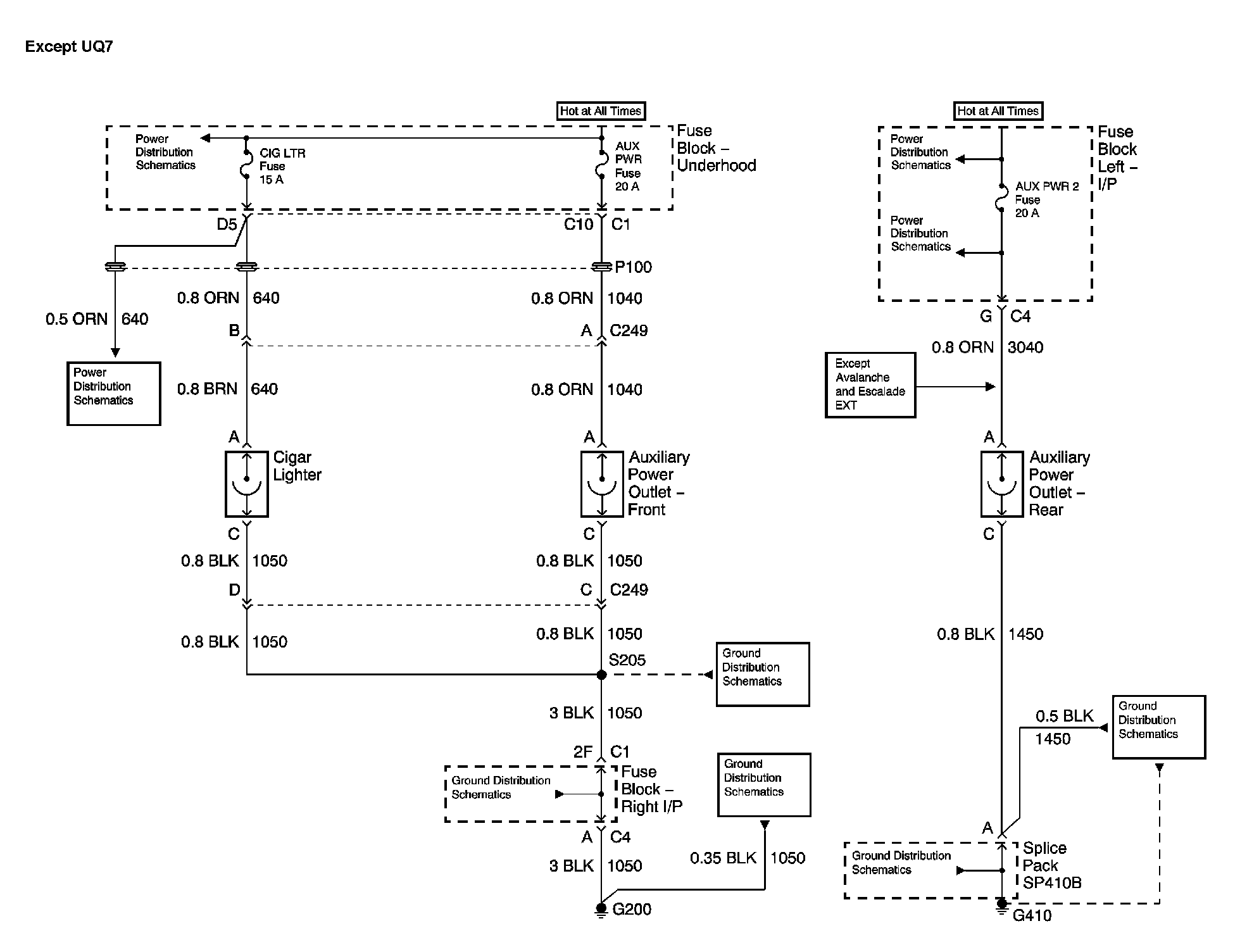

Cigar Lighter/Auxiliary Outlets Diagram 1:

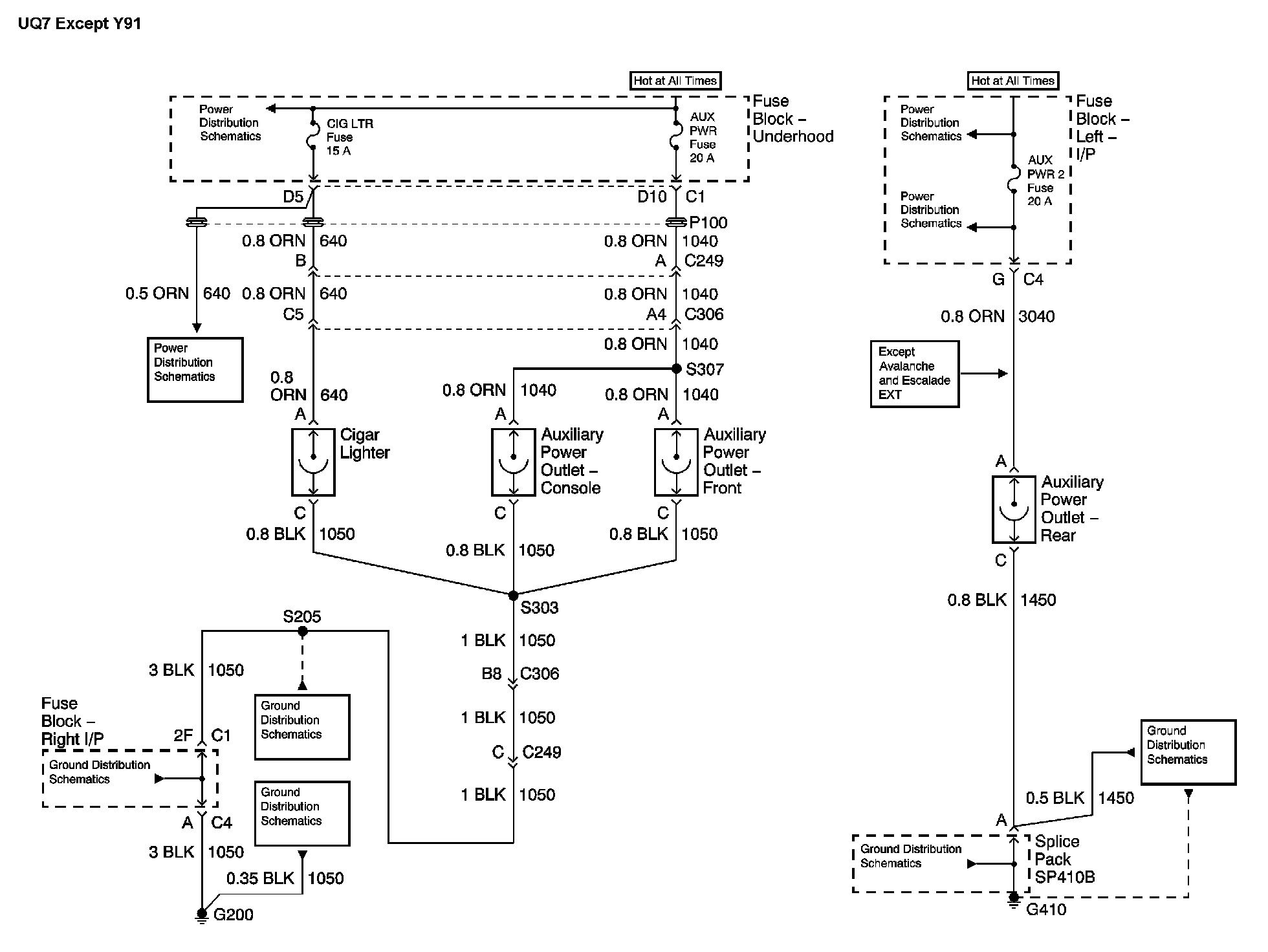

Cigar Lighter/Auxiliary Outlets Diagram 2:

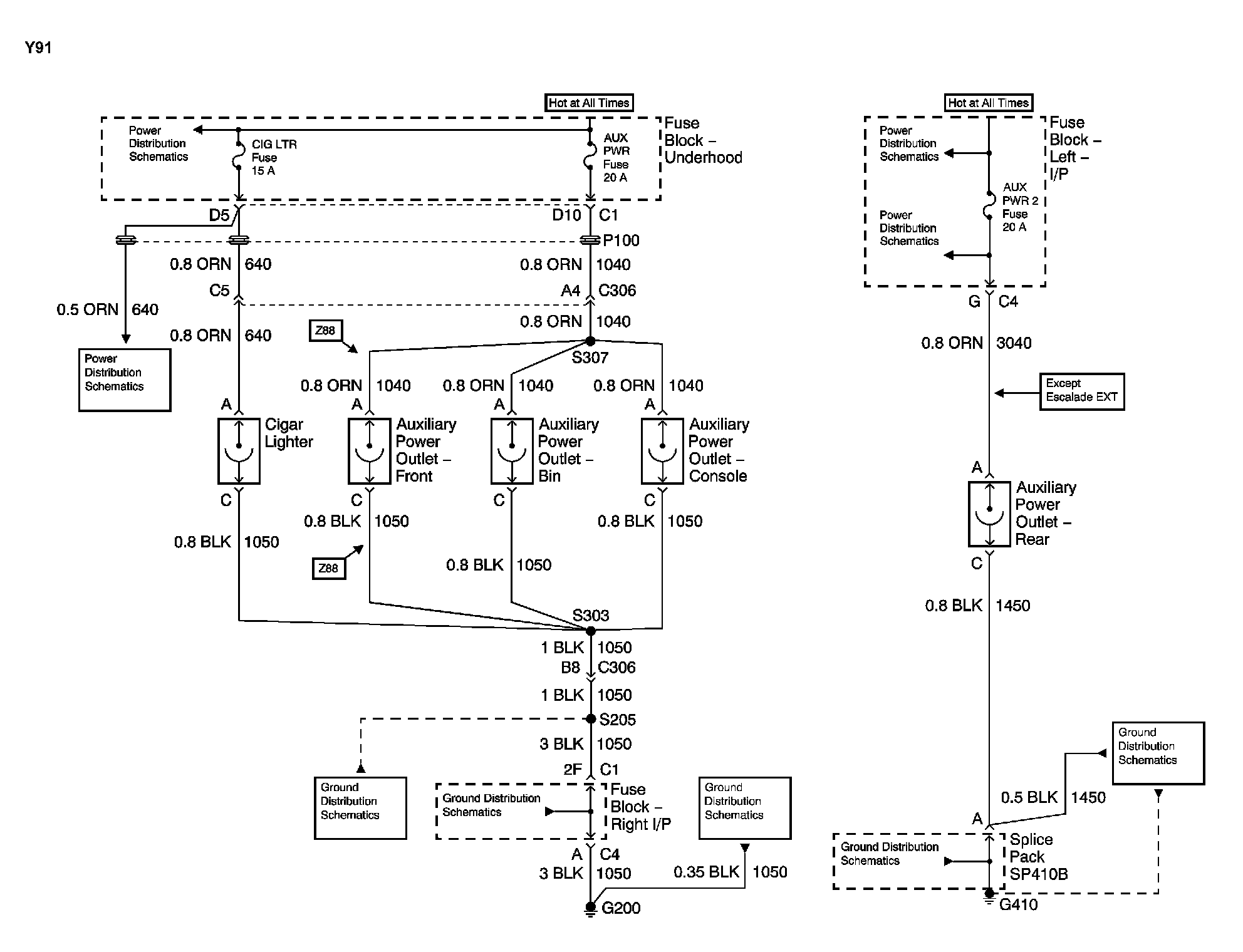

Cigar Lighter/Auxiliary Outlets Diagram 3:
