FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN Z Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
System Diagram
System Diagram

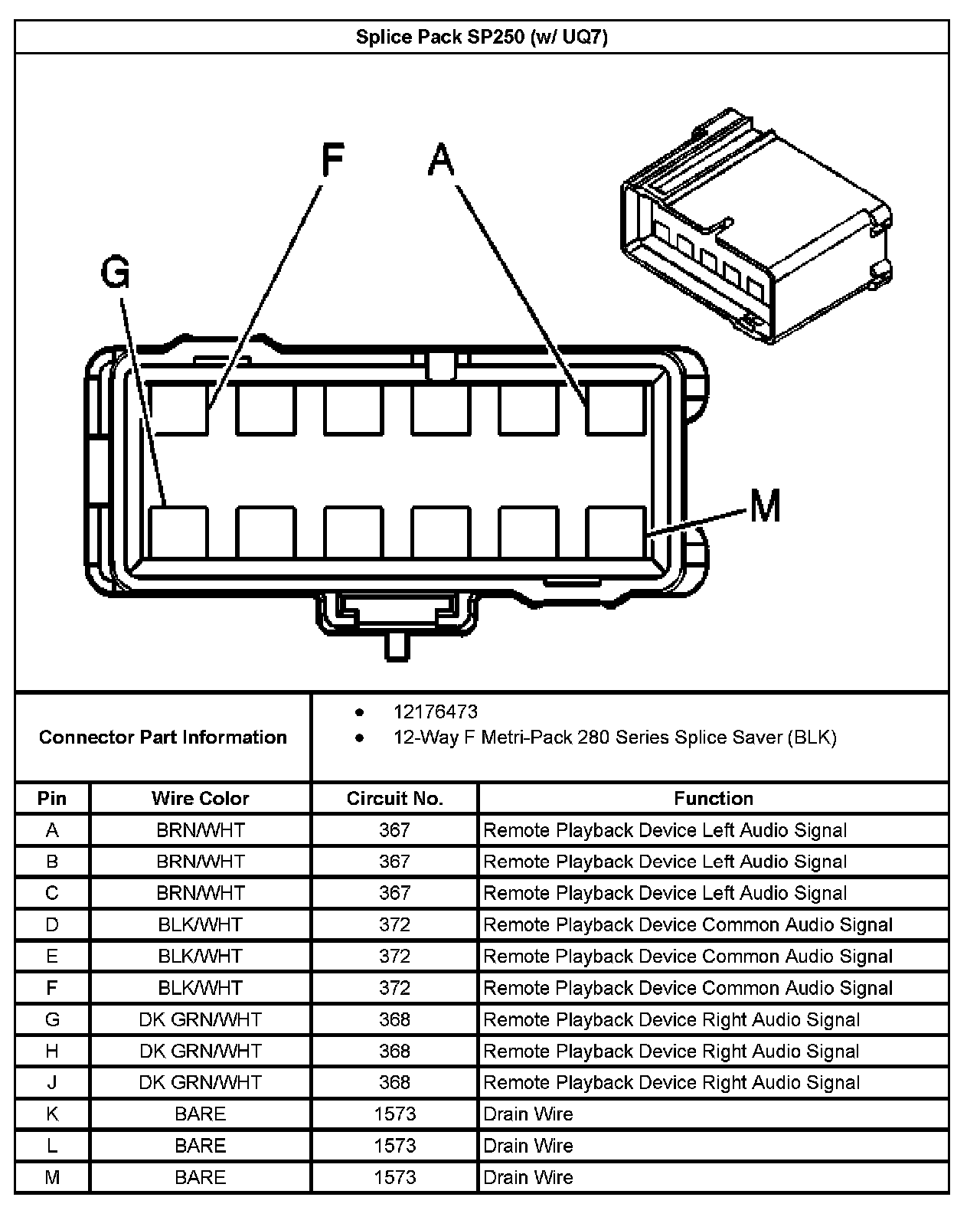

Splice Pack SP250 (With RPO Code UQ7):
