Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 2WD V8-5.3L VIN Z Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> HVAC Control Module - C2

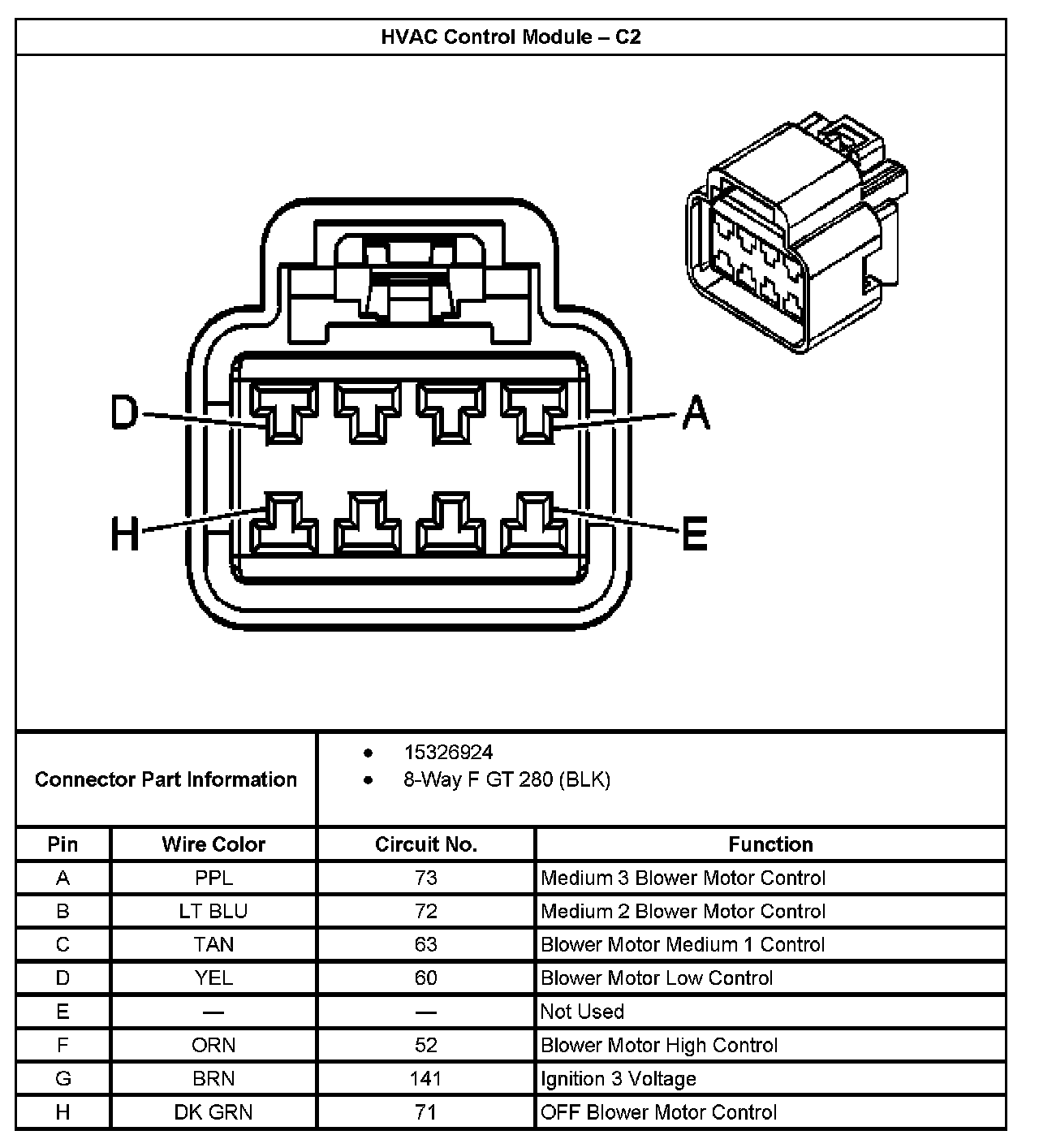

HVAC Control Module - C2

HVAC Control Module-C2:
