HVAC Control Assembly - Rear Auxiliary - With A/C
HVAC Control Assembly - Rear Auxiliary - With A/C

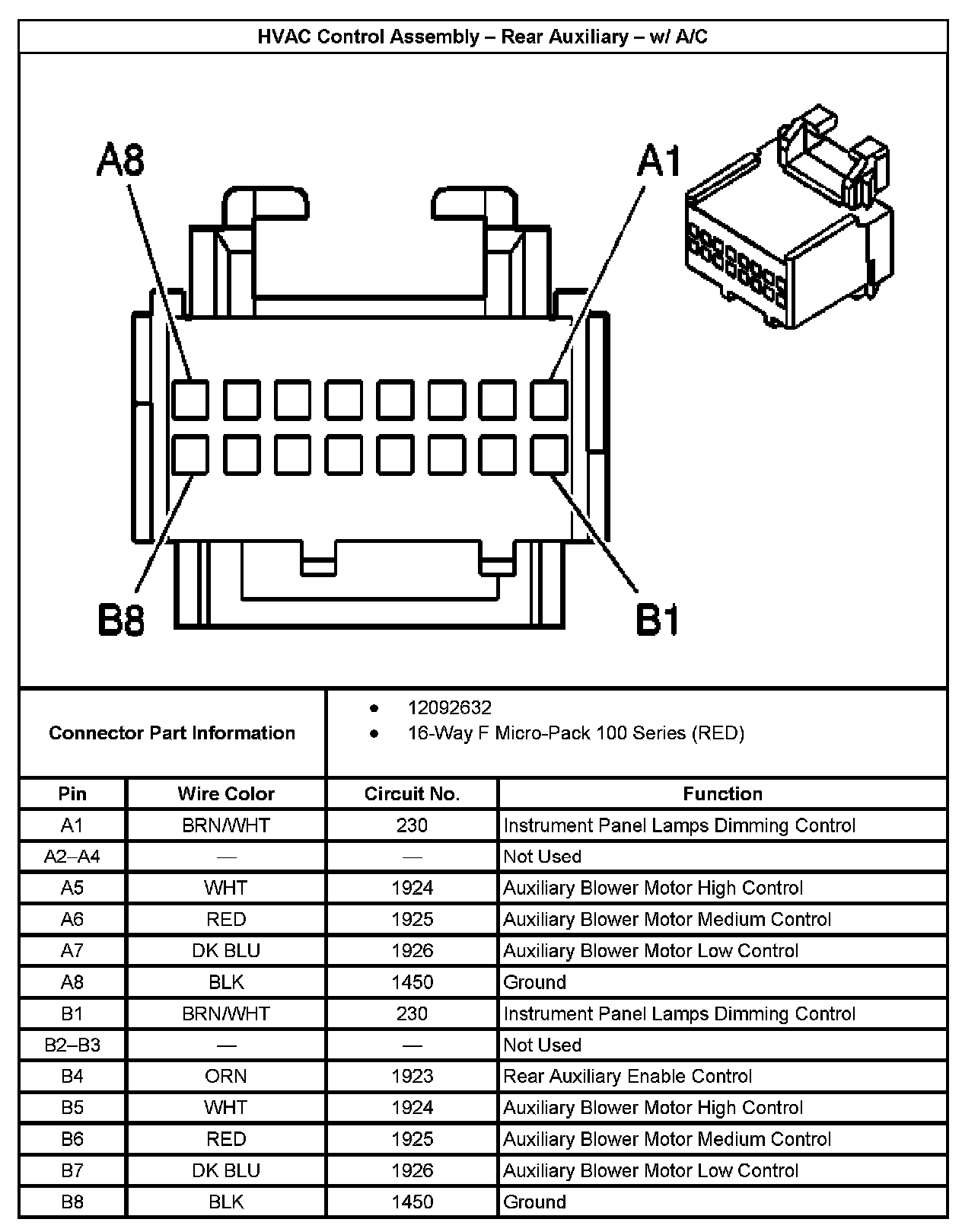

HVAC Control Assembly-Rear Auxiliary-With A/C:
