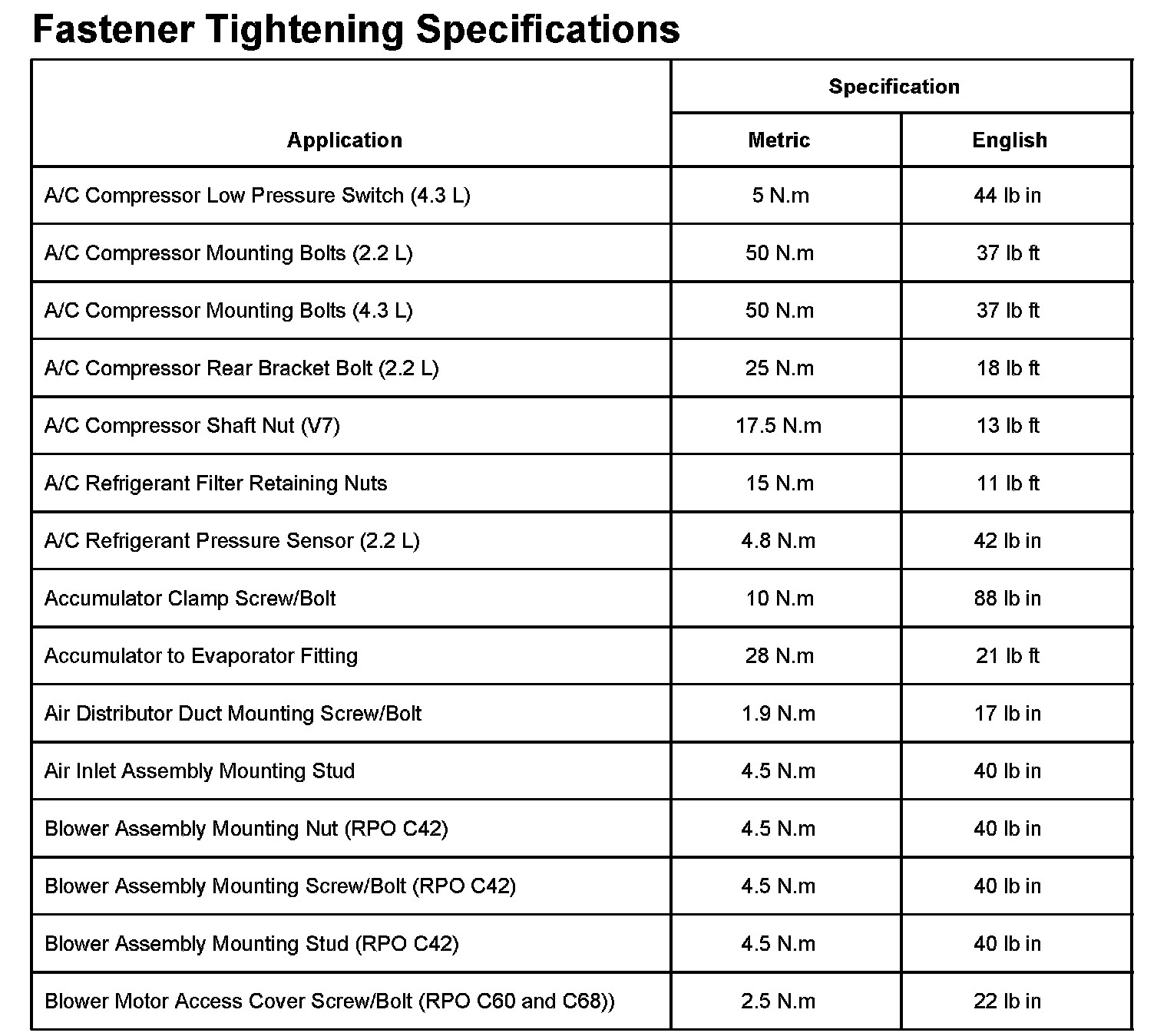

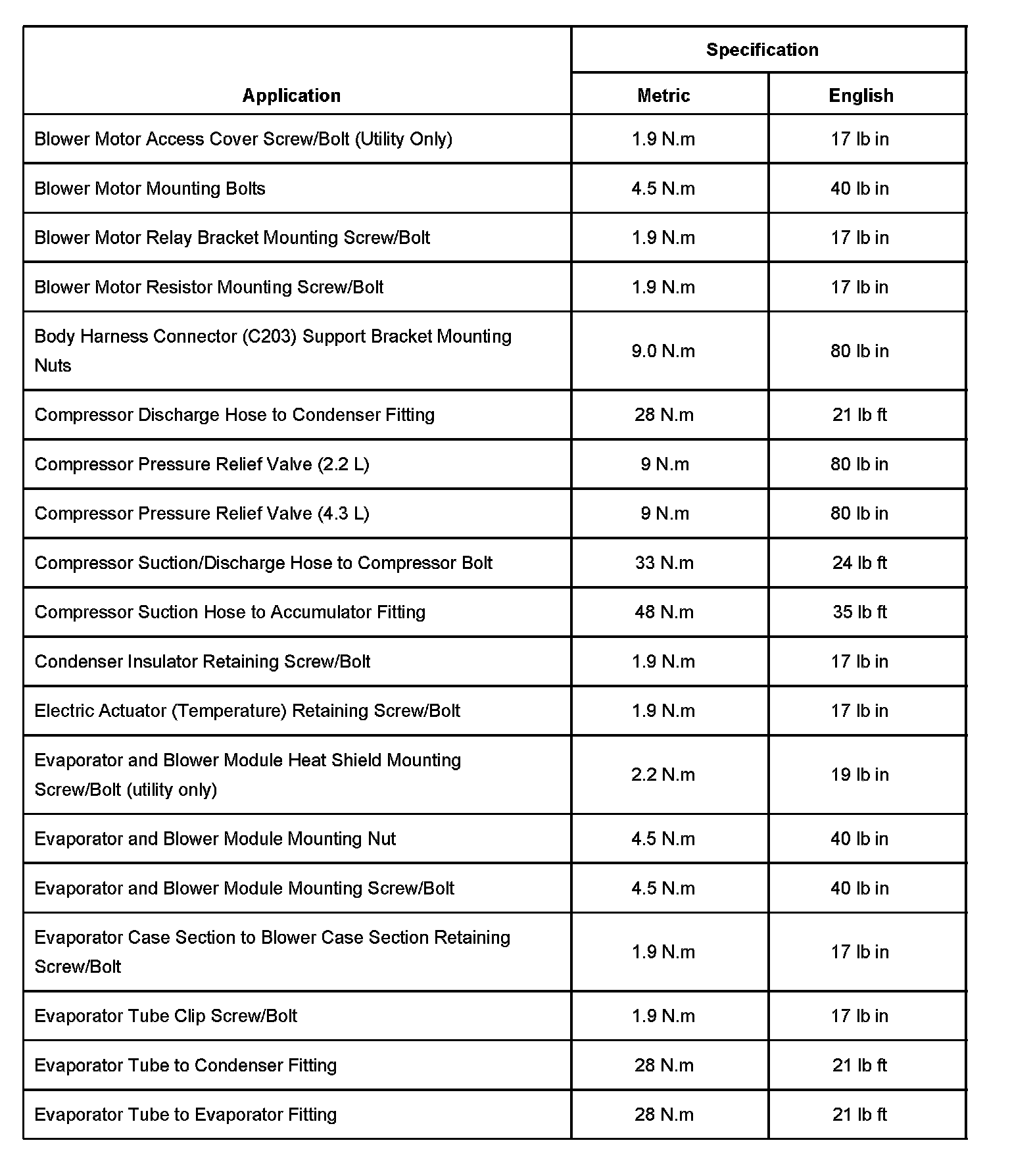

System Specifications
Heating, Ventilation and Air Conditioning 1 Of 3:
HVAC System - Manual:
Heating, Ventilation and Air Conditioning 2 Of 3:
Heating, Ventilation and Air Conditioning 3 Of 3:
