Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - All Modes

Wipers Inoperative - All Modes

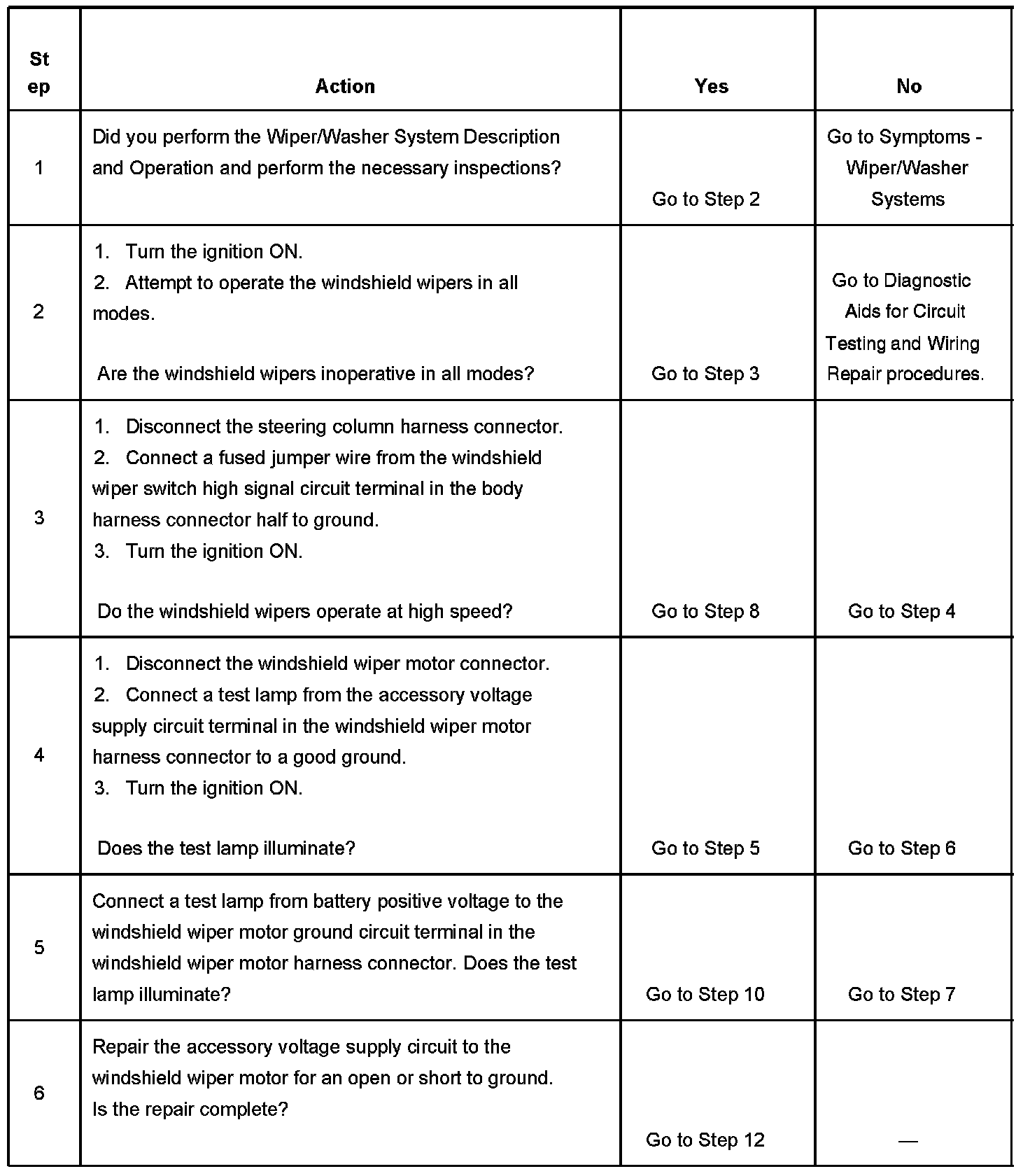

Steps 1-6:

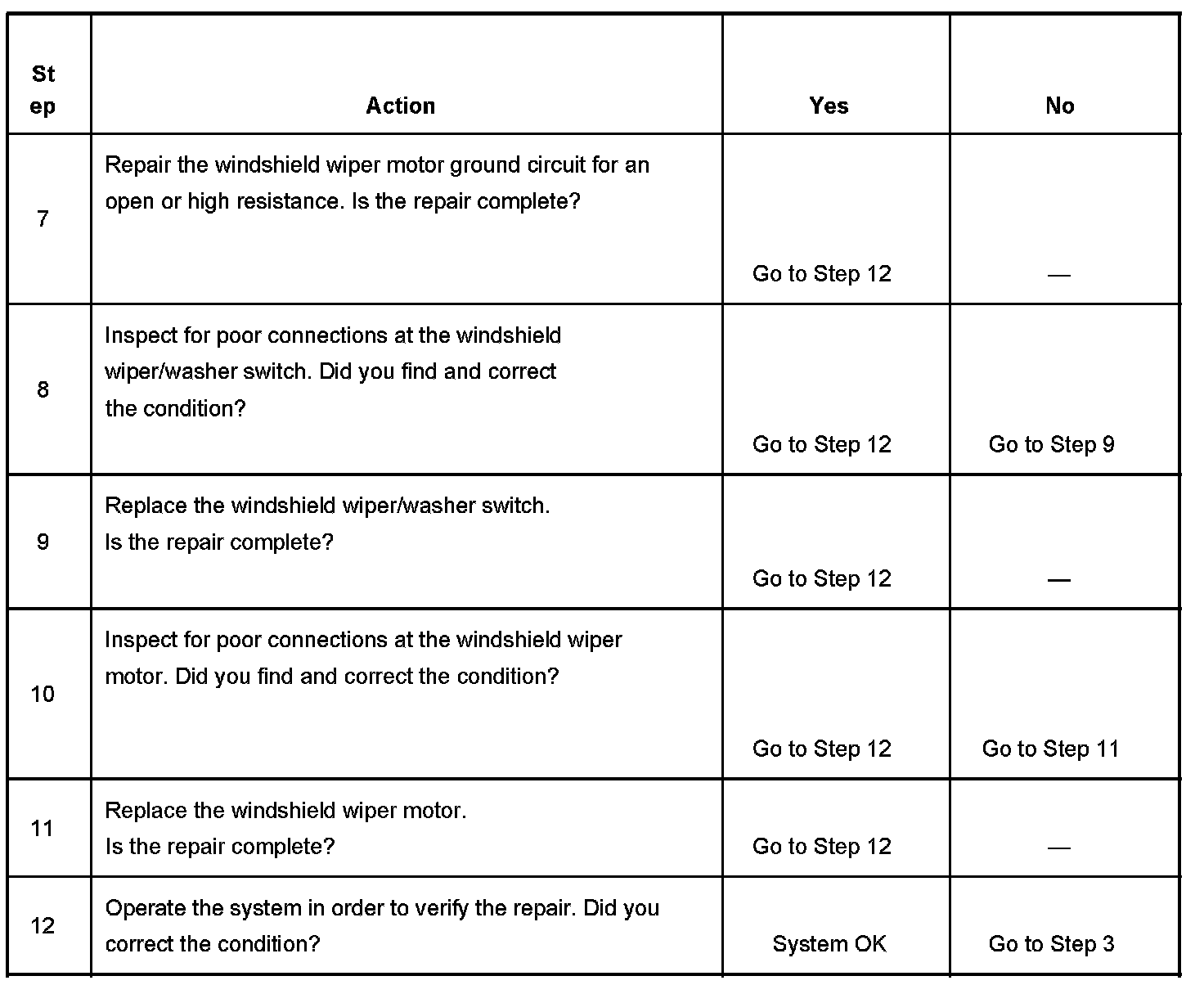

Steps 7-12:
