Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Washers Inoperative

Washers Inoperative

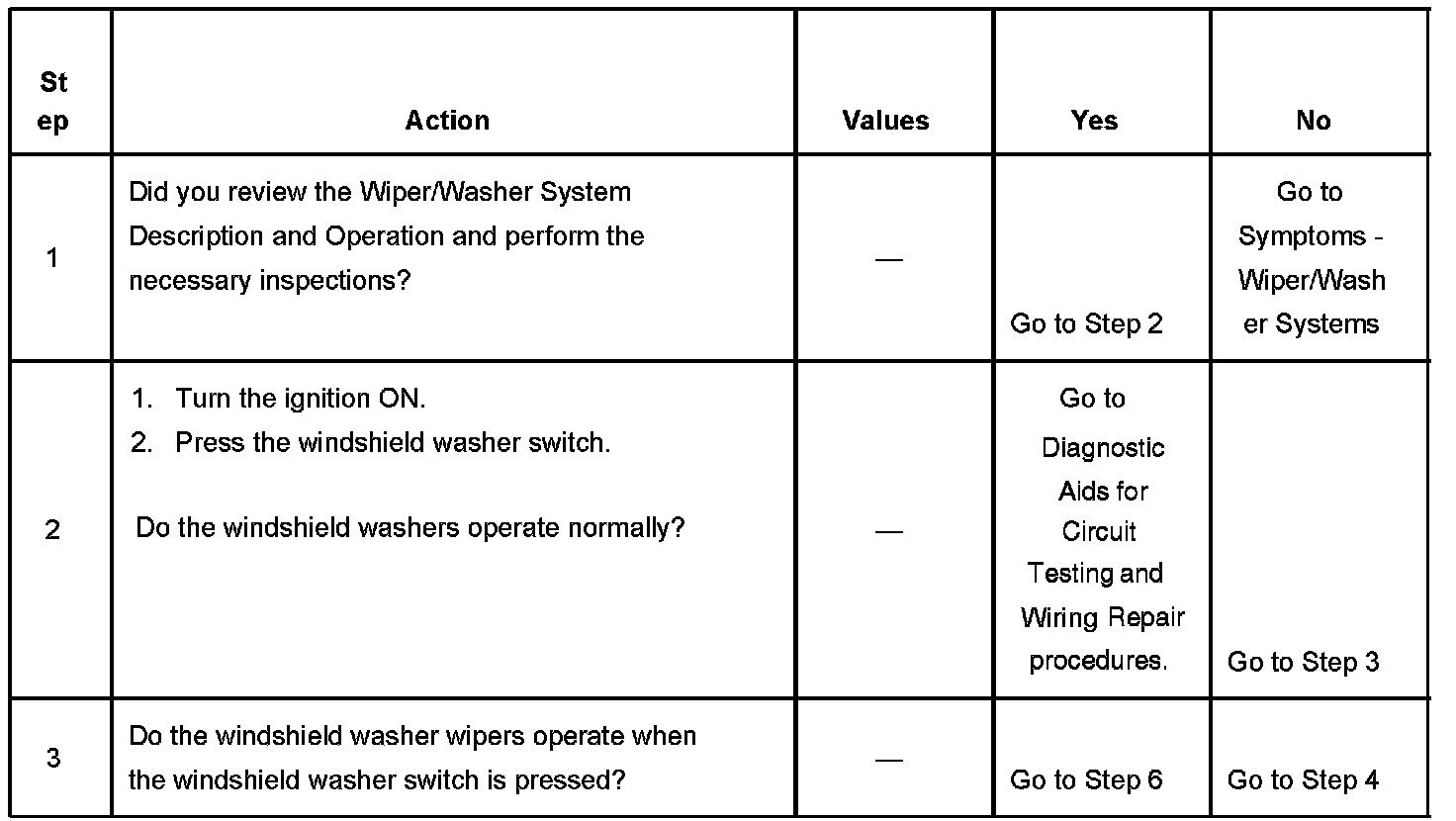

Steps 1-3:

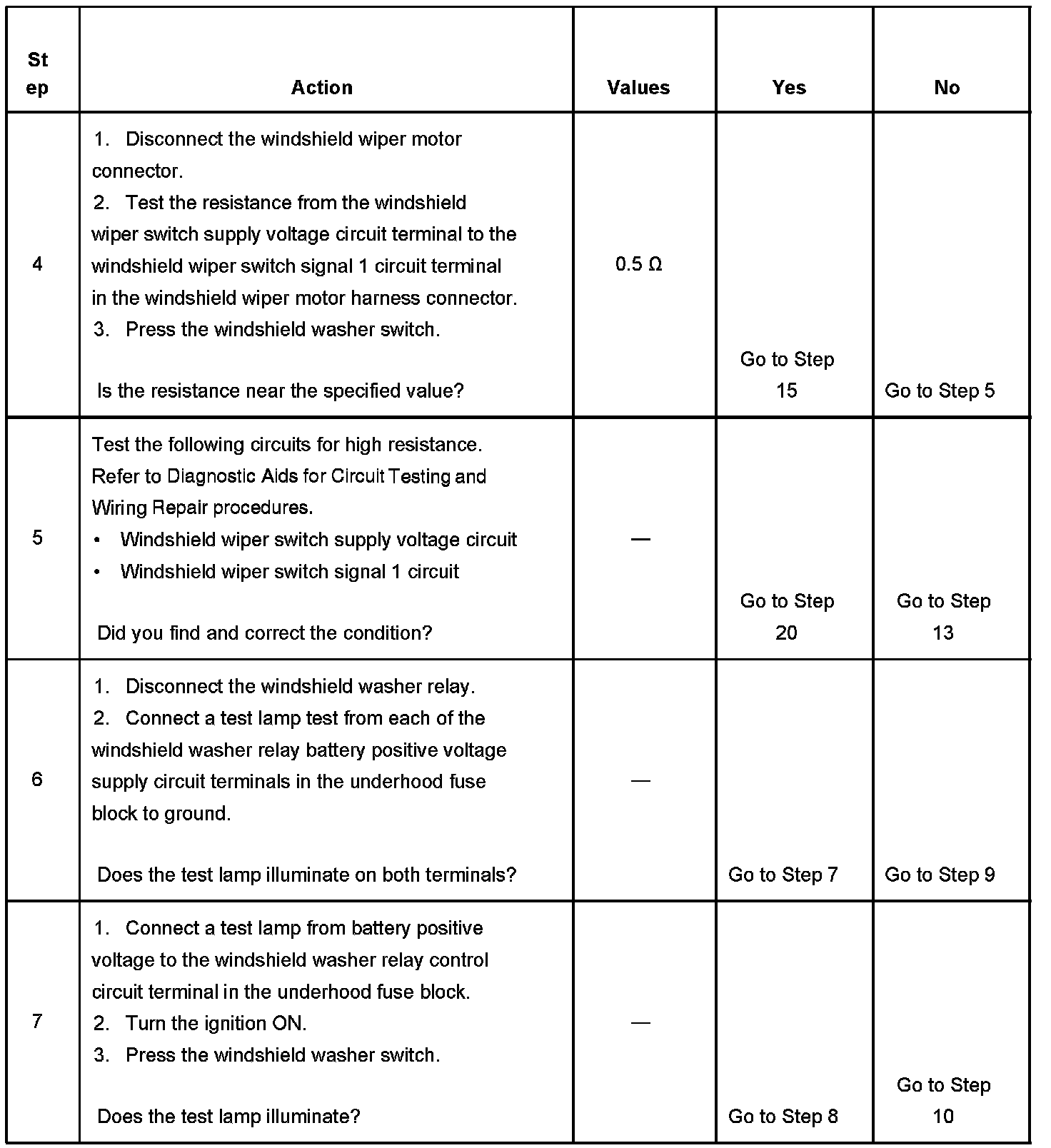

Steps 4-7:

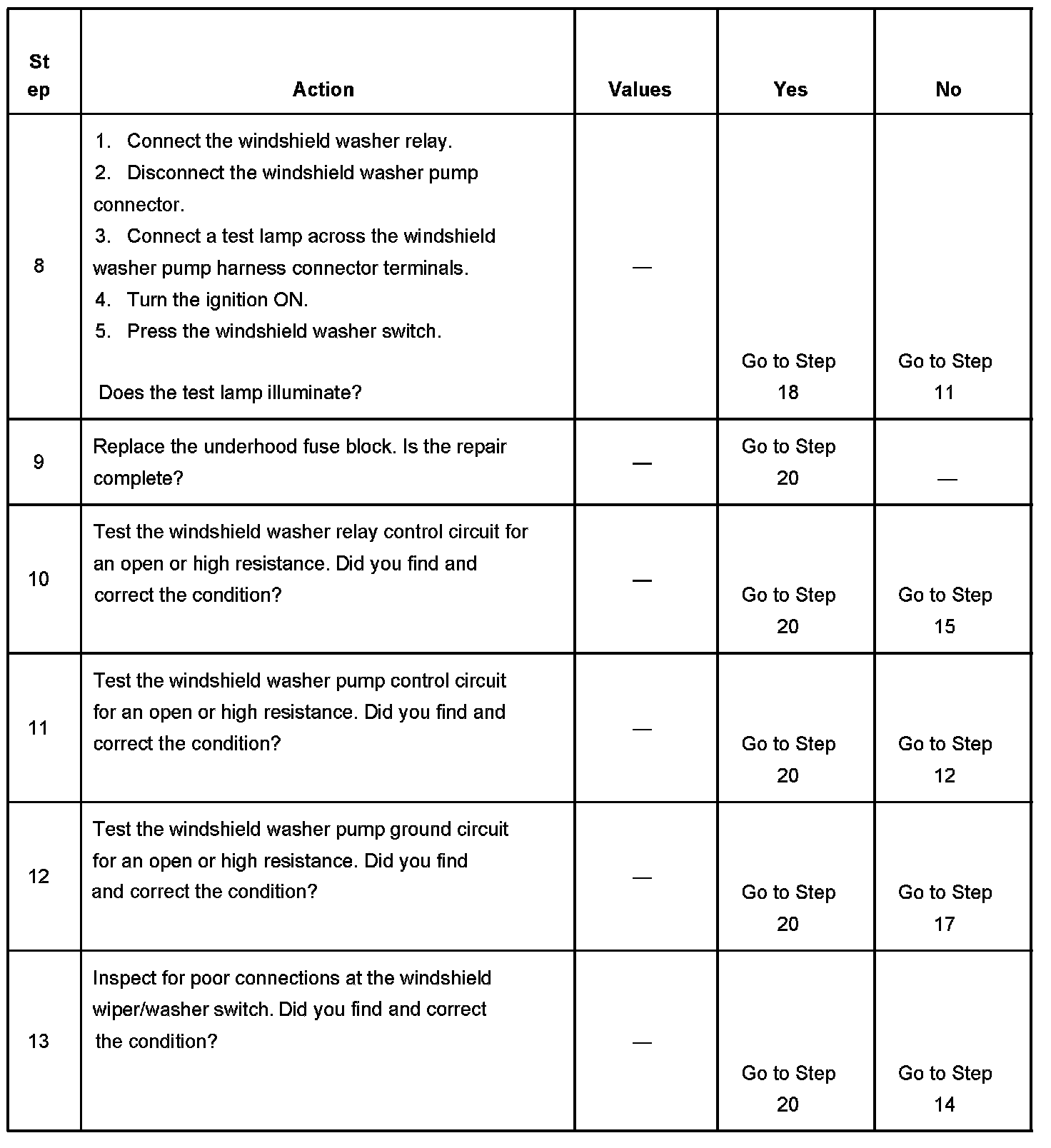

Steps 8-13:

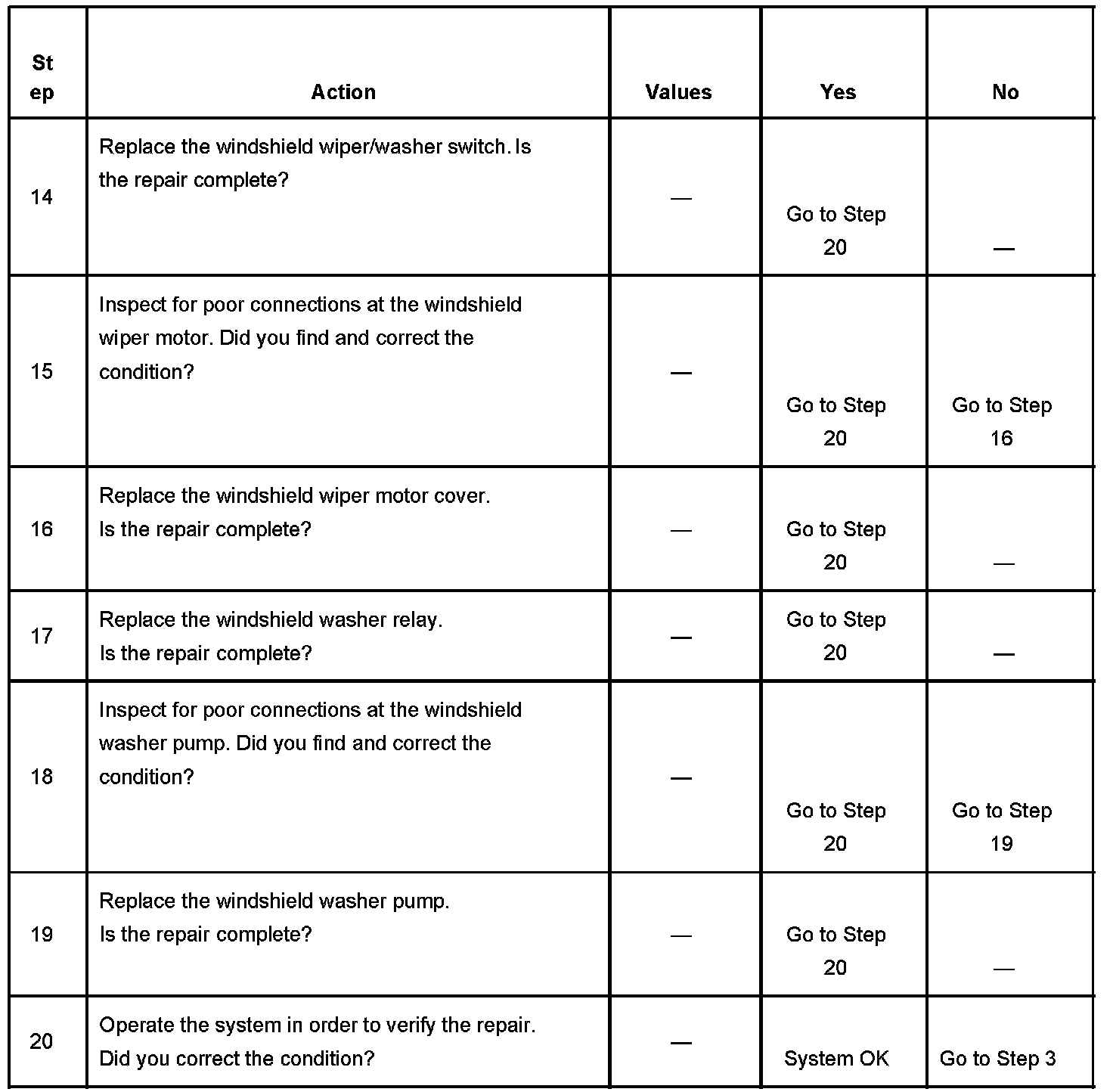

Steps 14-20:
