Front Door Window Regulator: Service and Repair

Module Replacement - Power Window

Removal Procedure

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .
2. Remove the front door speaker. Refer to Speaker Replacement - Front Door in Entertainment.
3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair.
4. Lower the window.
5. Remove the inner window sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner () .
6. Remove the outer window sealing strip. Refer to Sealing Strip Replacement - Outer Belt (Sealing Strip Replacement - Outer Belt) .




7. Remove the front and rear run channel from the door. Refer to Window Run Channel Replacement (Service and Repair)
8. Remove the inside handle from the door. Refer to Door Handle Replacement - Inside (Door Handle Replacement) .

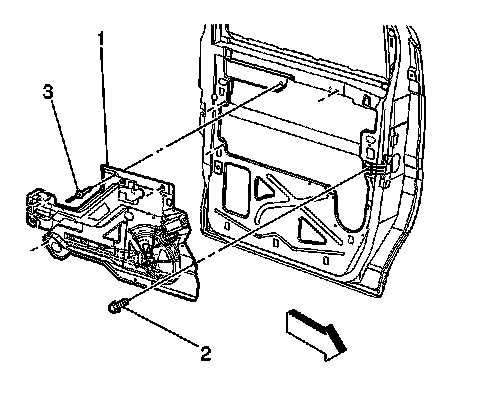

9. Remove the lock rods from the front door module (1).
10. Remove the electrical harness from the front door module (1).
11. Remove the rivets (3), that retain the front door module (1) to the door, with an appropriate drill and drill bit.
12. Remove the front door module (1) from the door.



Installation Procedure





1. Install the front door module (1) to the door.
2. Rivet (3) the front door module (1) to the door.
3. Install the electrical harness to the front door module (1).
4. Install the lock rods to the front door module.
5. Install the inside handle to the door. Refer to Door Handle Replacement - Inside (Door Handle Replacement) .
6. Install the front and rear run channel to the door. Refer to Window Run Channel Replacement (Service and Repair) .
7. Install the inner window sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner () .
8. Install the outer window sealing strip. Refer to Sealing Strip Replacement - Outer Belt (Sealing Strip Replacement - Outer Belt) .
9. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair.
10. Install the front door speaker. Refer toSpeaker Replacement - Front Door in Entertainment.
11. Install the front door trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .
