Connector Views

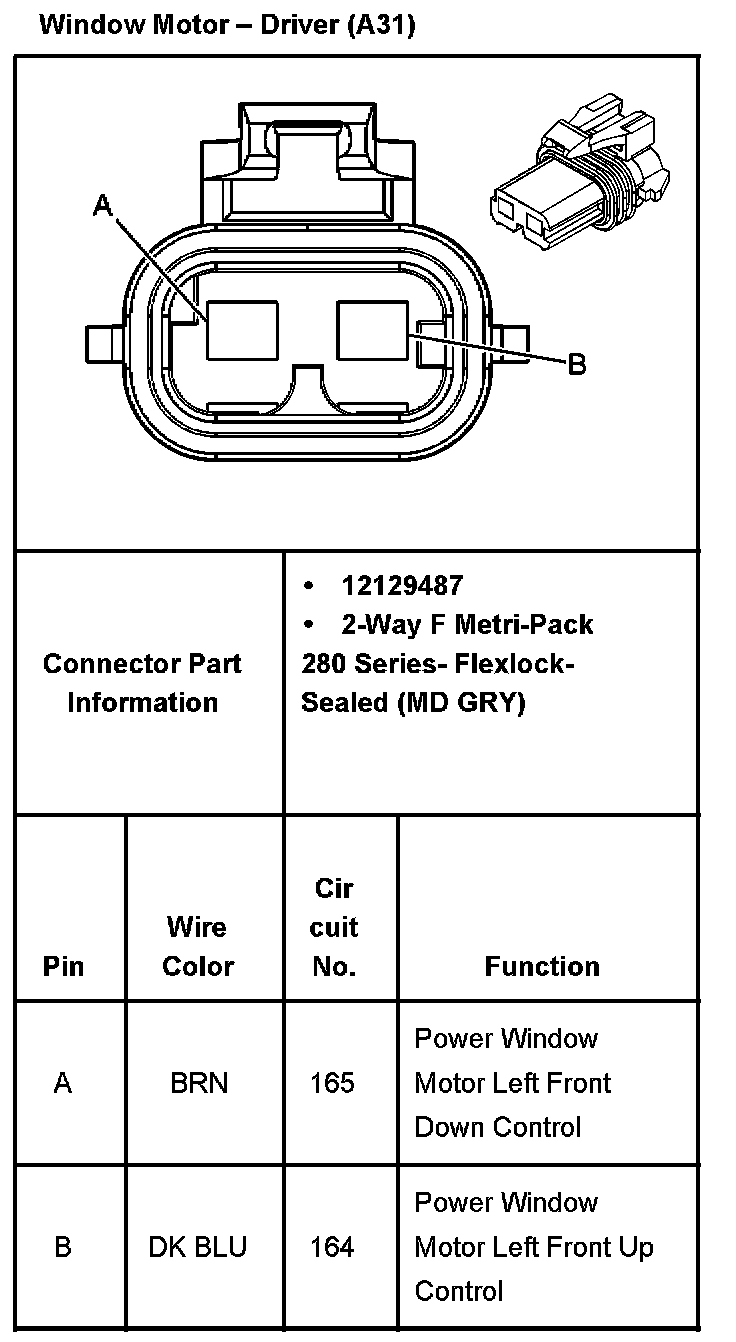

Window Motor - Driver With RPO Code A31:

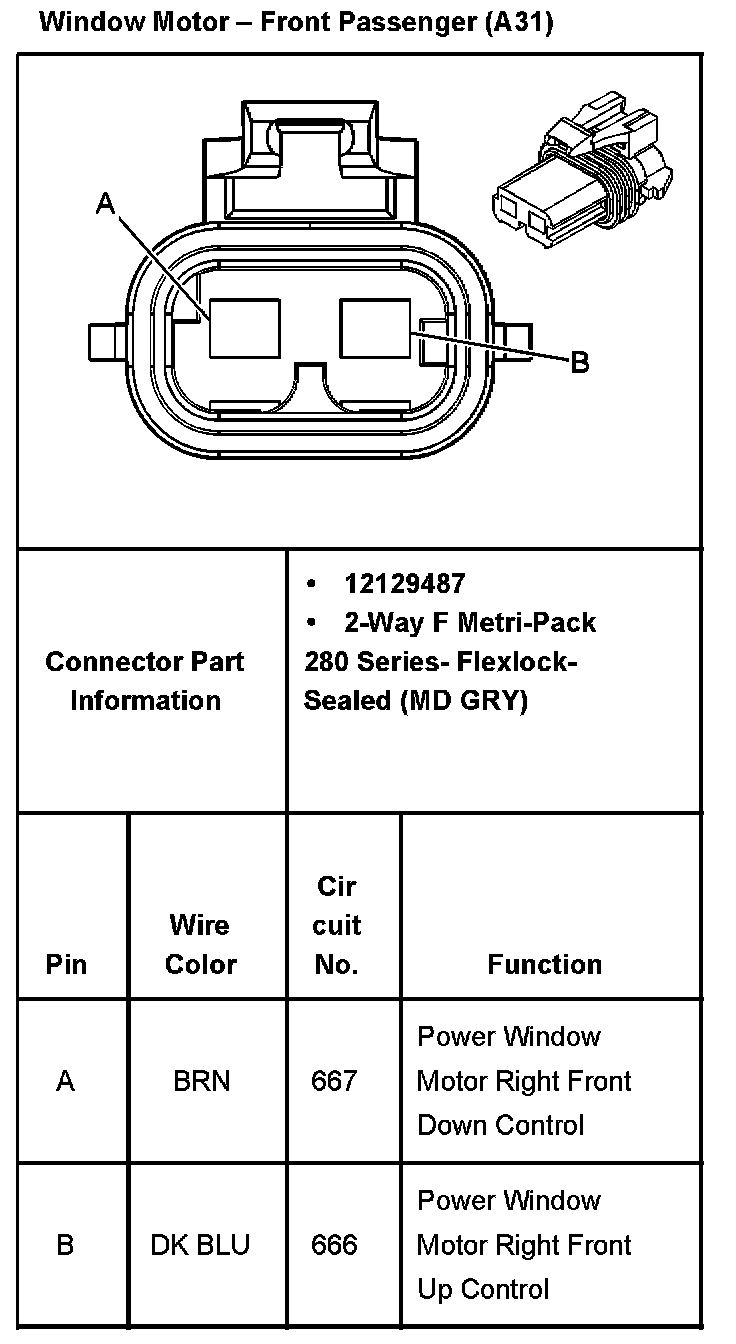

Window Motor - Front Passenger With RPO Code A31:
