Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Component Tests and General Diagnostics >> Strut or Shock Absorbers On-Vehicle Testing

Strut or Shock Absorbers On-Vehicle Testing

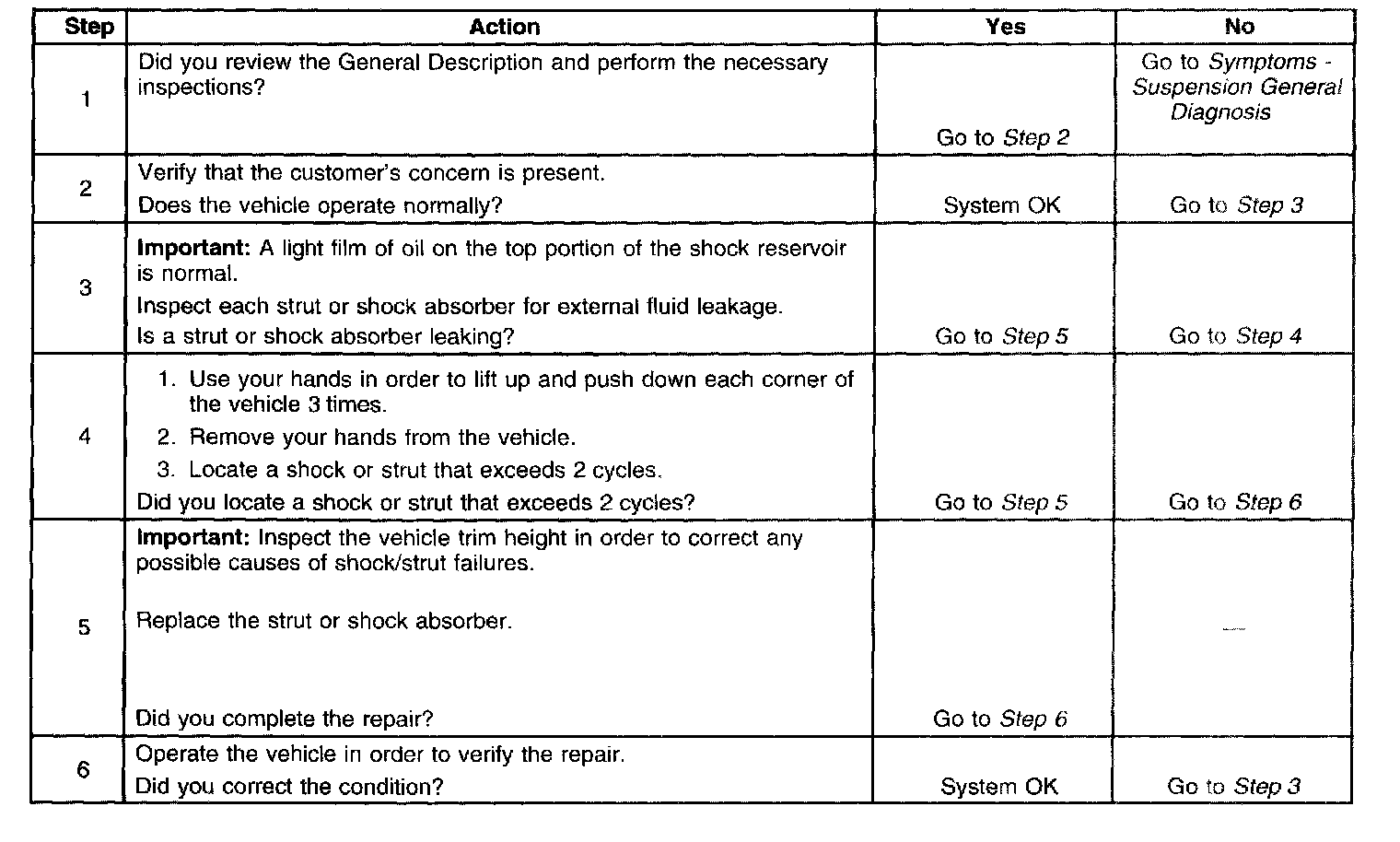

Struts or Shock Absorbers on-Vehicle Testing Step 1 - 6:
