Starter Solenoid Does Not Click

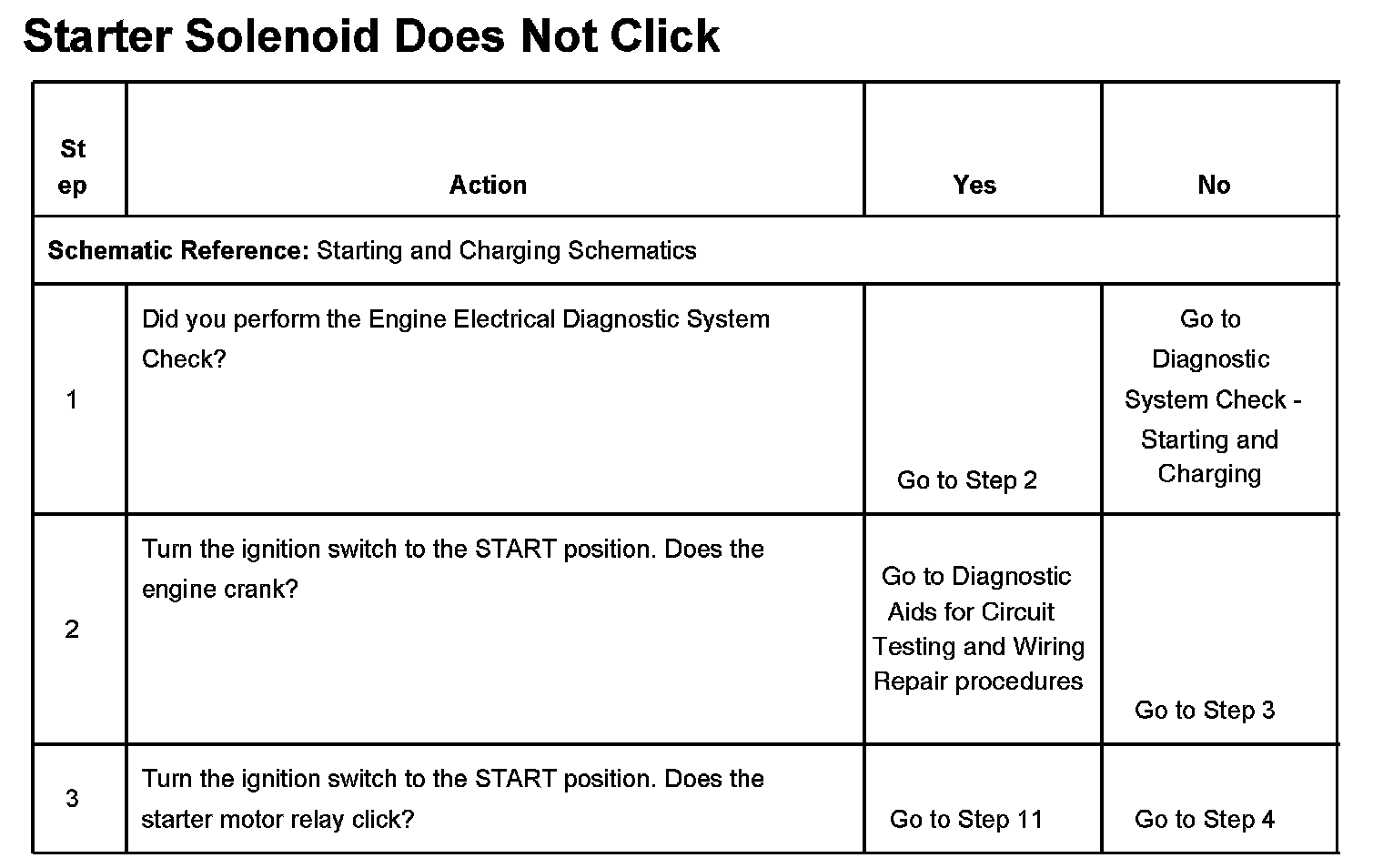

Steps 1-3:

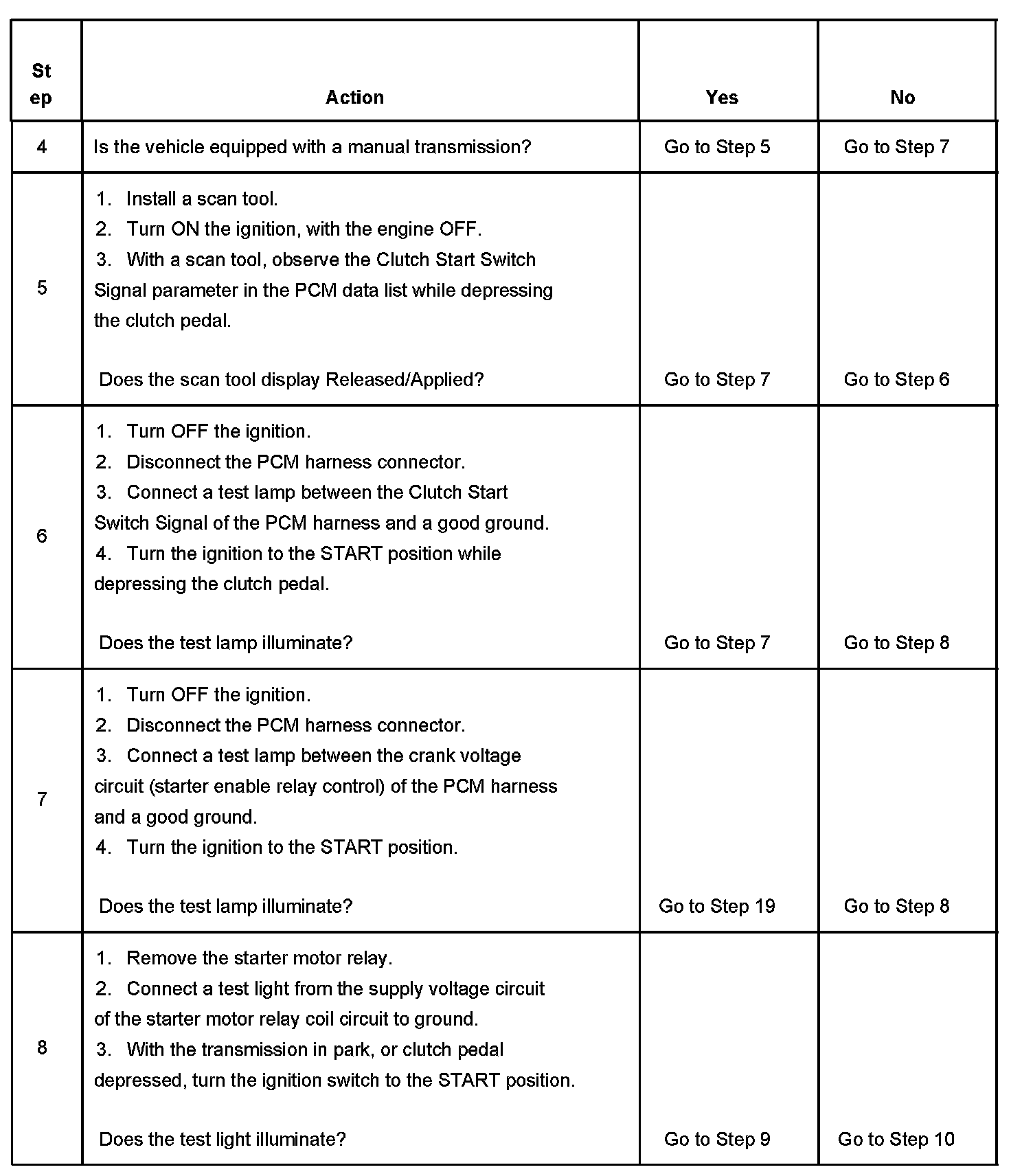

Steps 4-8:

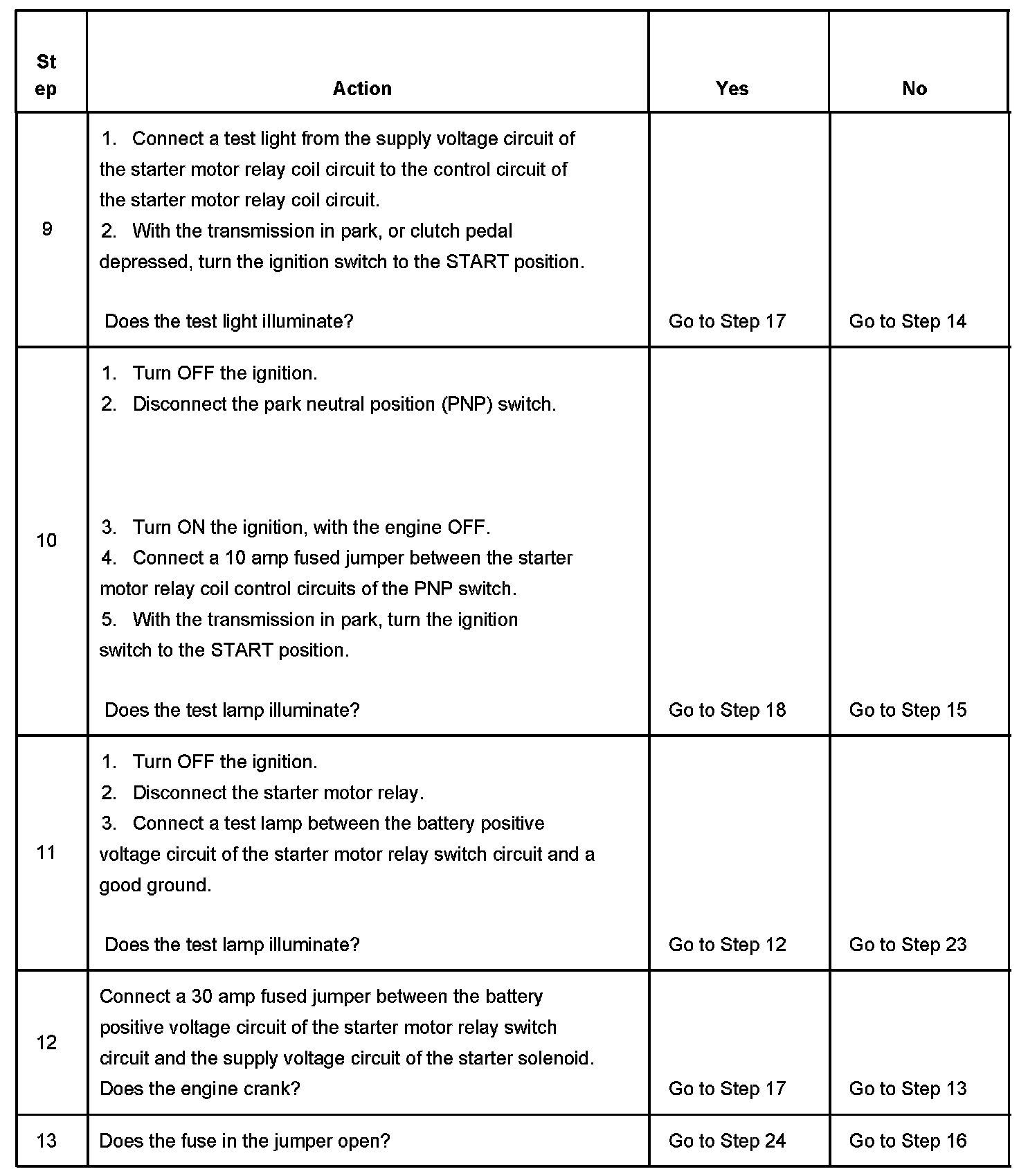

Steps 9-13:

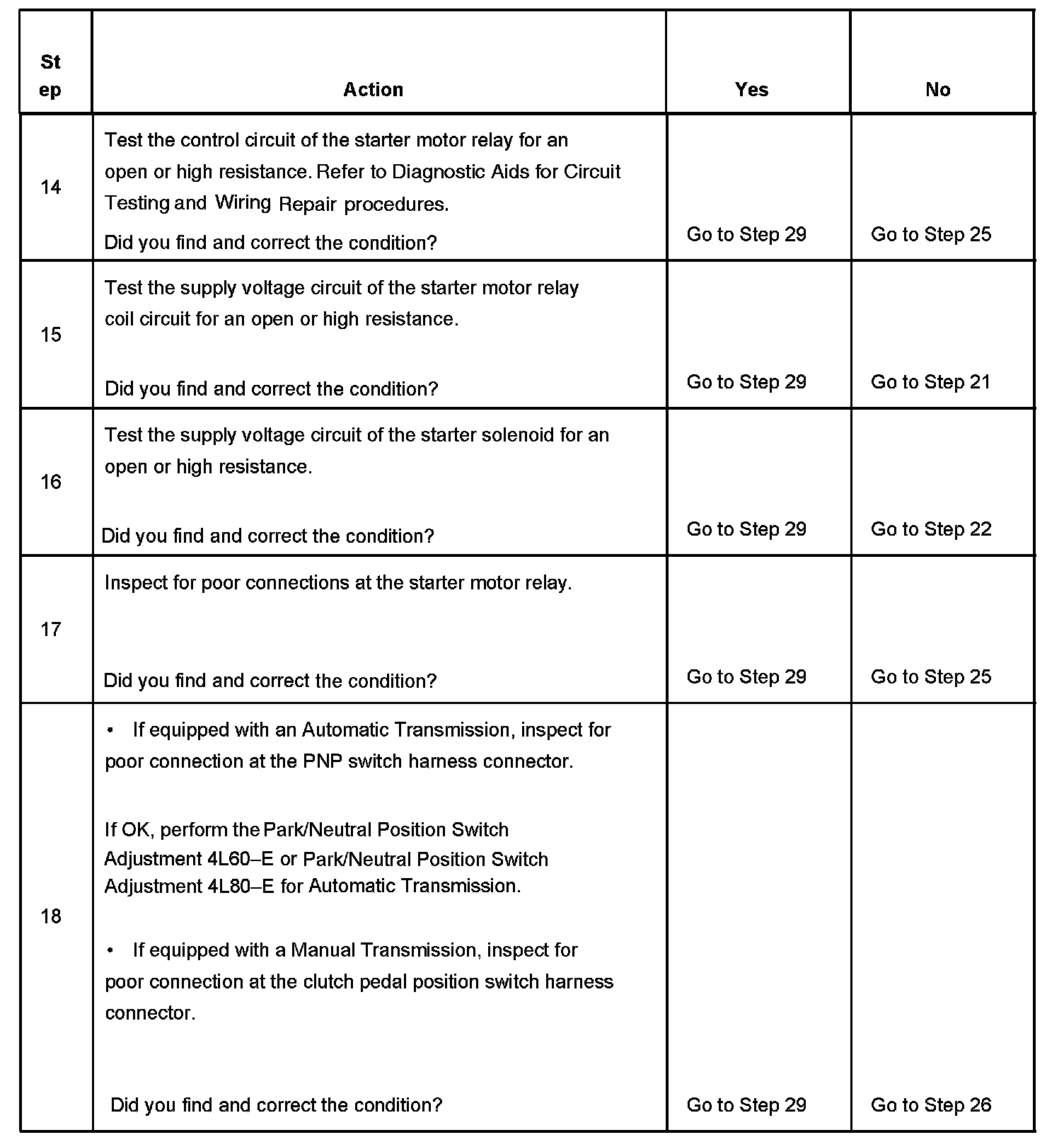

Steps 14-18:

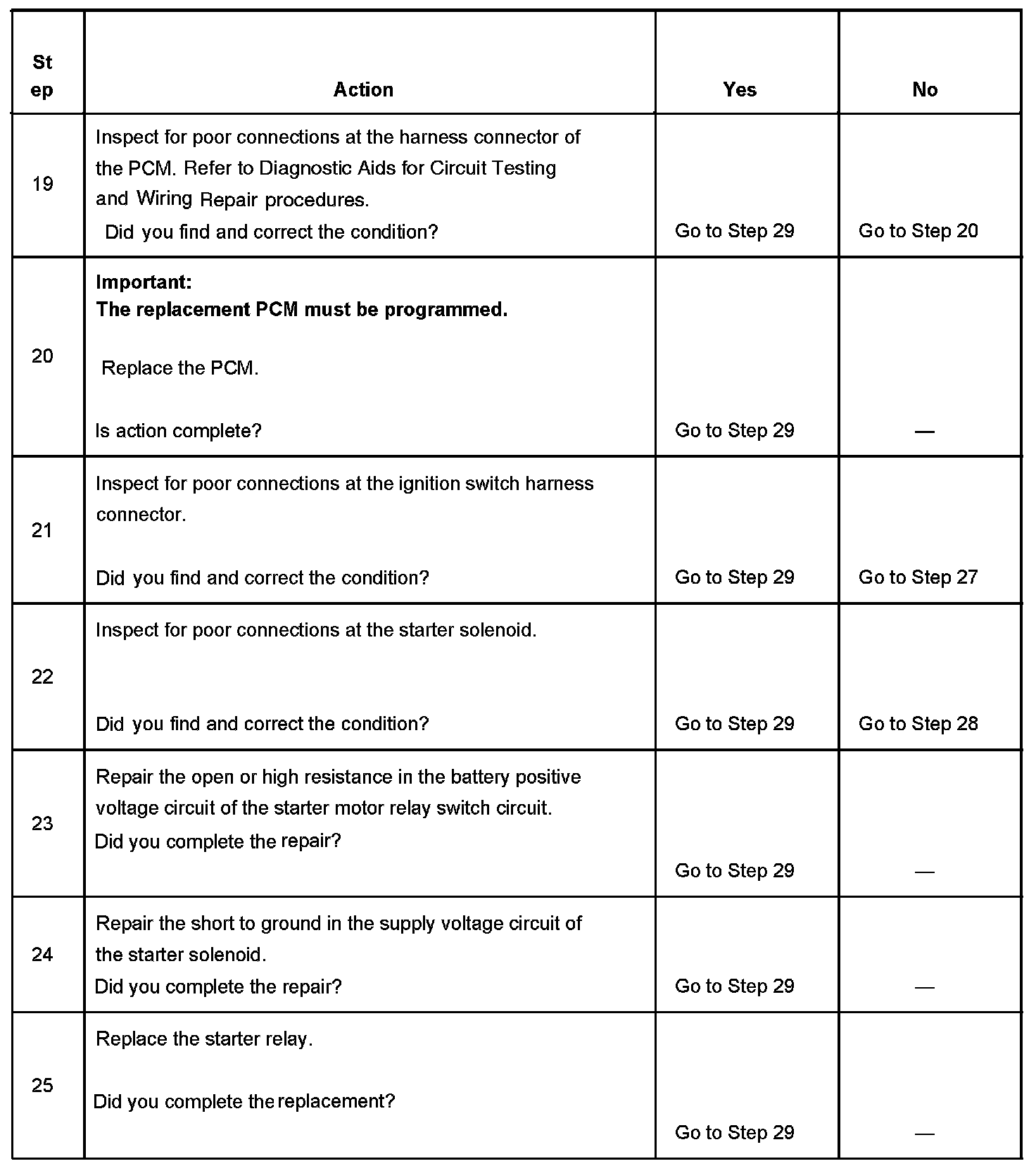

Steps 19-25:

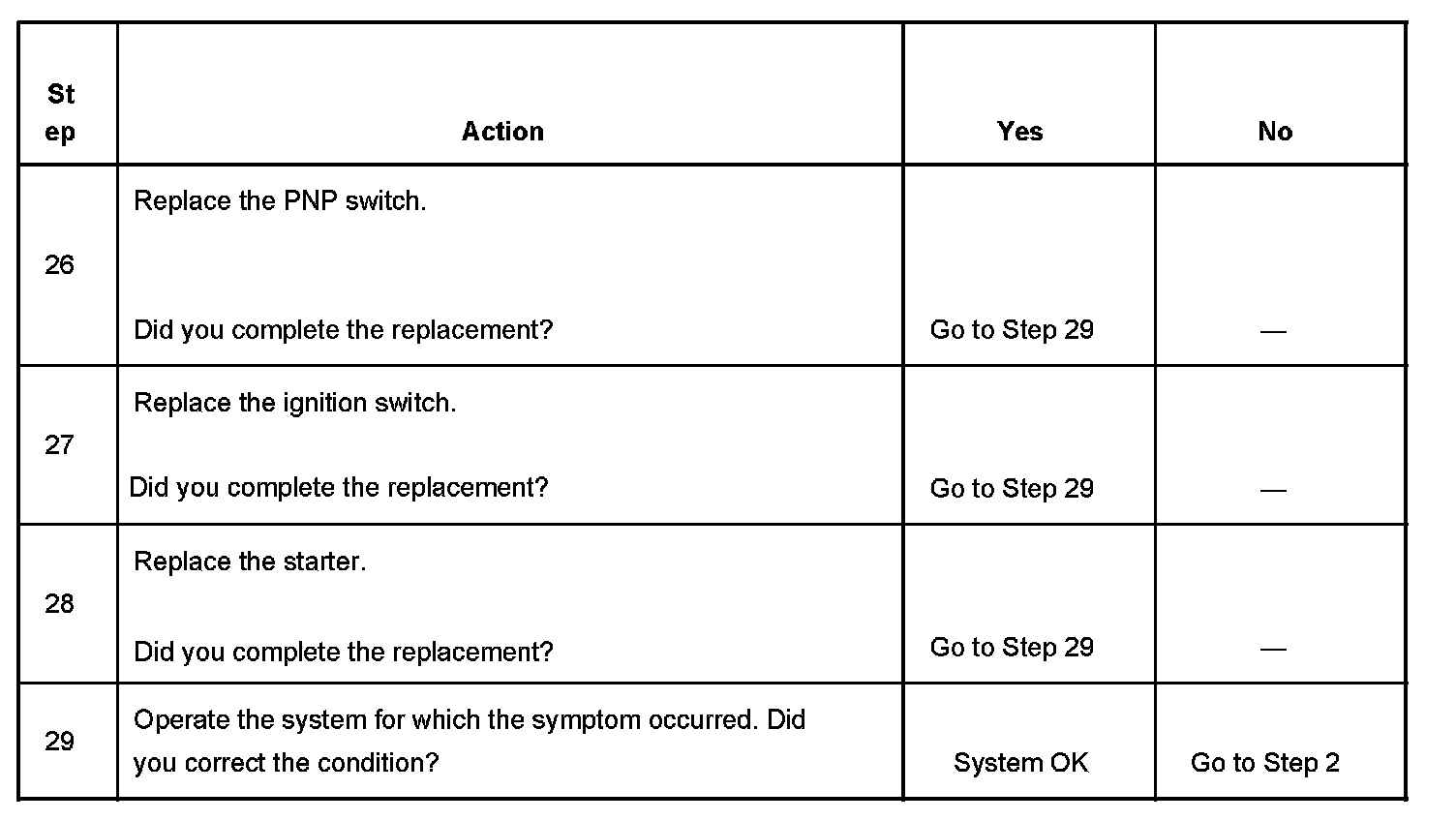

Steps 26-29:
