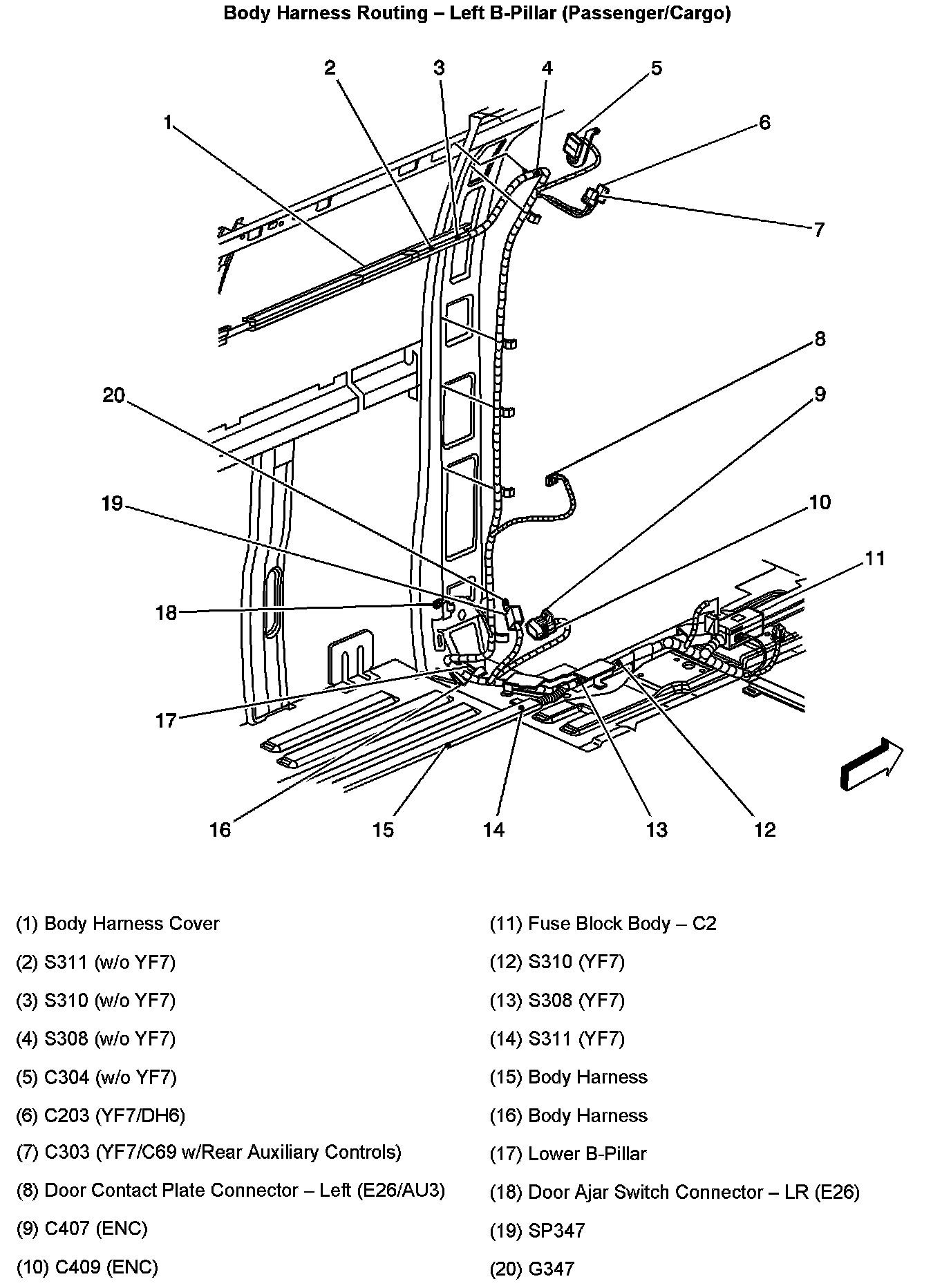

Body Harness Routing - Left B-Pillar (Passenger/Cargo)

Body Harness Routing - Left B-Pillar (Passenger/Cargo):
