Generator Bracket Replacement

REMOVAL PROCEDURE




1. Remove the generator.
2. Remove the power steering pump.

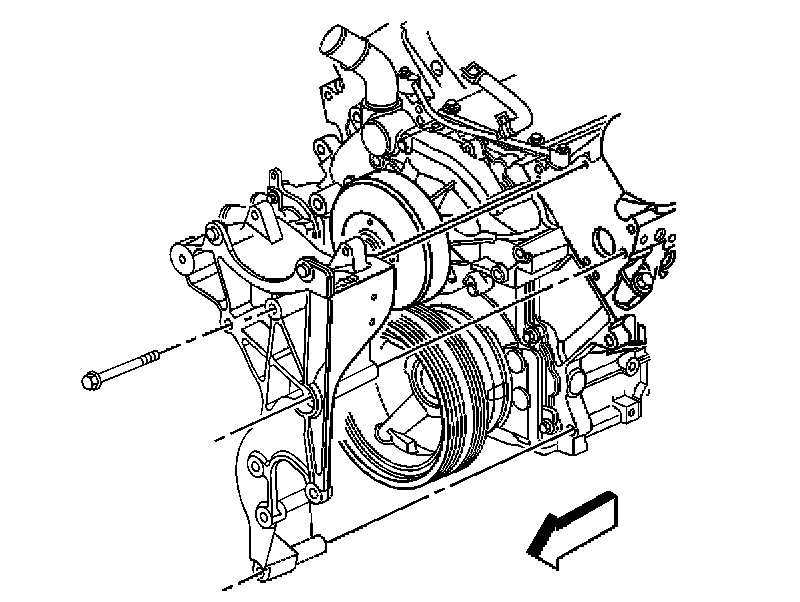

3. Remove the generator bracket bolts.
4. Remove the generator bracket.

INSTALLATION PROCEDURE




1. Install the generator bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

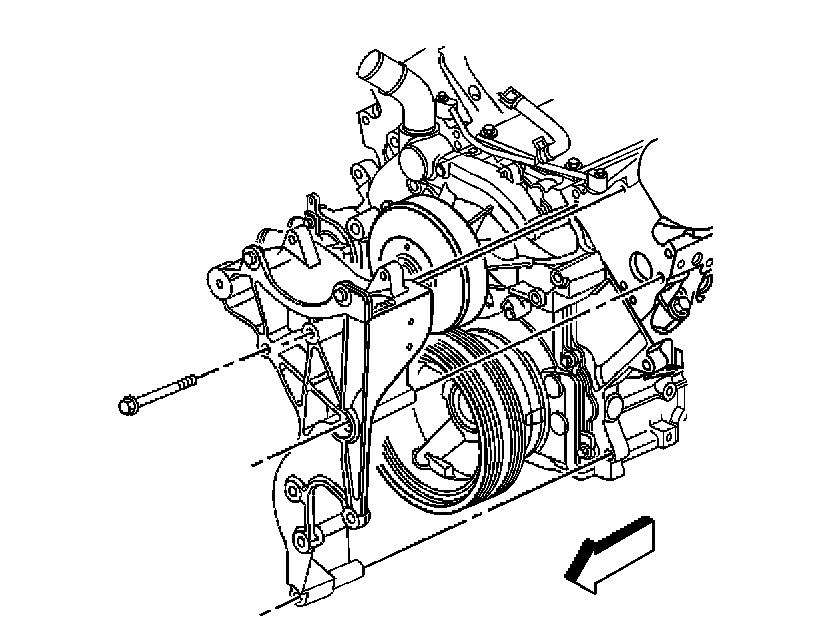

2. Install the generator bracket bolts.

Tighten
Tighten the generator bracket bolts to 50 N.m (37 lb ft).

3. Install the power steering pump.
4. Install the generator.
