FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2003
>>
Express 1/2 Ton Van AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Rotor/Disc
Brake Rotor/Disc

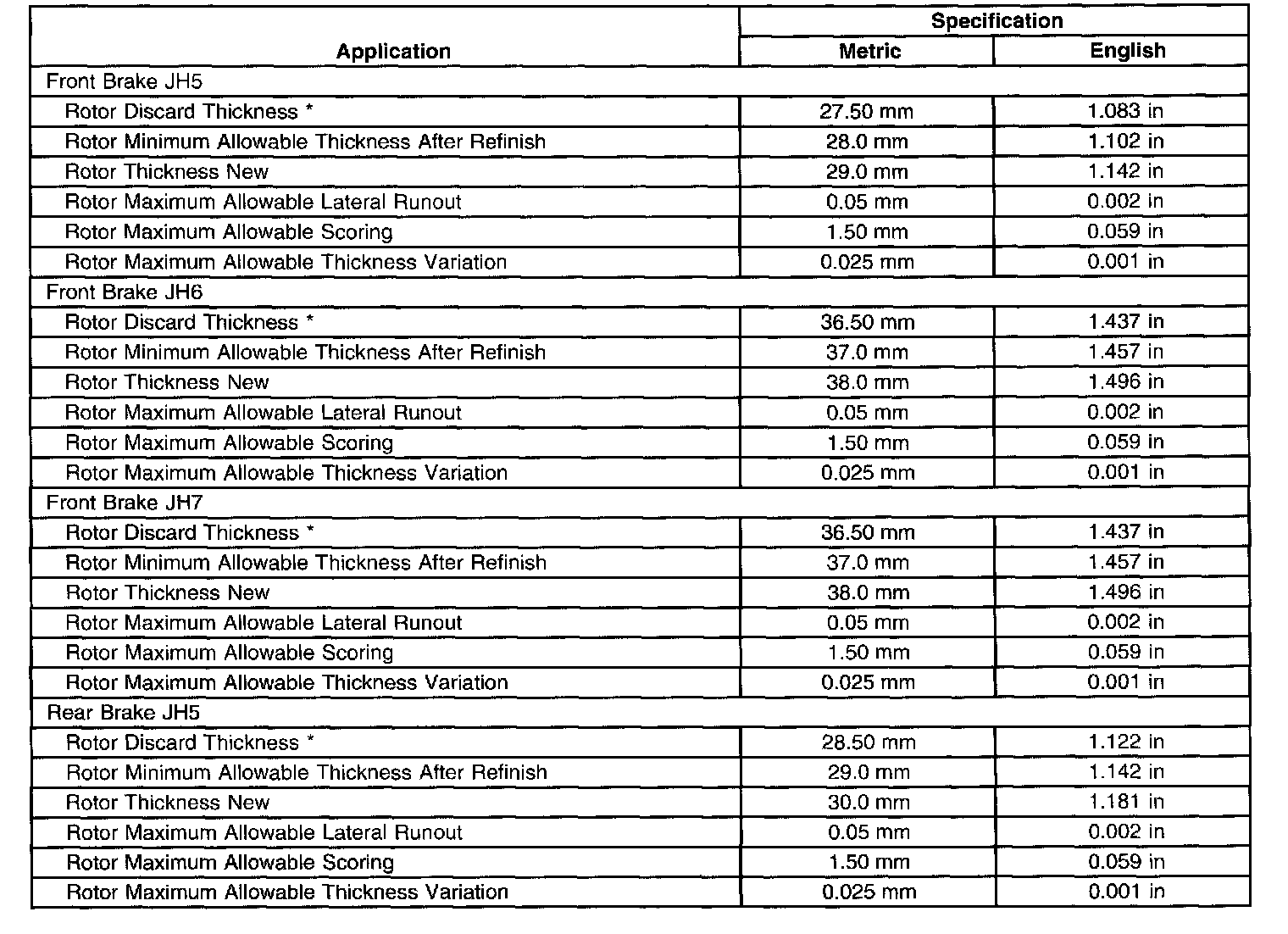

Disc Brake Component Specifications / Part 1 Of 2:

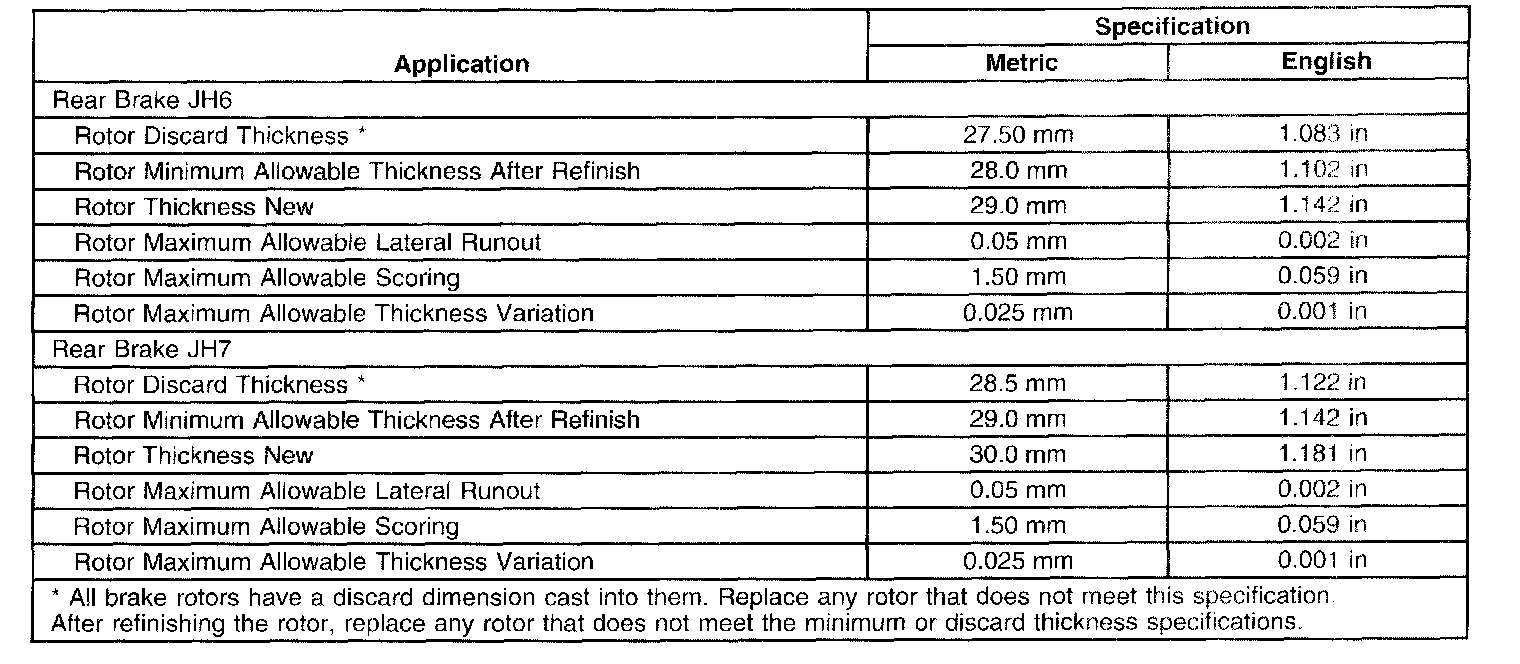

Disc Brake Component Specifications / Part 2 Of 2:
