Brake Fluid Level Sensor/Switch: Service and Repair

Master Cylinder Fluid Level Sensor Replacement

Removal Procedure







1. Remove the driver side upper fender support.

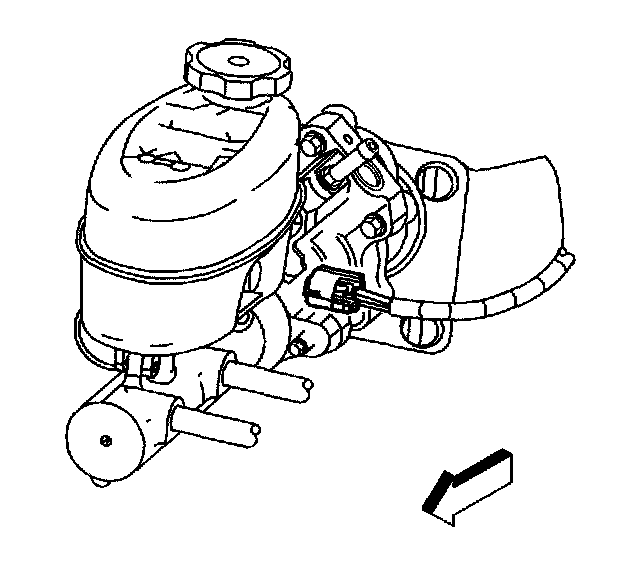

2. Disconnect the electrical connector from the fluid level sensor.

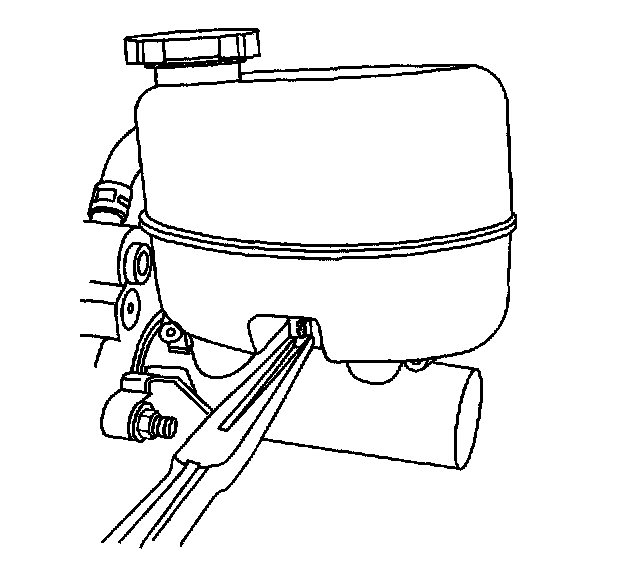

3. Use need nose pliers to compress the locking tabs on the back side of the sensor.







4. Remove the sensor from the master cylinder.



Installation Procedure

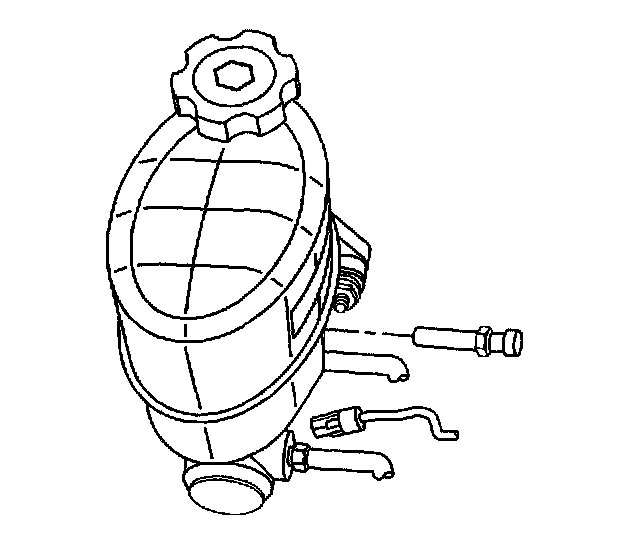

1. Install the sensor to the master cylinder.







2. Connect the electrical connector to the fluid level sensor.
3. Install the driver side upper fender support.
