Fuel Pump and Sender Assembly (With RPO Code NE7)
Fuel Pump and Sender Assembly (With RPO Code NE7)

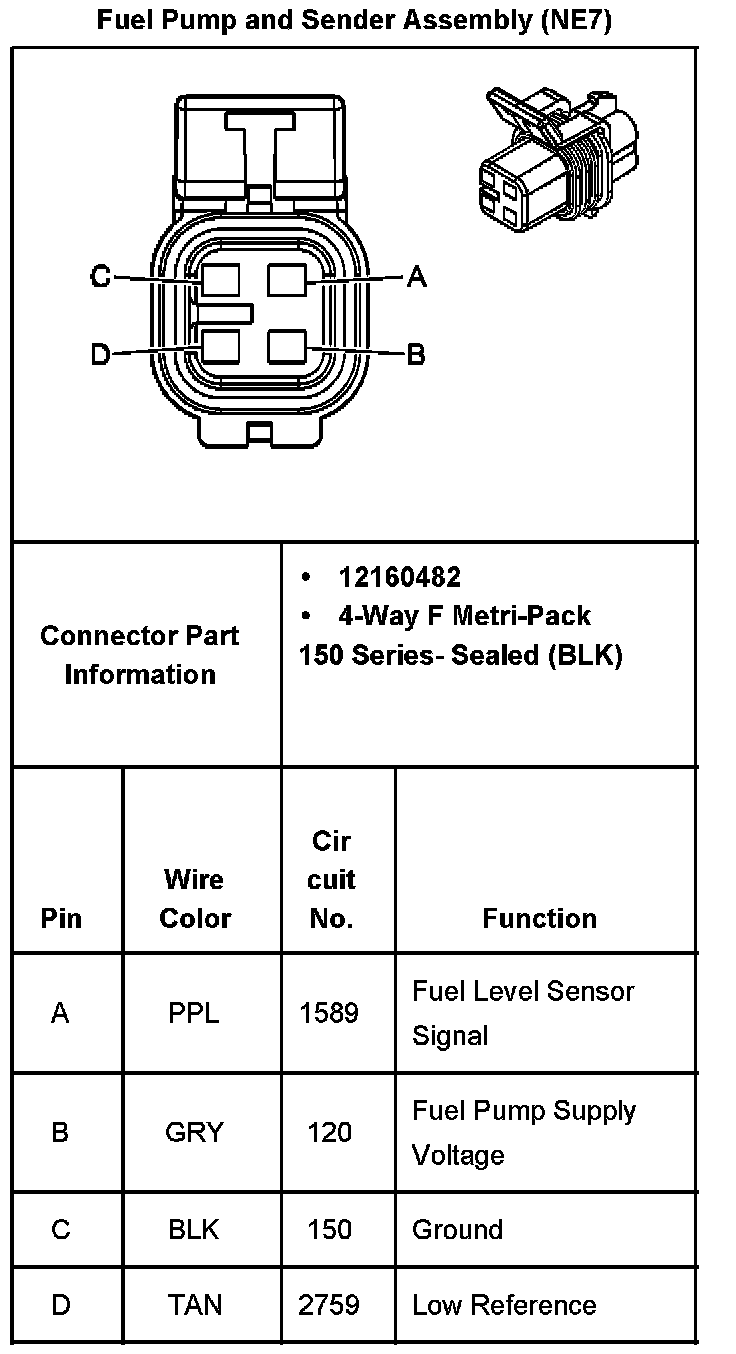

Fuel Pump And Sender Assembly (With RPO Code NE7):

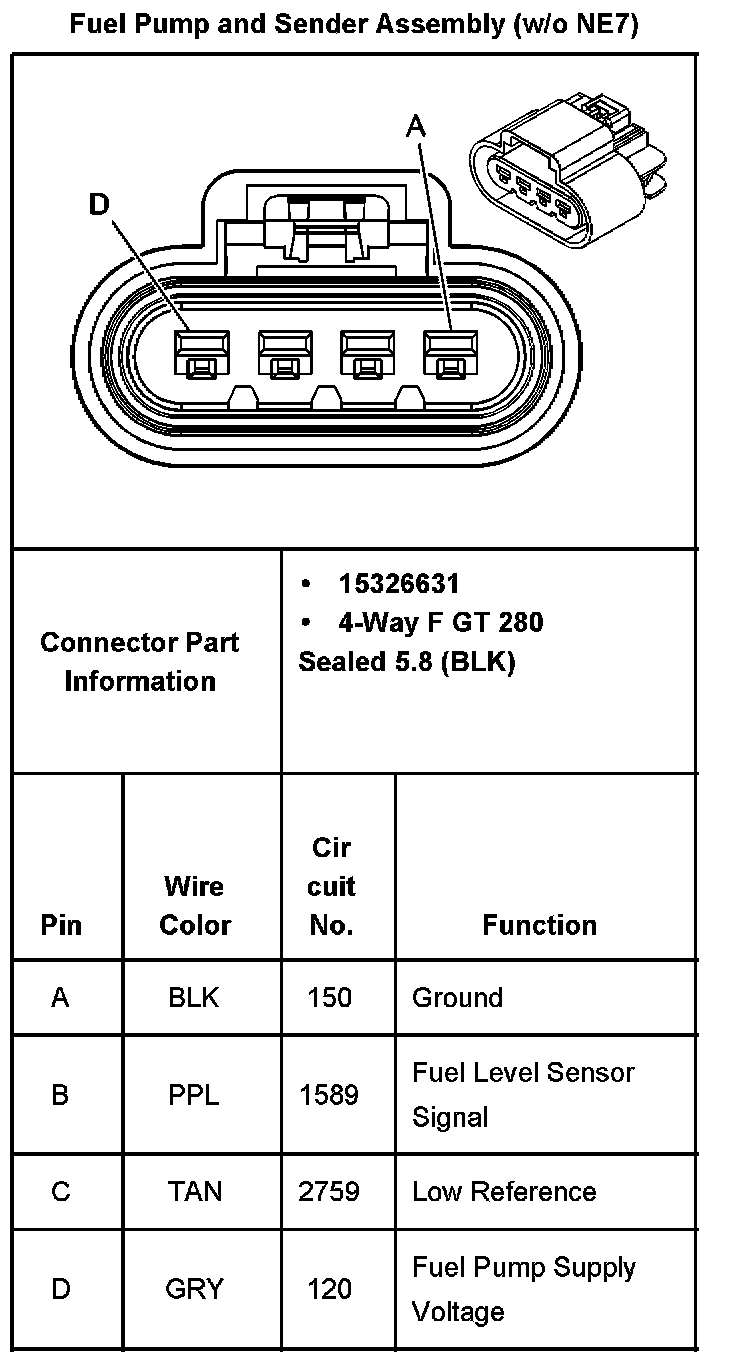

Fuel Pump And Sender Assembly (Without RPO Code NE7):
