Evaporative Emission (EVAP) Hose Routing Diagram

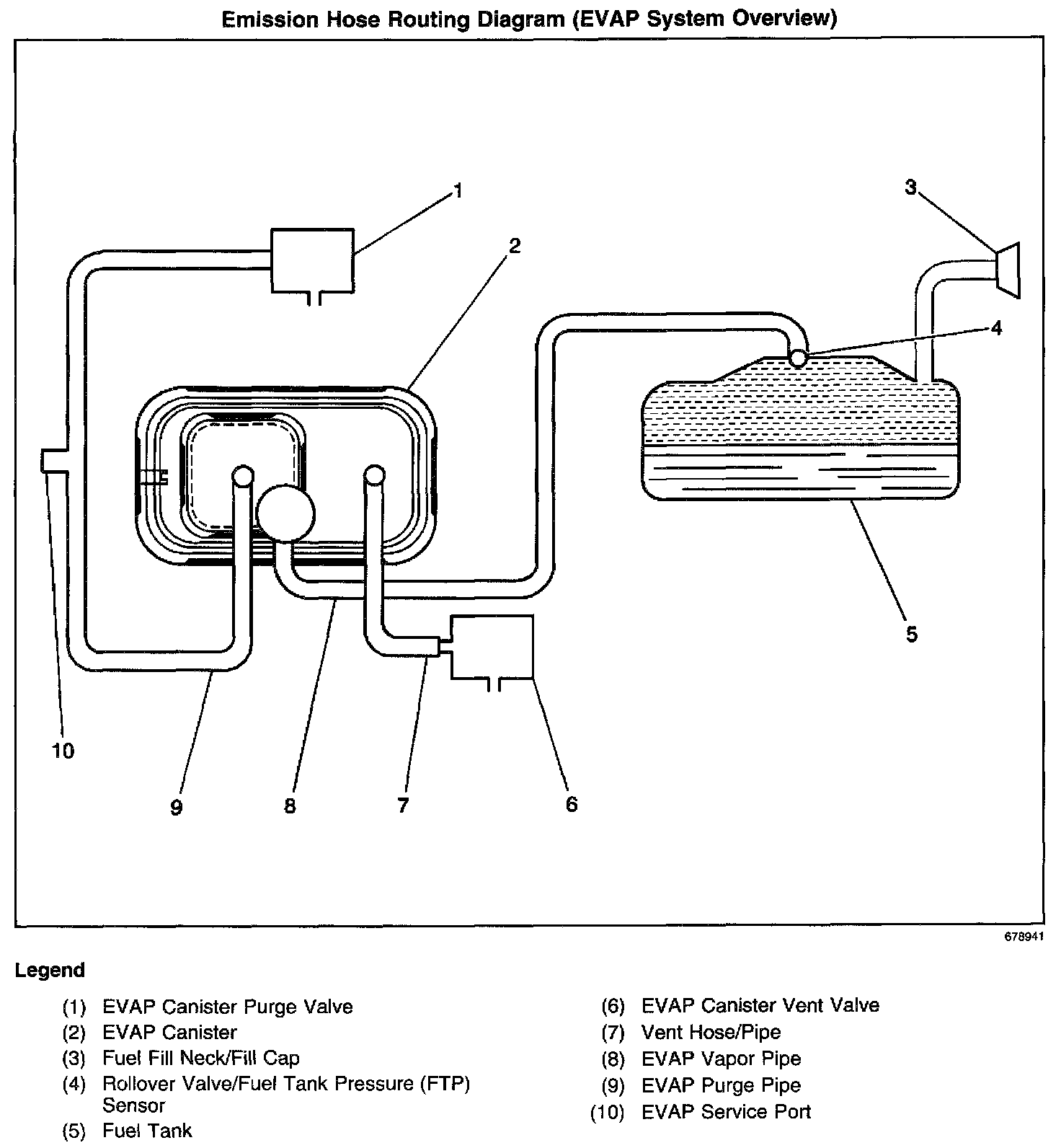

Emission Hose Routing Diagram (EVAP System Overview):
