Fuse Block - Underhood
Fuse Block - Underhood

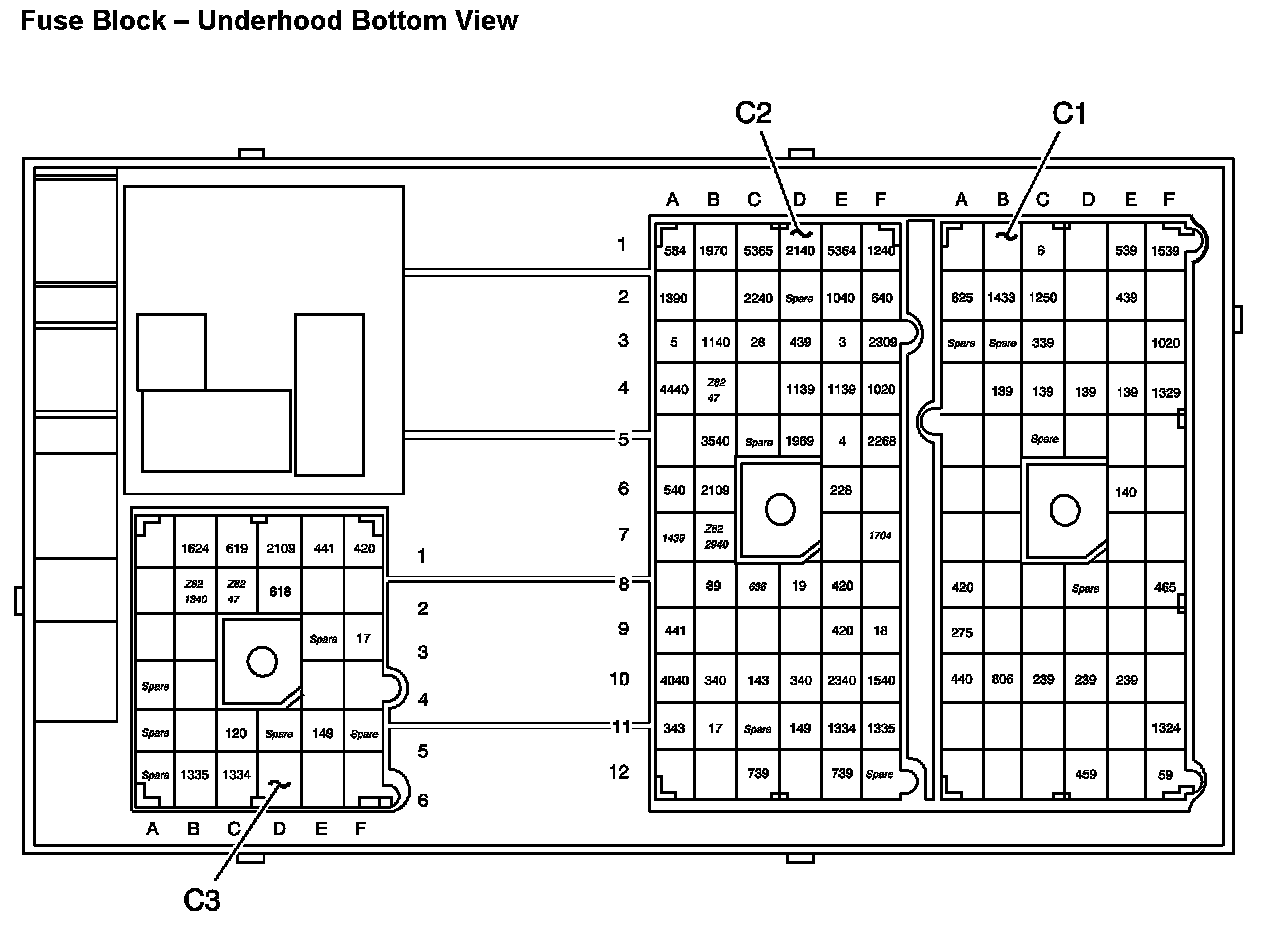

Location View:

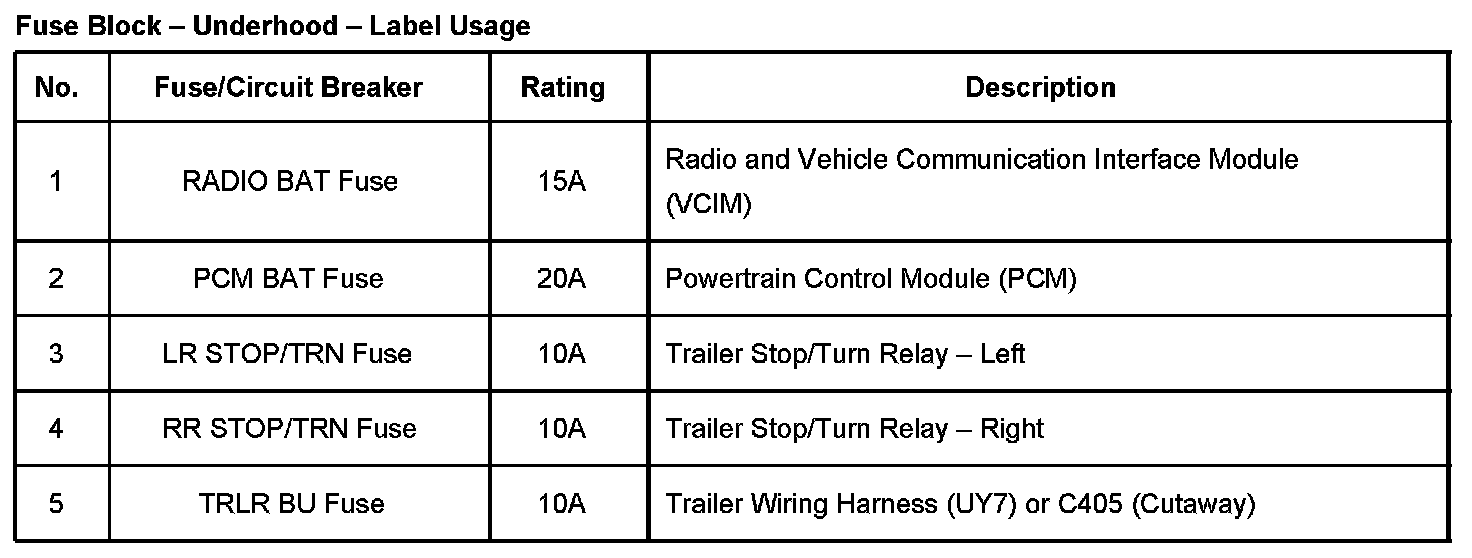

Application Table Part 1:

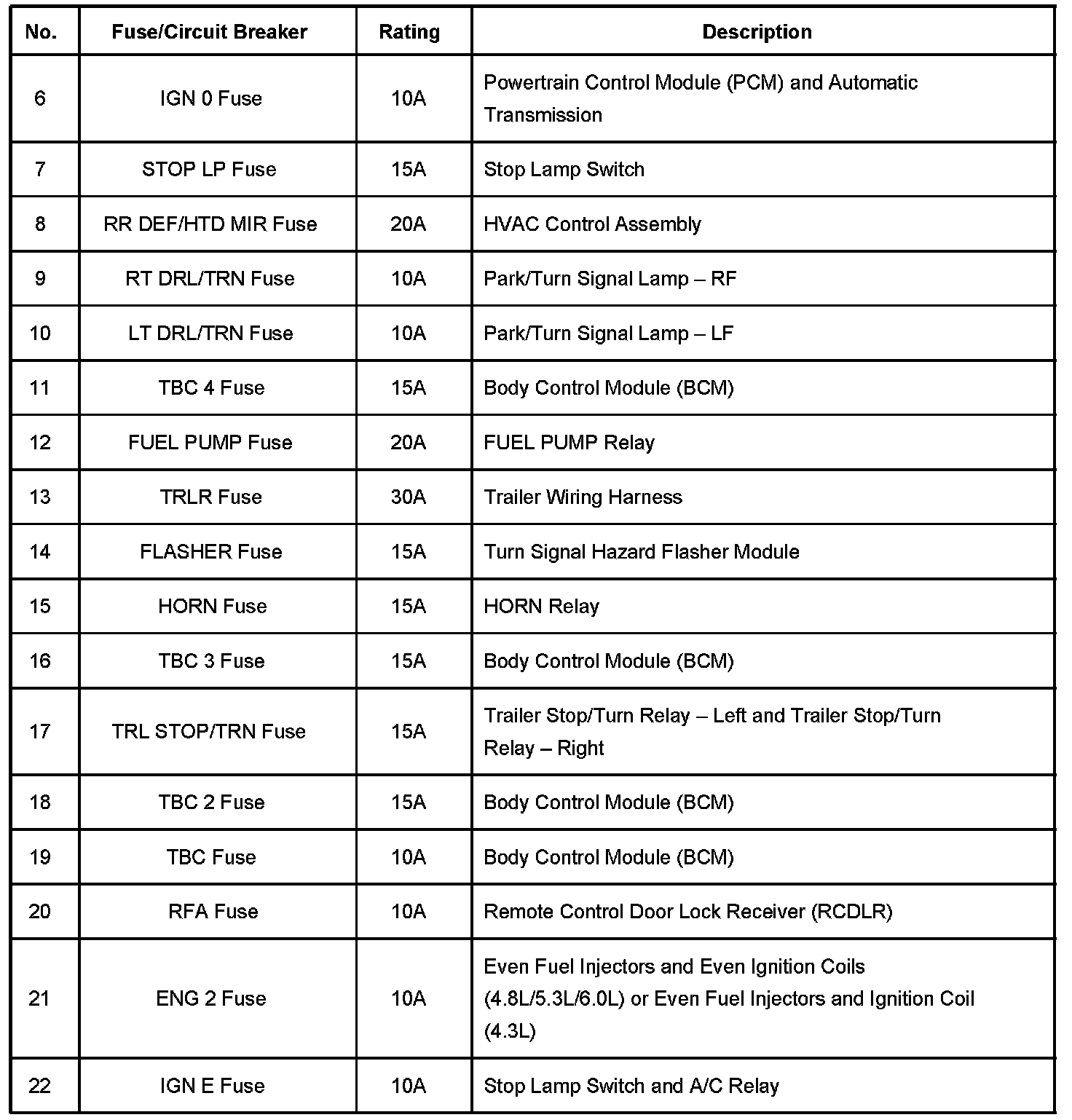

Application Table Part 2:

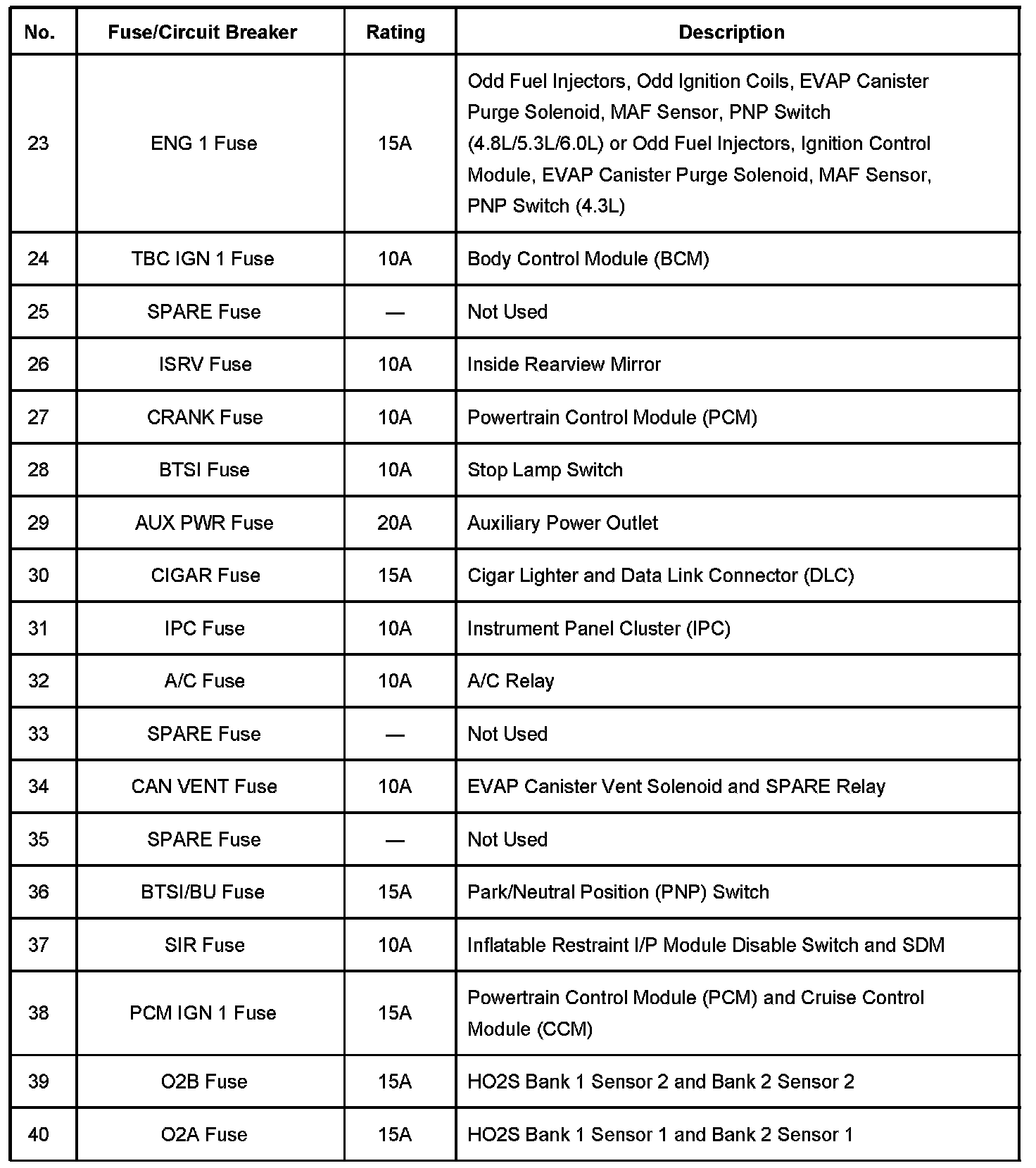

Application Table Part 3:

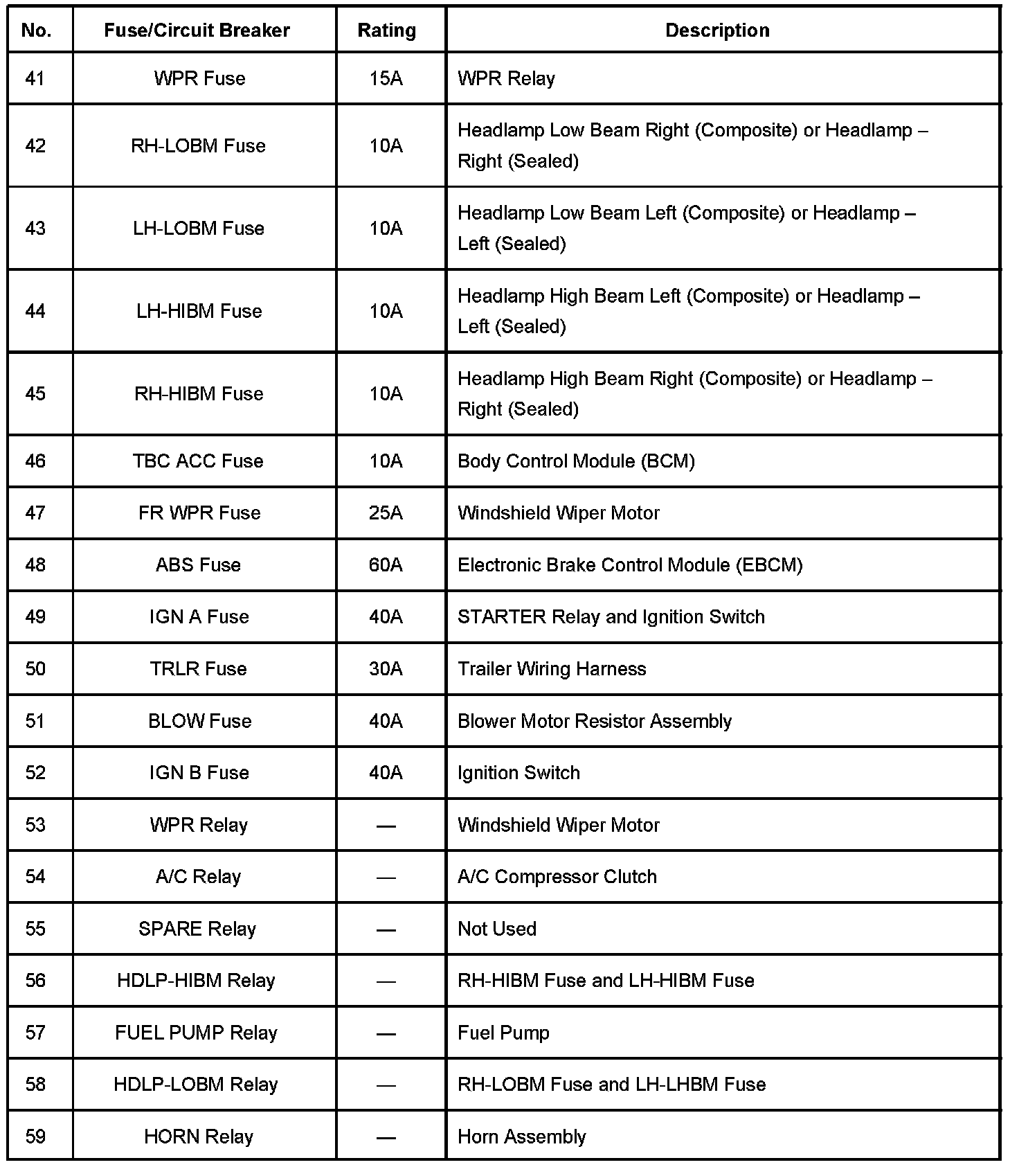

Application Table Part 4:

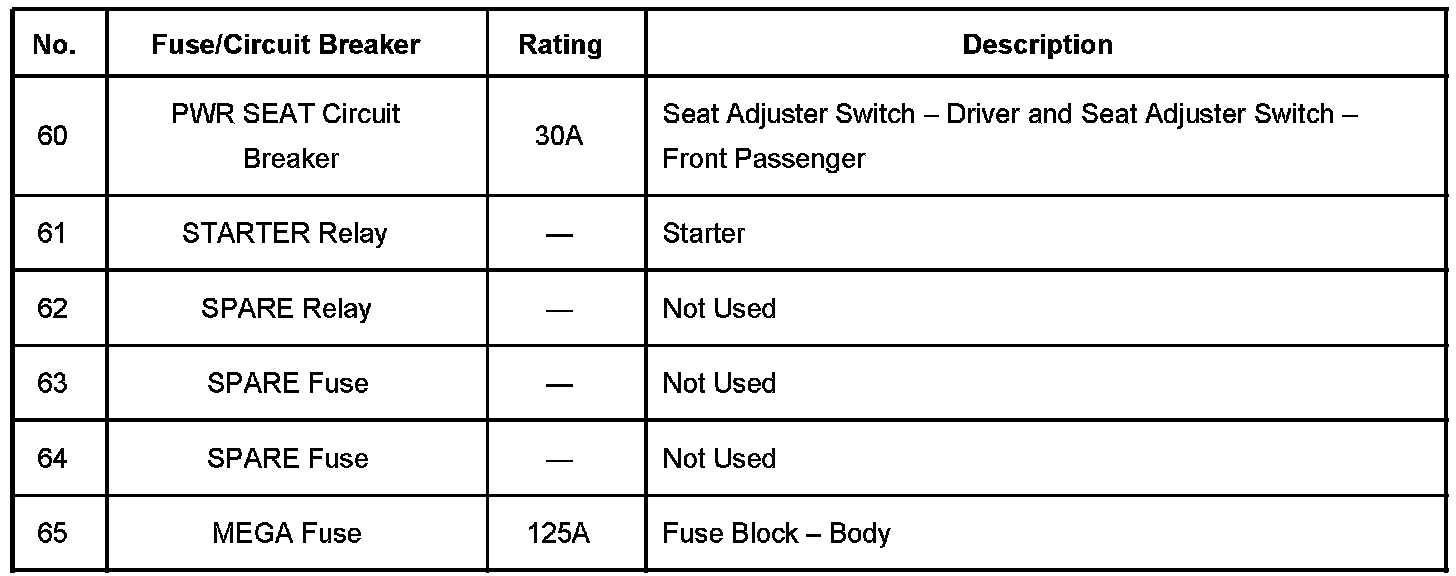

Application Table Part 5:

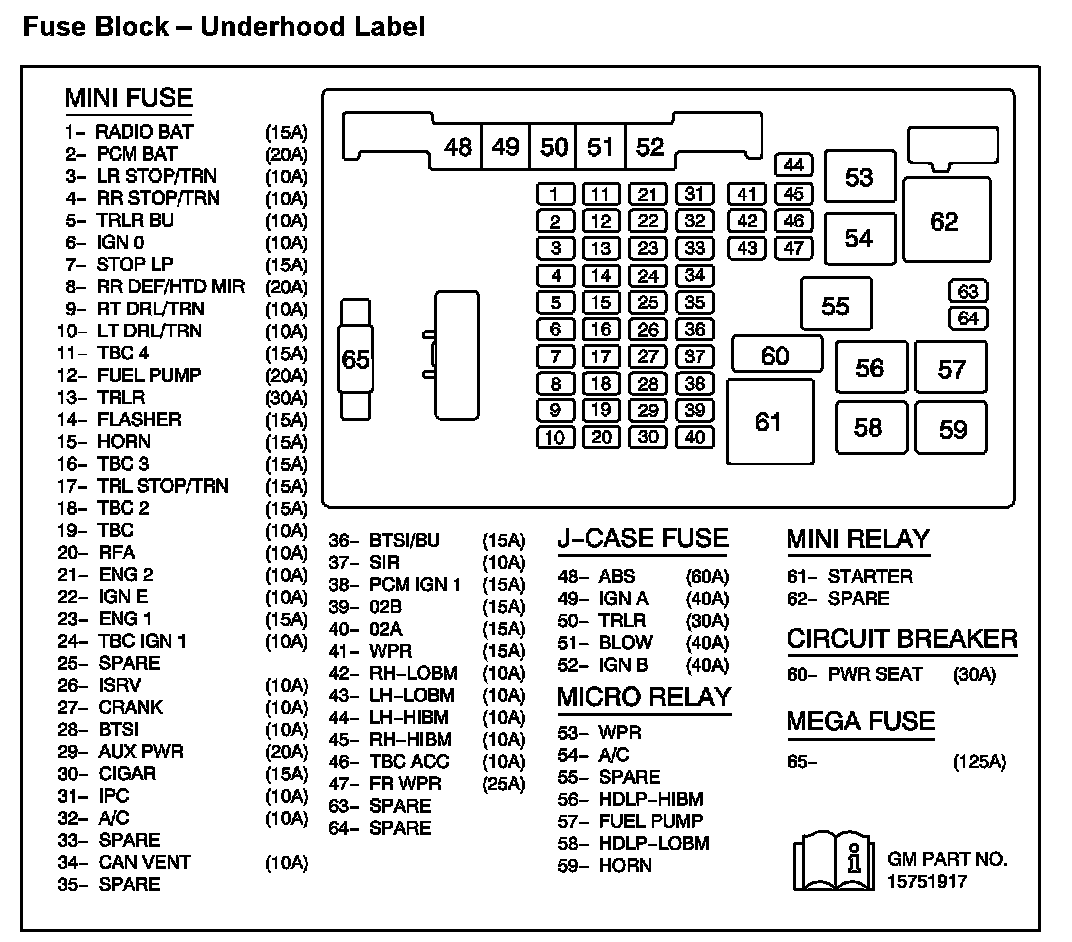

Location View:

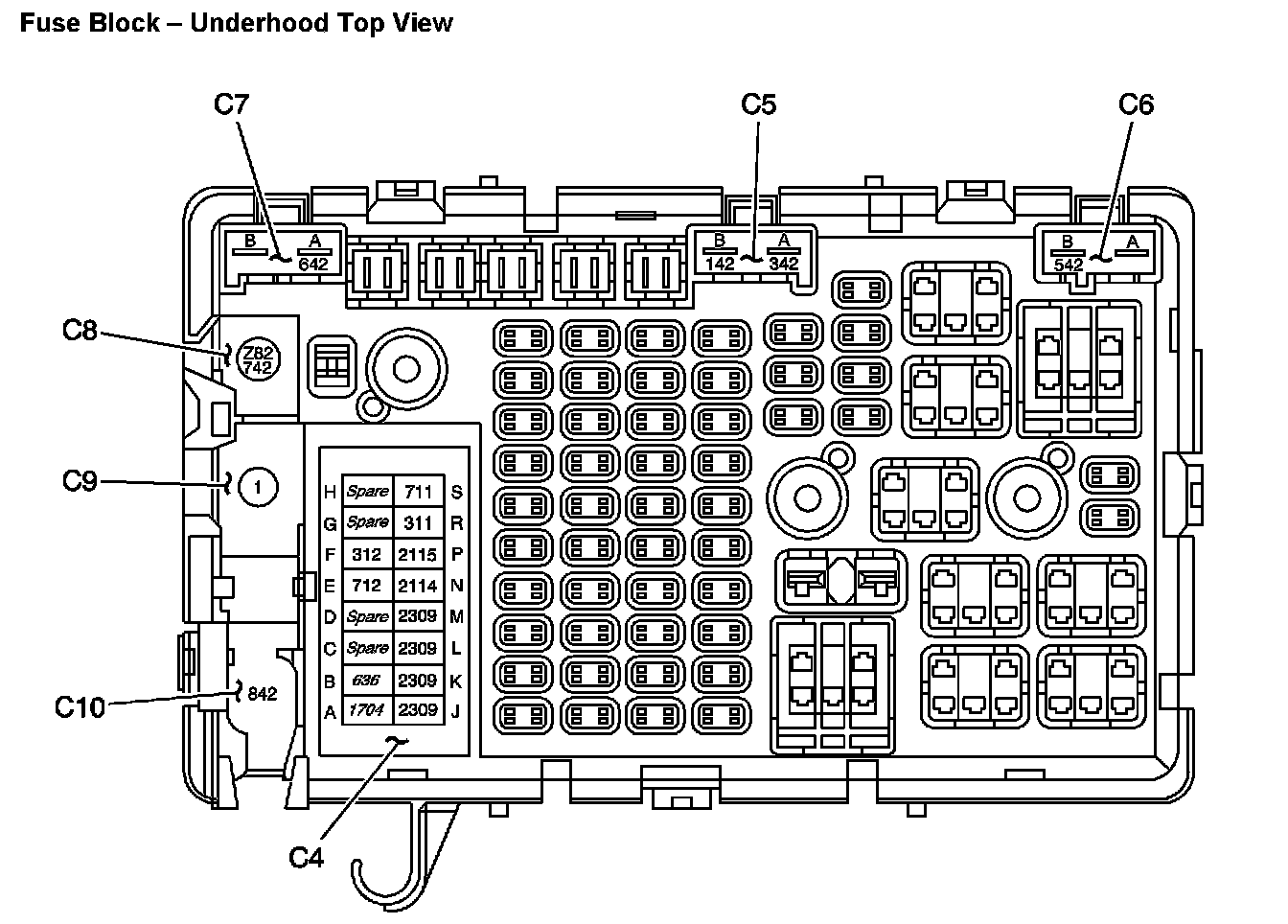

Location View:
