With RPO Code GT4

Power Steering Cooler Pipe/Hose Replacement (GT4)

Removal Procedure

Notice: Refer to Power Steering Hose Disconnected Notice in Service Precautions.





1. Install drain pan under vehicle.

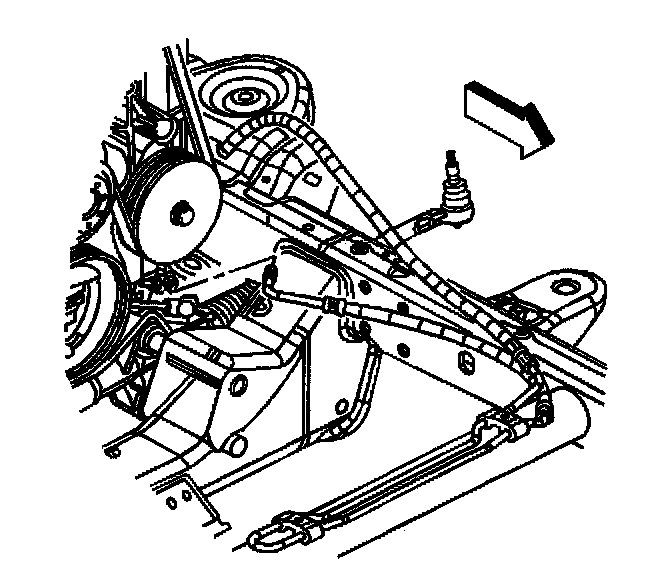

2. Disconnect the power steering cooler hose from the power steering pump.

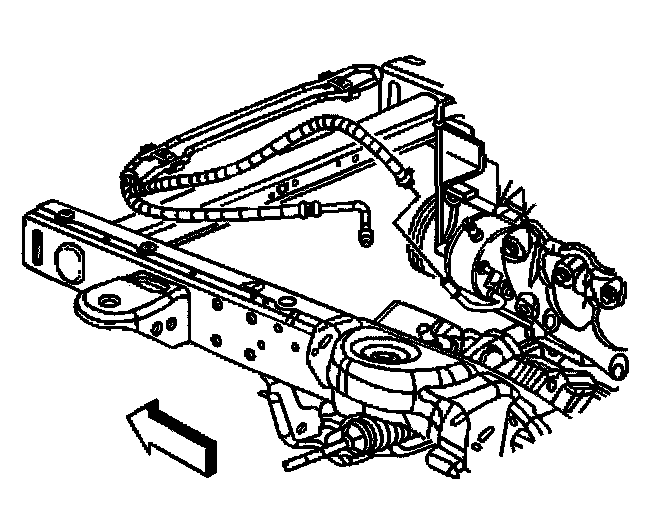

3. Disconnect the power steering cooler hose from the power steering gear.
4. Cap the power steering cooler ends in order to prevent the entry of dirt.

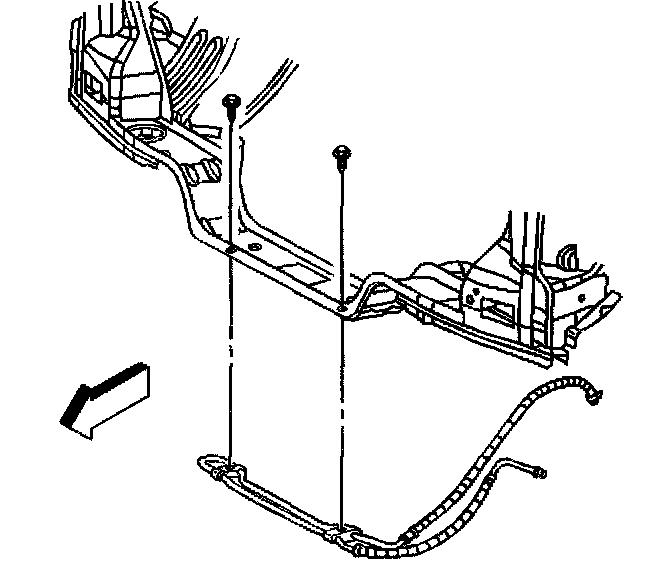

5. Remove the power steering cooler mounting bolts.
6. Remove the power steering cooler from the vehicle.

Installation Procedure
1. Install the power steering cooler to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the power steering cooler mounting bolts.
Tighten the bolts to 5 Nm (44 inch lbs.).





3. Connect the power steering cooler hose to the power steering gear.
Tighten the hose fitting to 33 Nm (24 inch lbs.).





4. Connect the power steering cooler hose to the power steering pump.
5. Bleed the power steering system.
6. Remove the drain pan from under the vehicle.
