Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Underhood Lamp Inoperative

Underhood Lamp Inoperative

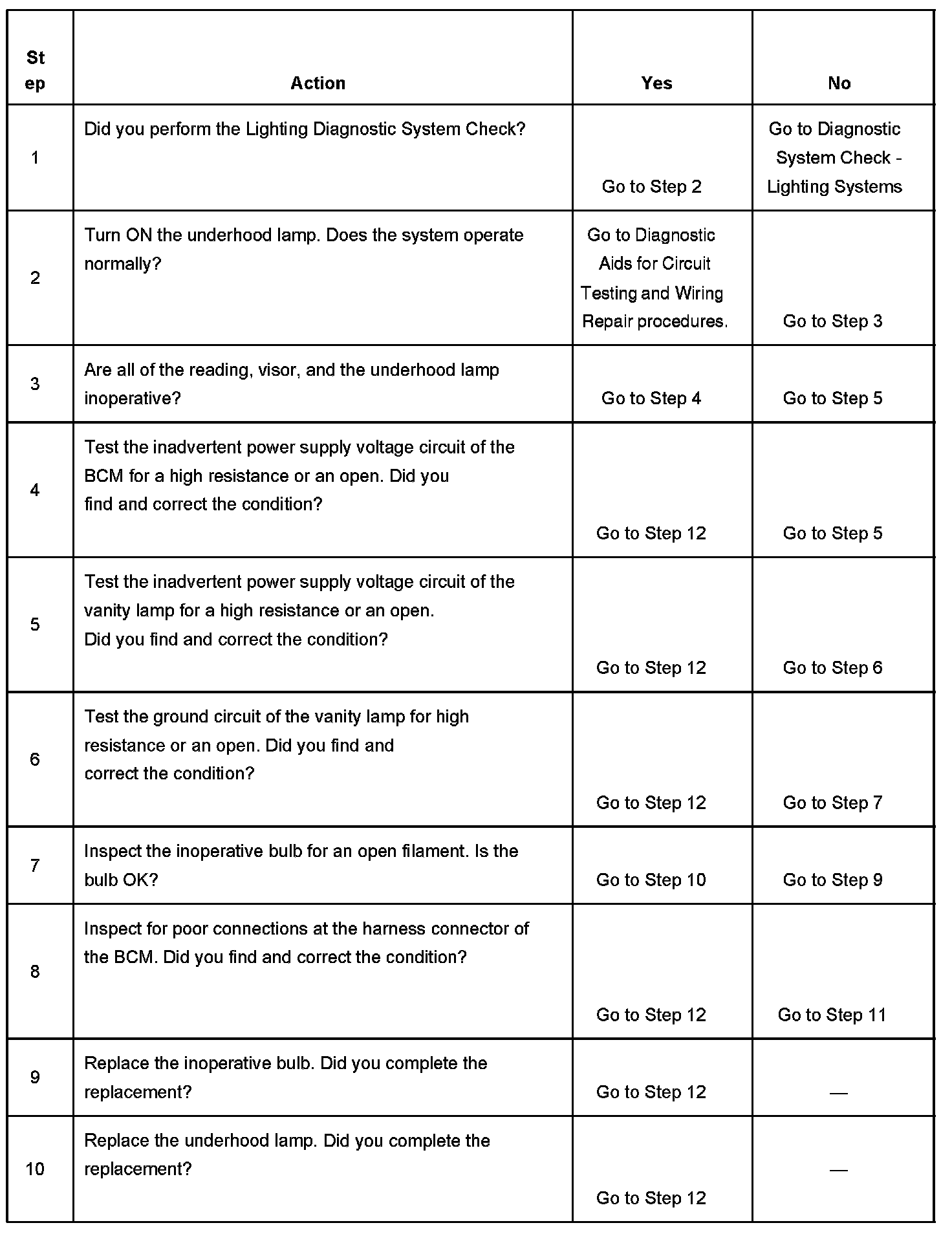

Steps 1-10:

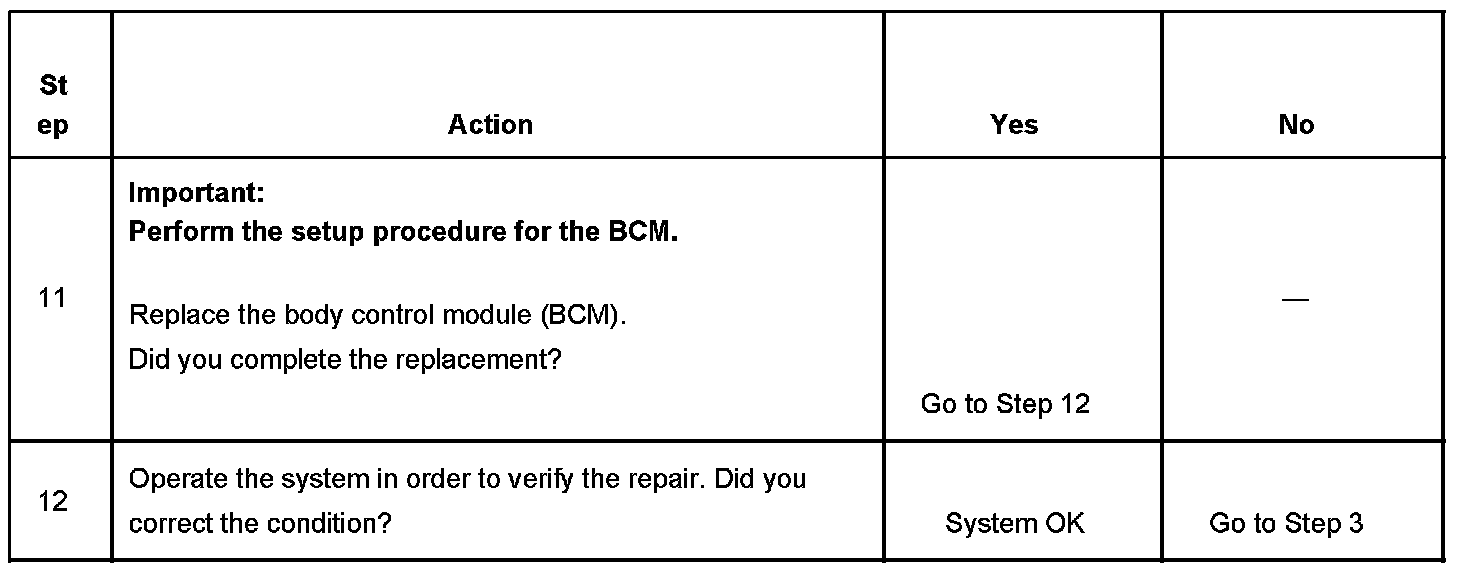

Steps 11-12:
