Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps Inoperative - Low Beams

Headlamps Inoperative - Low Beams

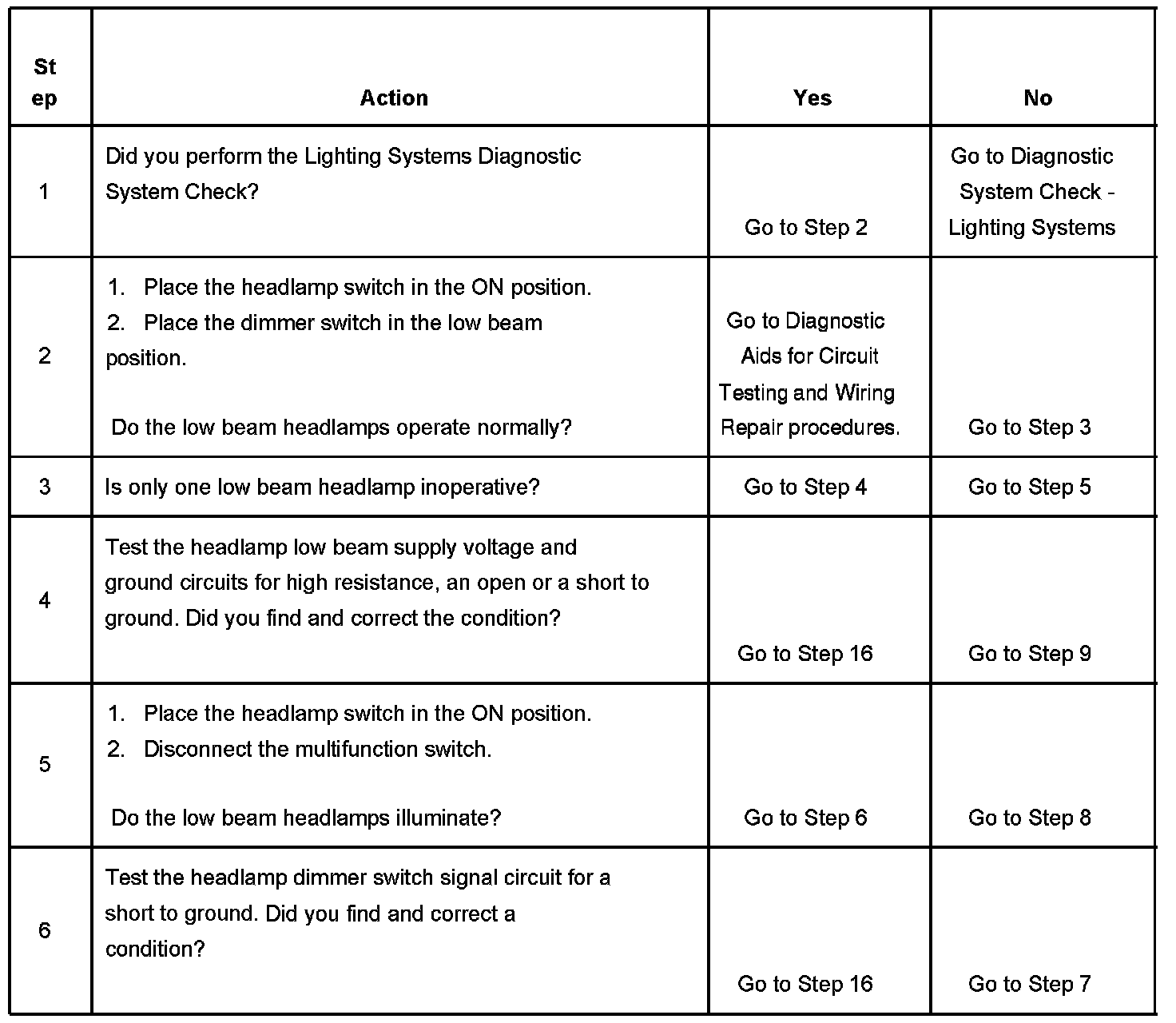

Steps 1-6:

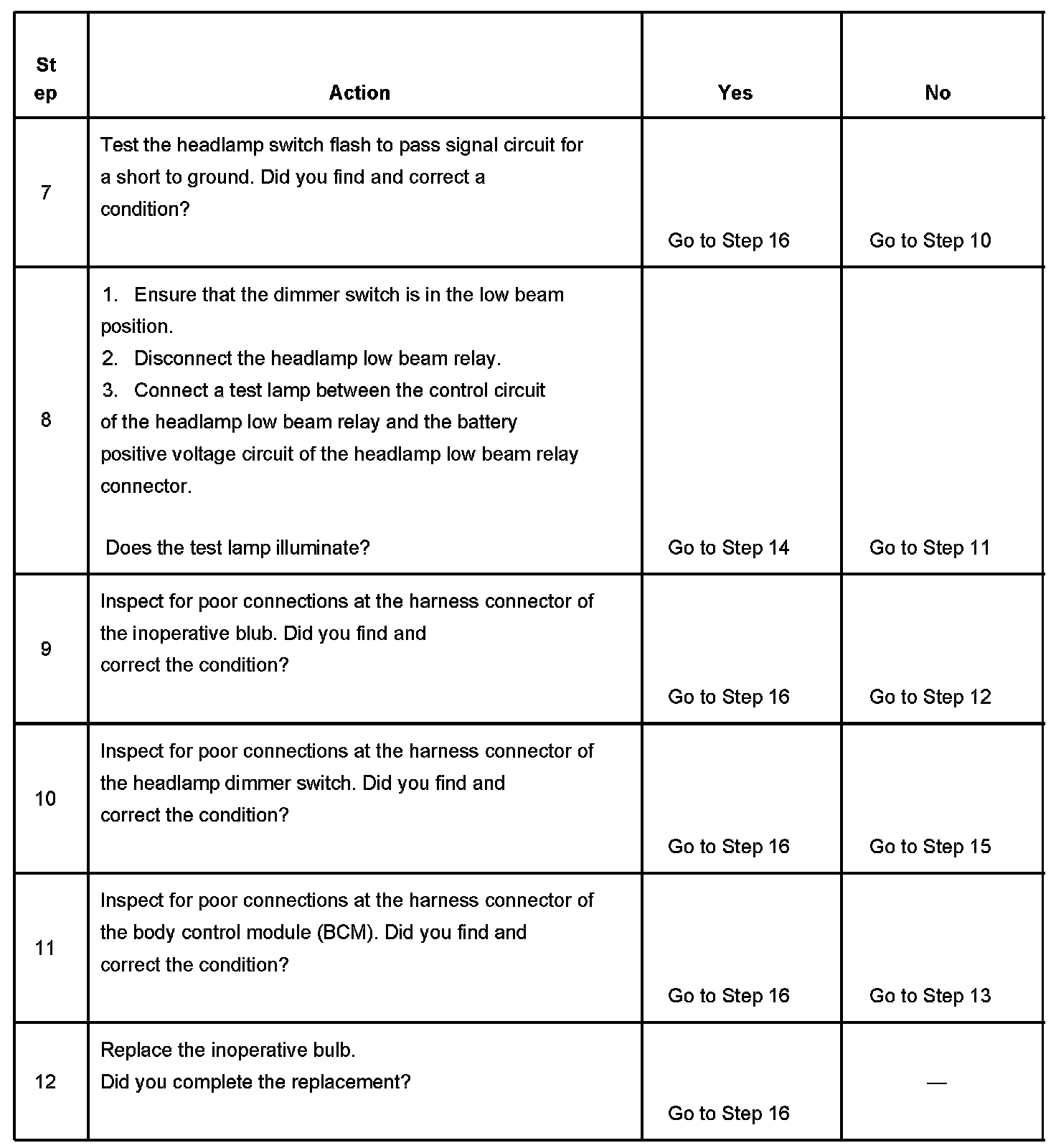

Steps 7-12:

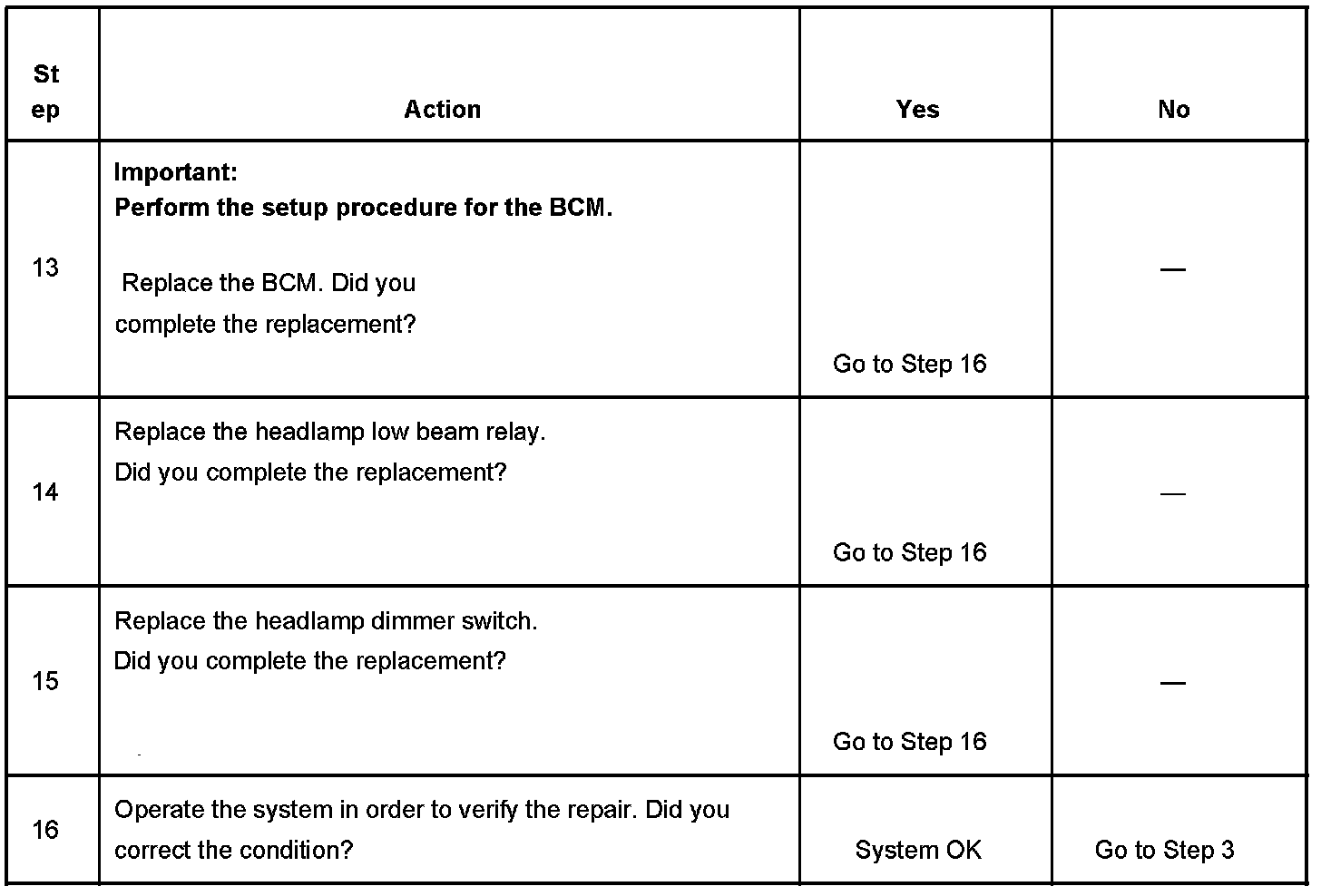

Steps 13-16:
