Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps Always On - Low or High Beam

Headlamps Always On - Low or High Beam

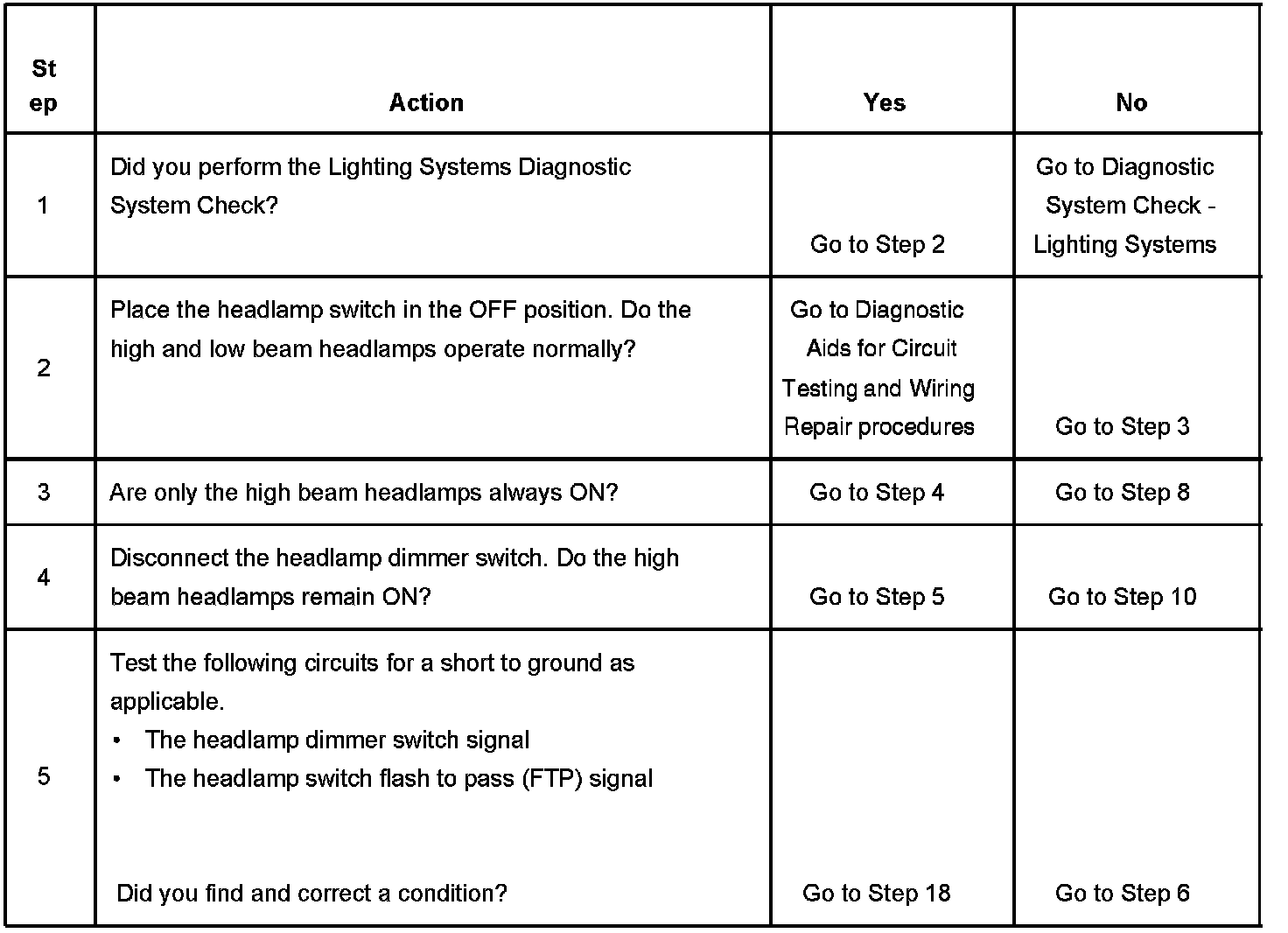

Steps 1-5:

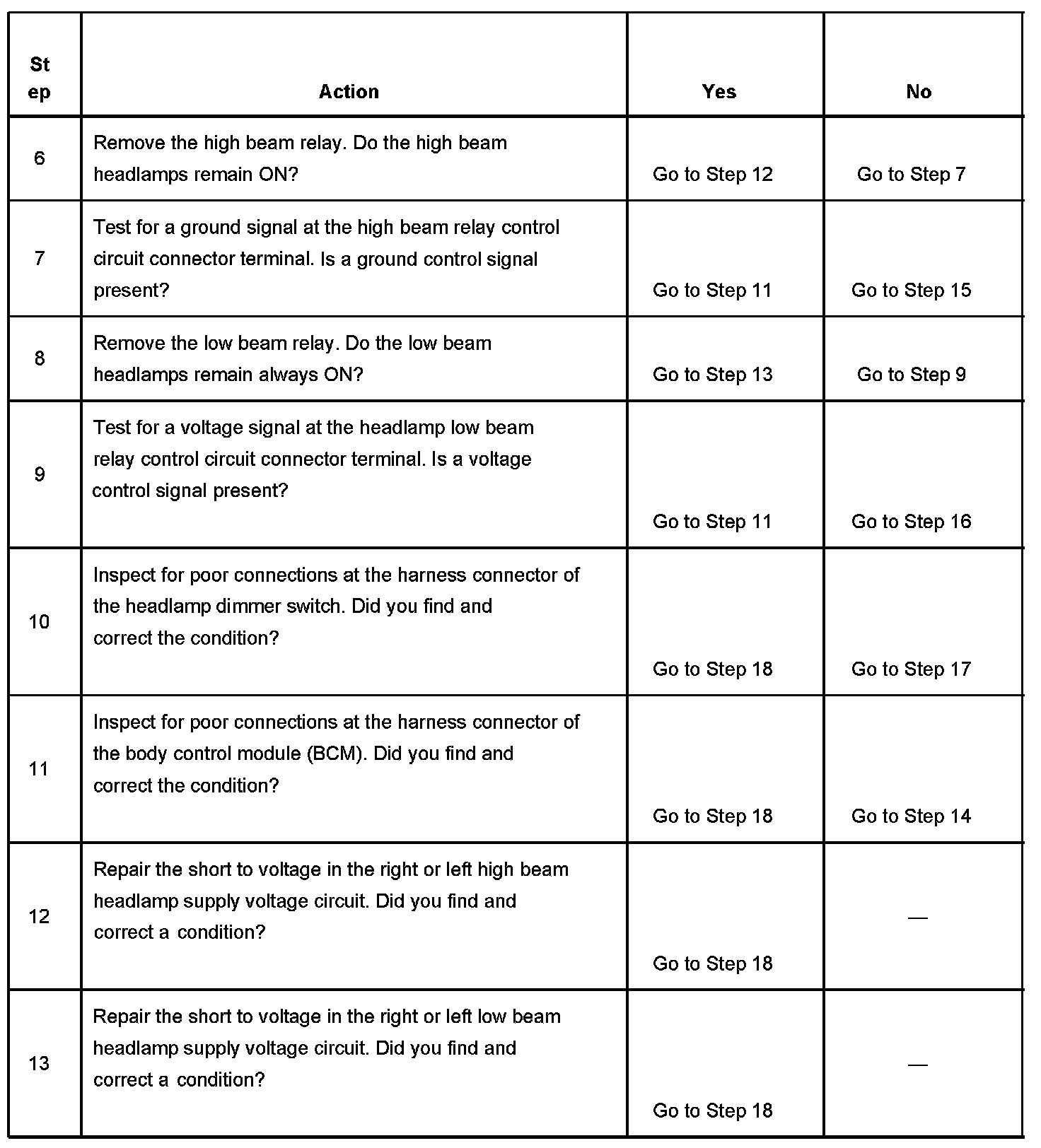

Steps 6-13:

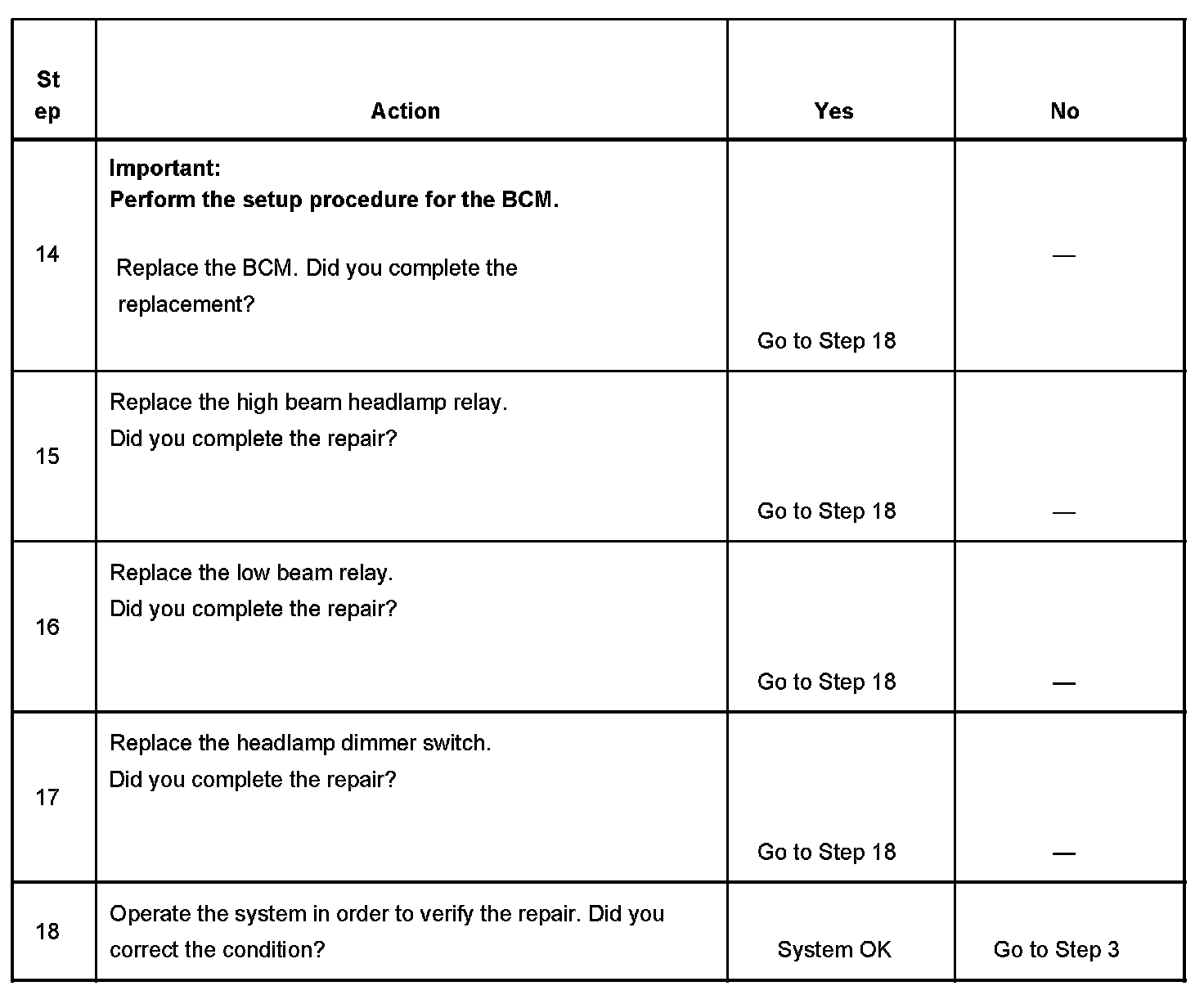

Steps 14-18:
