Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Daytime Running Lamps (DRL) - Inoperative (Lamps)

Daytime Running Lamps (DRL) - Inoperative (Lamps)

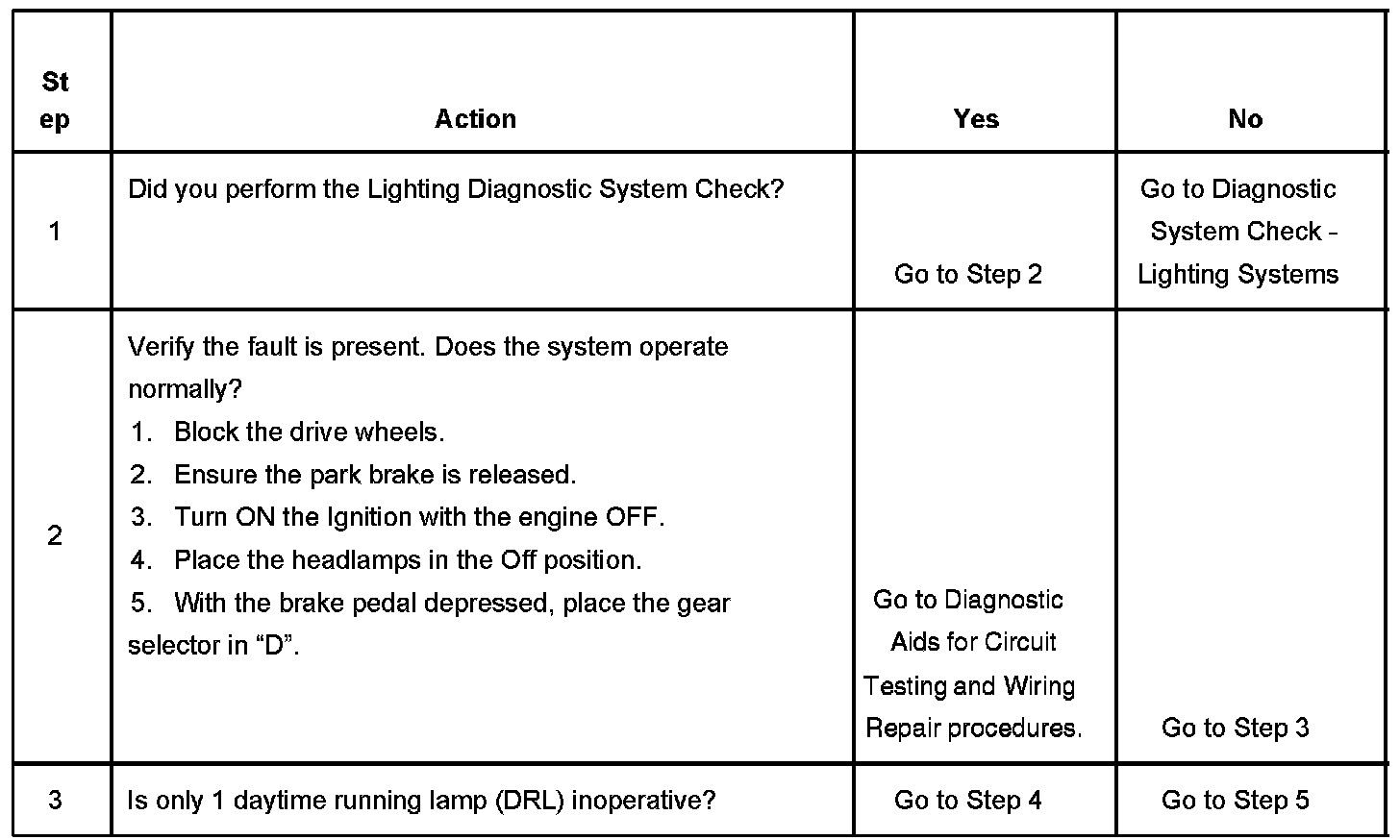

Steps 1-3:

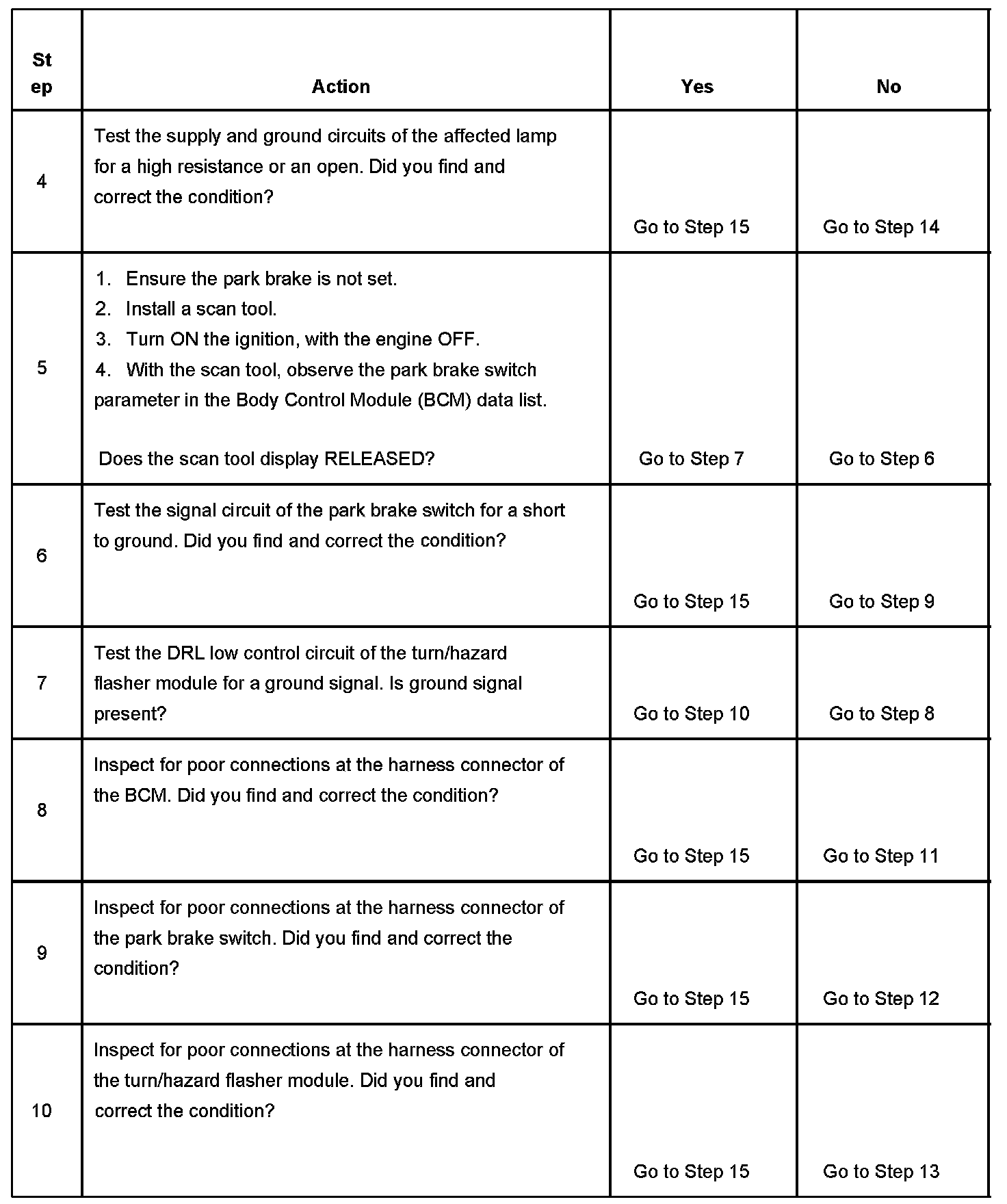

Steps 4-10:

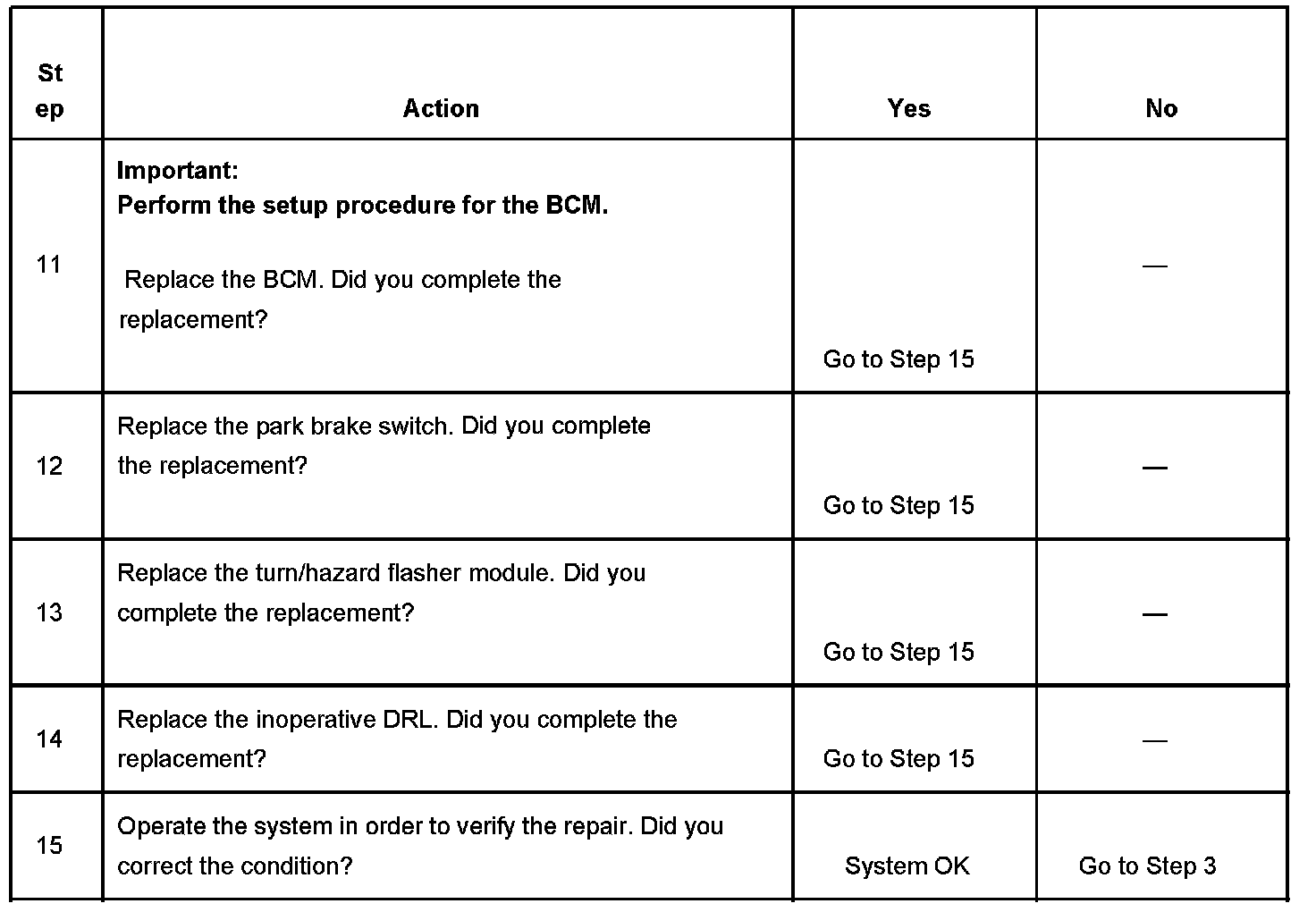

Steps 11-15:
