Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Courtesy Lamps Inoperative (Defeat Switch)

Courtesy Lamps Inoperative (Defeat Switch)

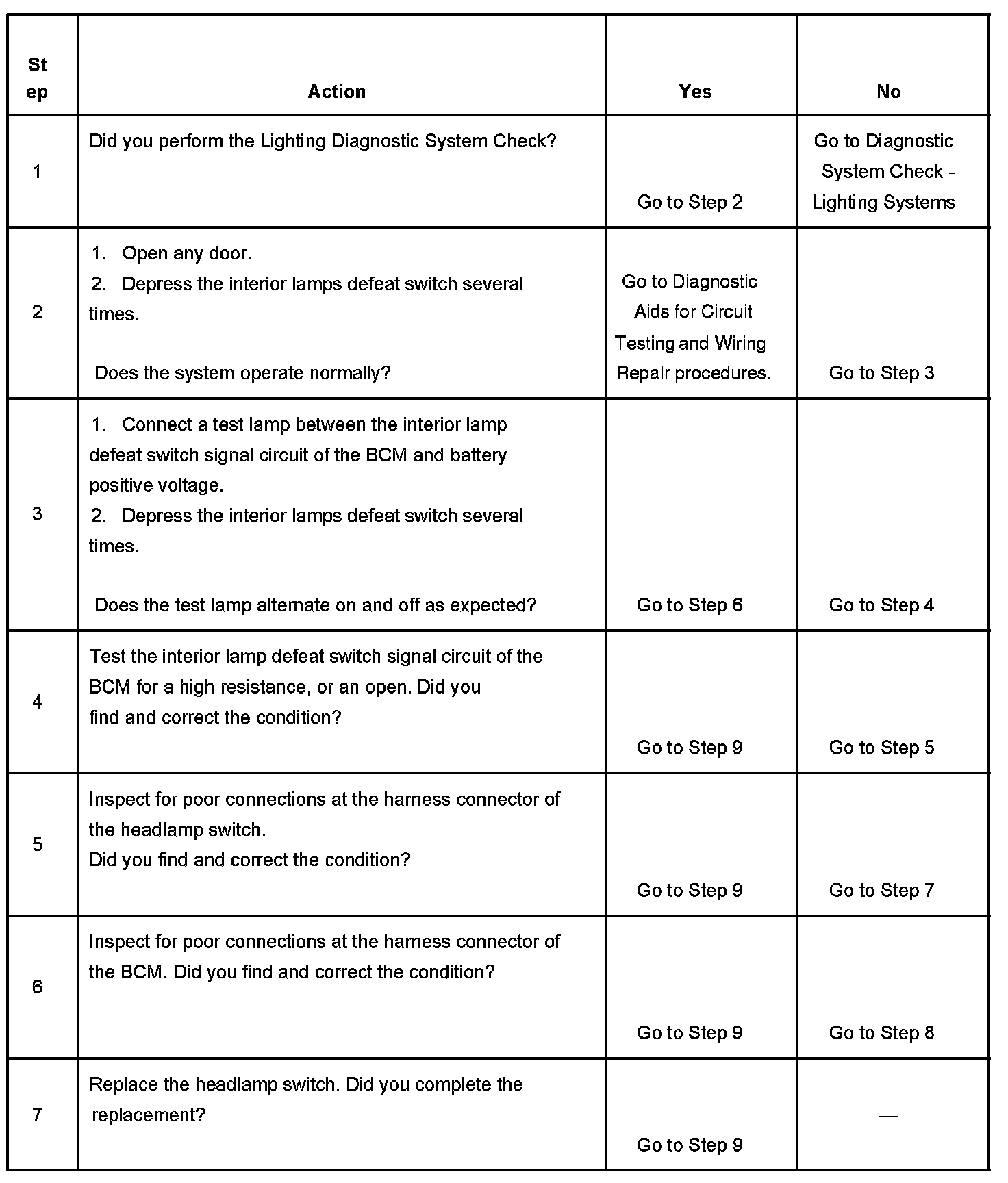

Steps 1-7:

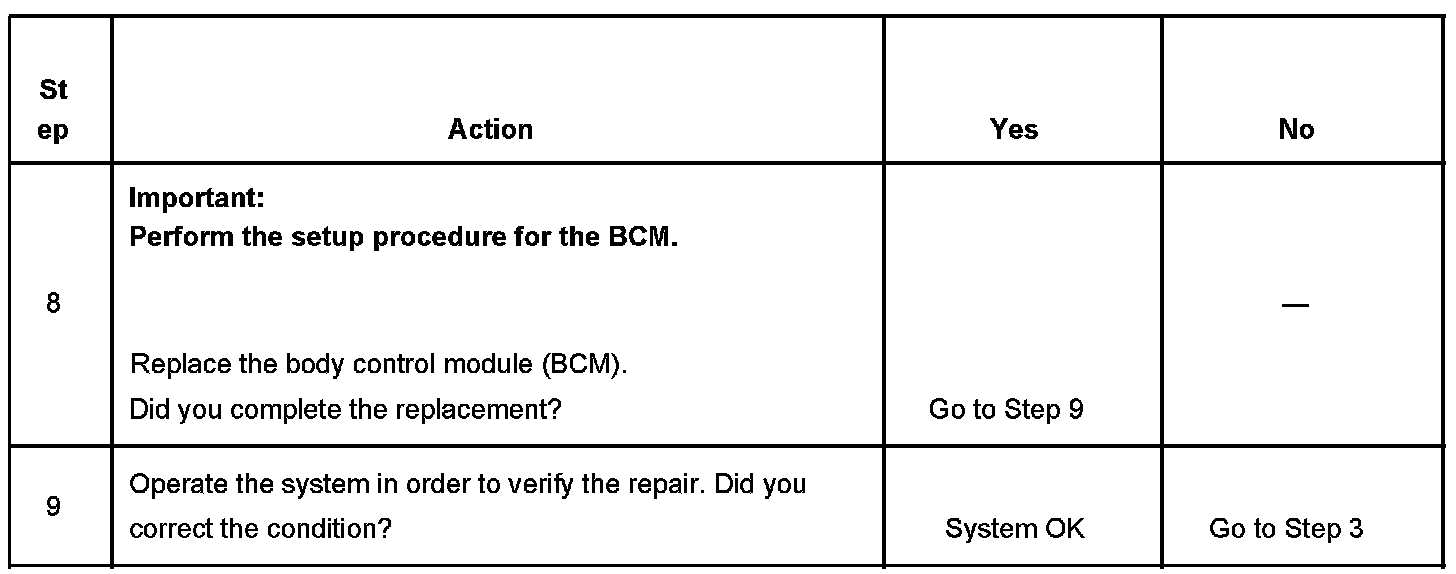

Steps 8-9:
