Fog/Driving Lamp Bulb: Service and Repair

FOG LAMP BULB REPLACEMENT - REAR

REMOVAL PROCEDURE

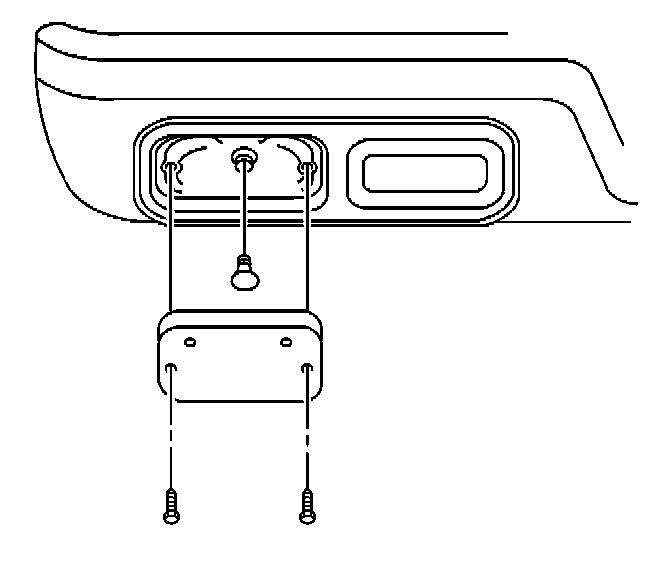

1. Remove the screws retaining the lens to the lamp.
2. Remove the lens from the lamp.
3. Gently push in on the bulb and turn the bulb 1/4 turn counterclockwise.
4. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Gently push in on the bulb and turn the bulb 1/4 turn clockwise.
3. Install the lens to the lamp assembly.
4. Install the screws to retain the lens to the lamp assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).
