Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Interior Lights Diagram 1

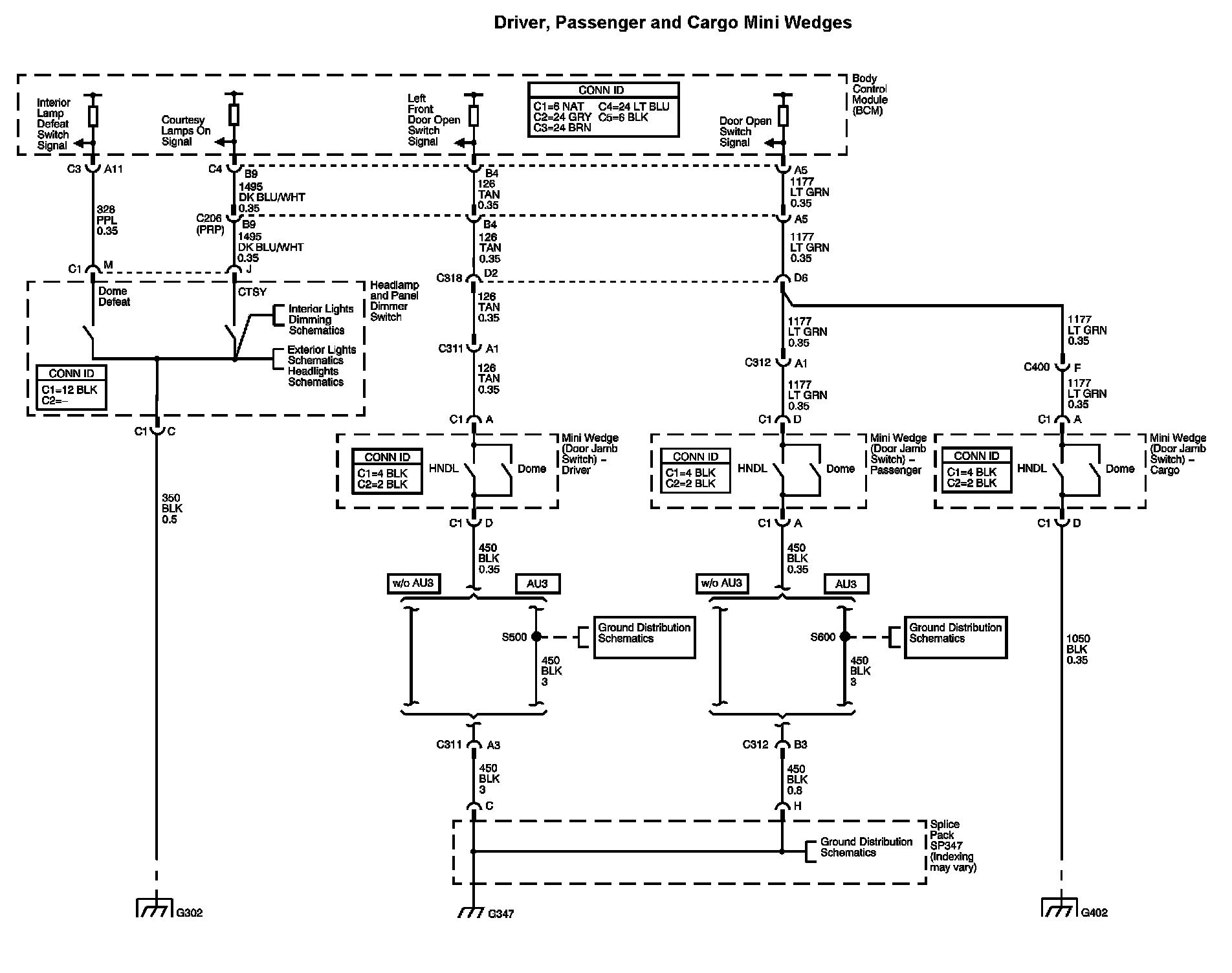

Interior Lights Diagram 1

Interior Lights Diagram 1:






Next Diagram Interior Lights Diagram 2
