Cargo Lamp: Service and Repair

CARGO LAMP REPLACEMENT

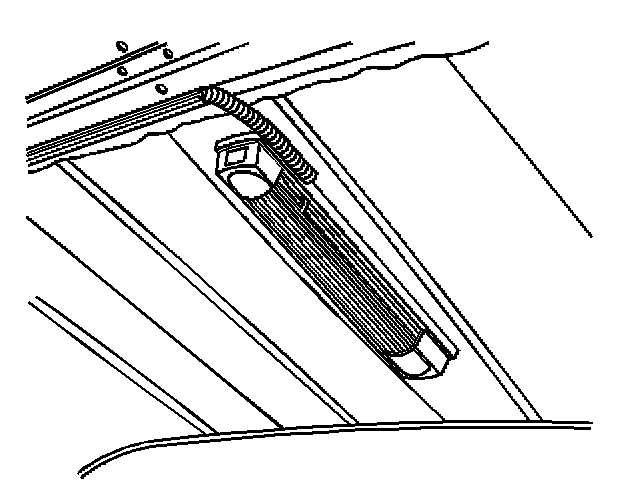

REMOVAL PROCEDURE




1. Disconnect the electrical connector.
2. Using a plastic flat bladed tool, release the double sided tape that retains the light assembly to the vehicle.

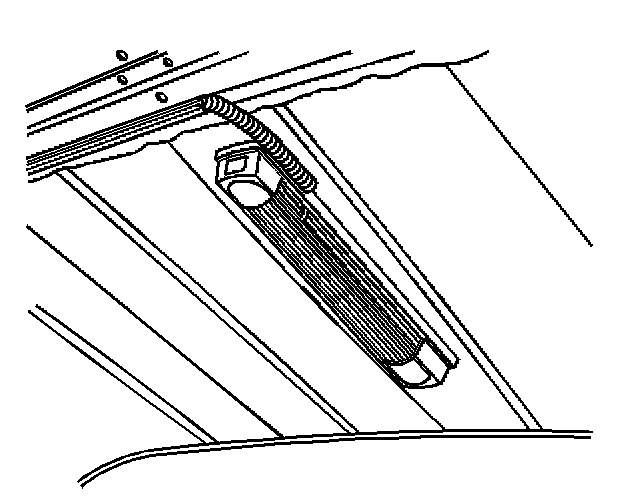

INSTALLATION PROCEDURE




1. Install the light assembly into the vehicle with double sided tape.
2. Connect the electrical connector.

IMPORTANT: In order to insure a good replacement of new adhesive or of old adhesive, verify that the surface meets the following conditions:
- The temperature of the surface is approximately 24-41°C (80-105°F).
- The surface is clean.
- The surface is free of wax or of oily film.
