Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Low Engine Oil Level Indicator Always On

Low Engine Oil Level Indicator Always On

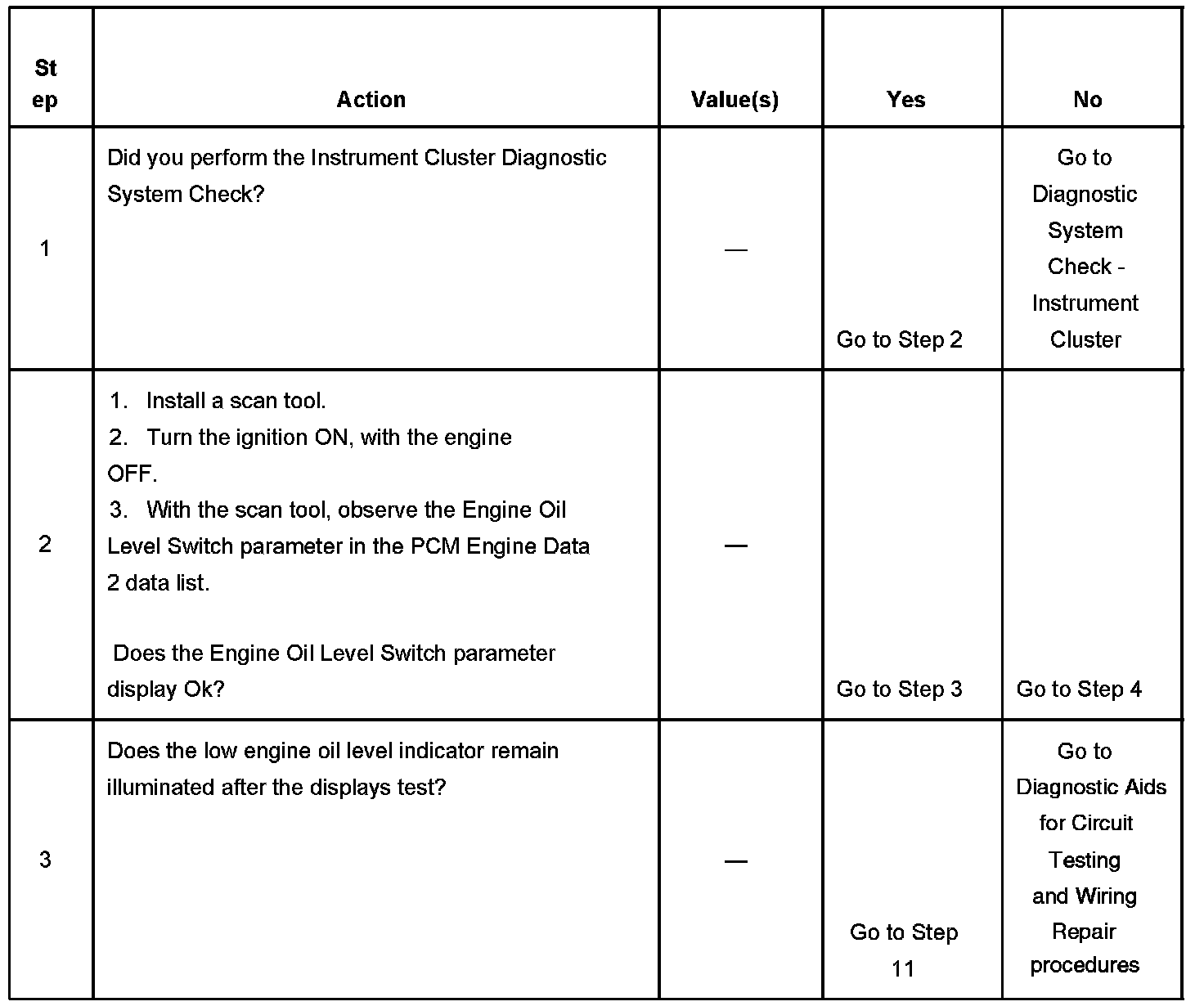

Steps 1-3:

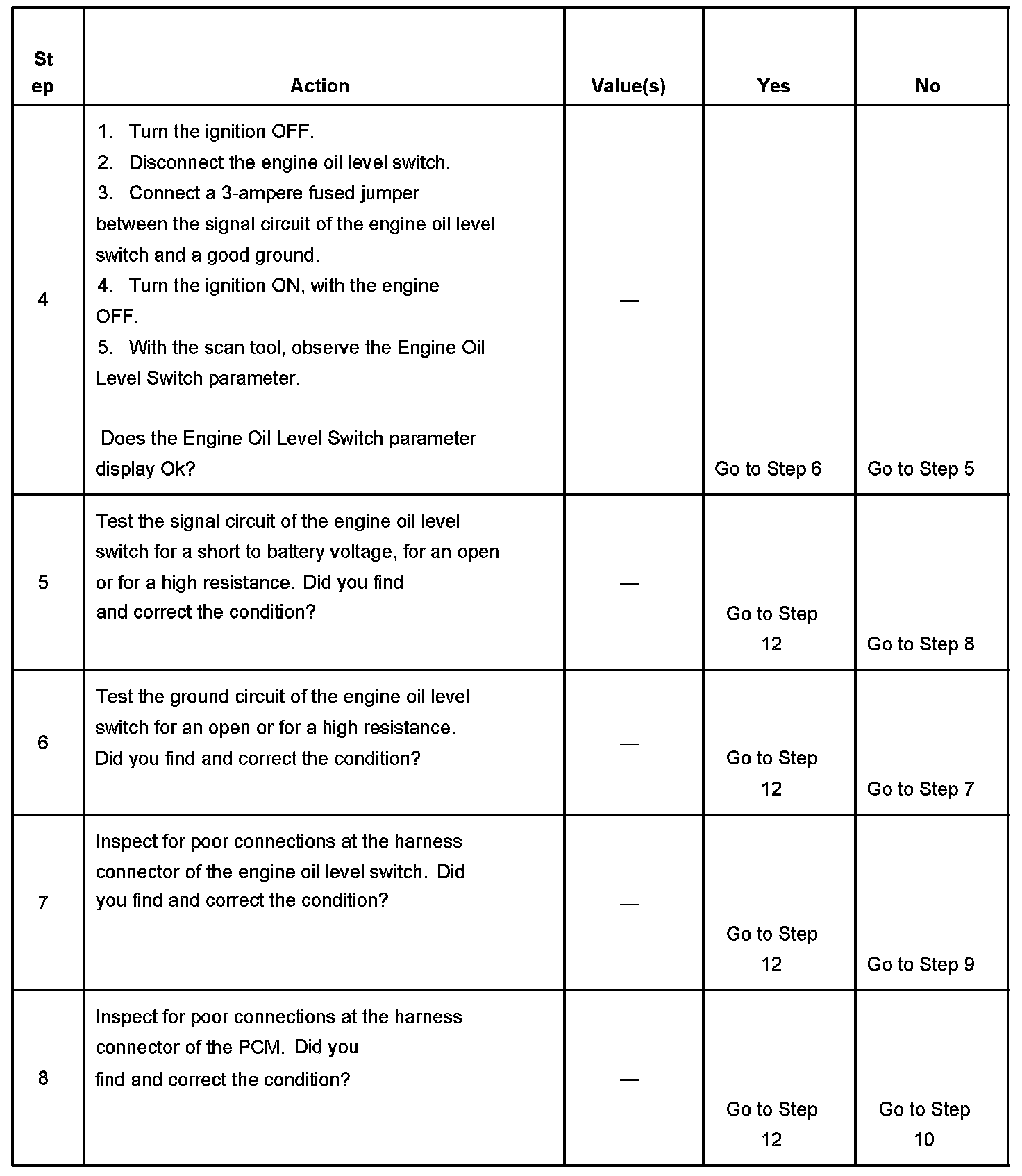

Steps 4-8:

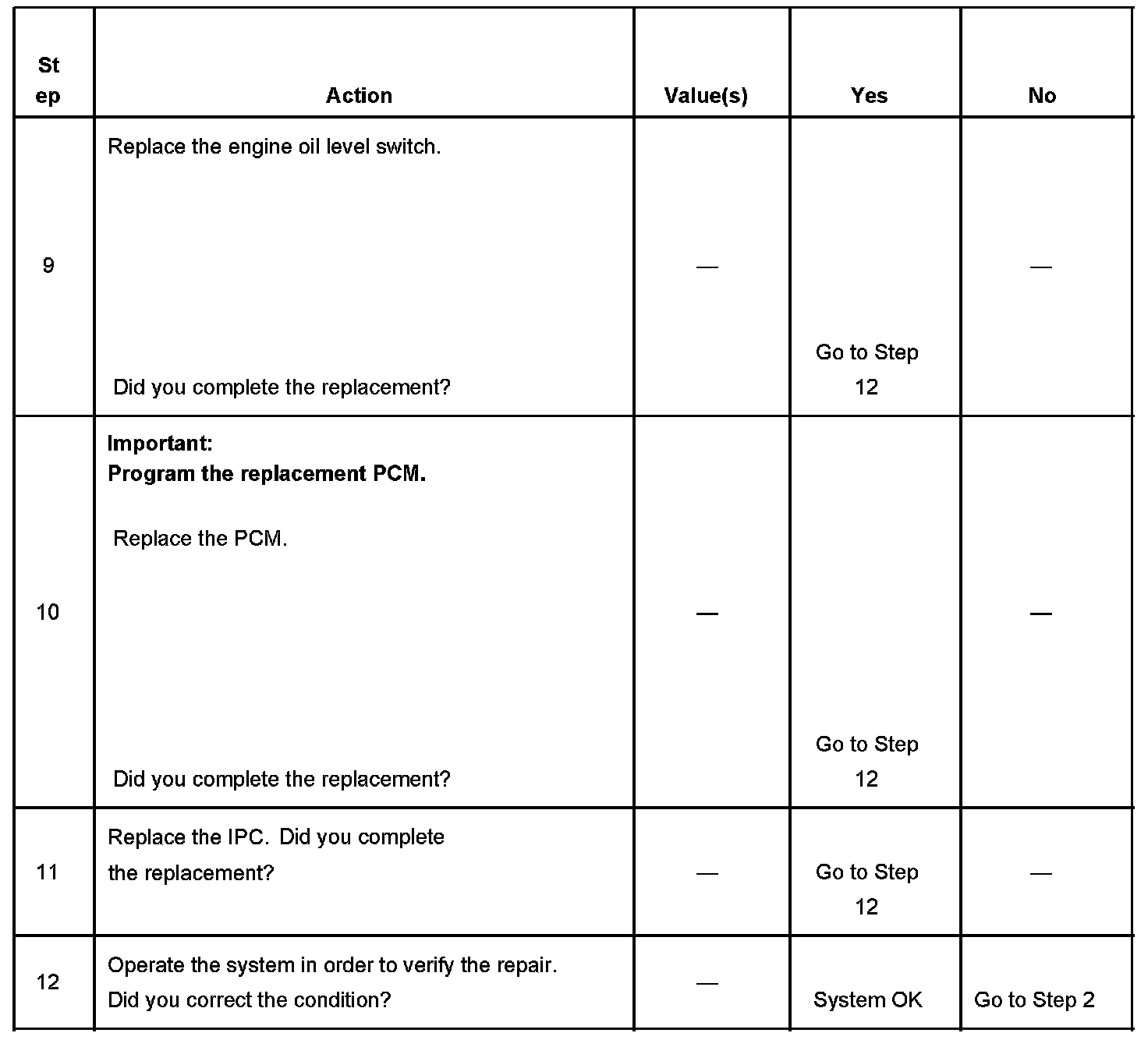

Steps 9-12:
