Cargo Van W/Aux Rear Heater

TOO HOT IN VEHICLE - AUXILIARY (CARGO VAN W/AUX REAR HEATER)

TEST DESCRIPTION

Steps 1-2:

Steps 3-4:

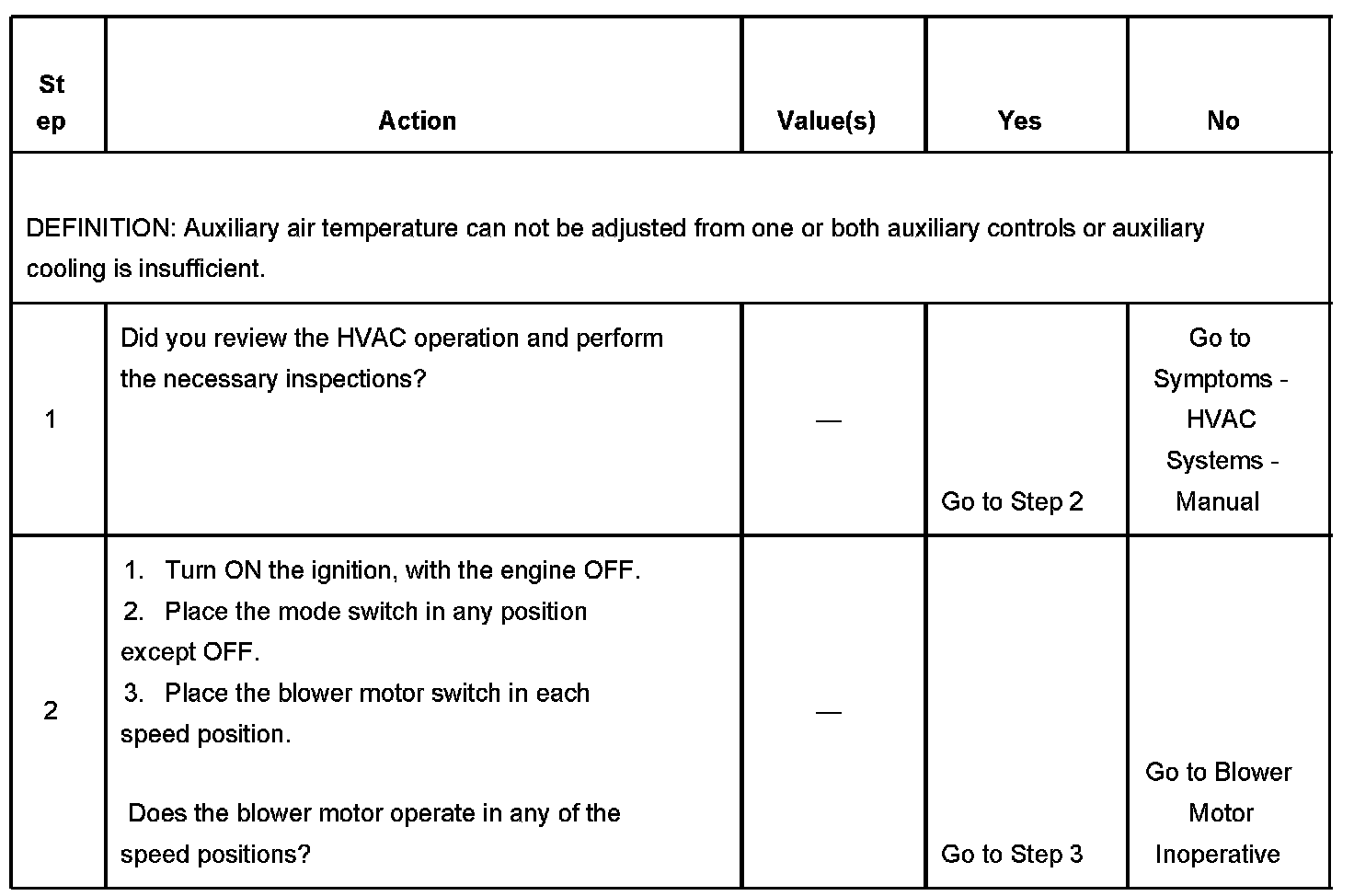

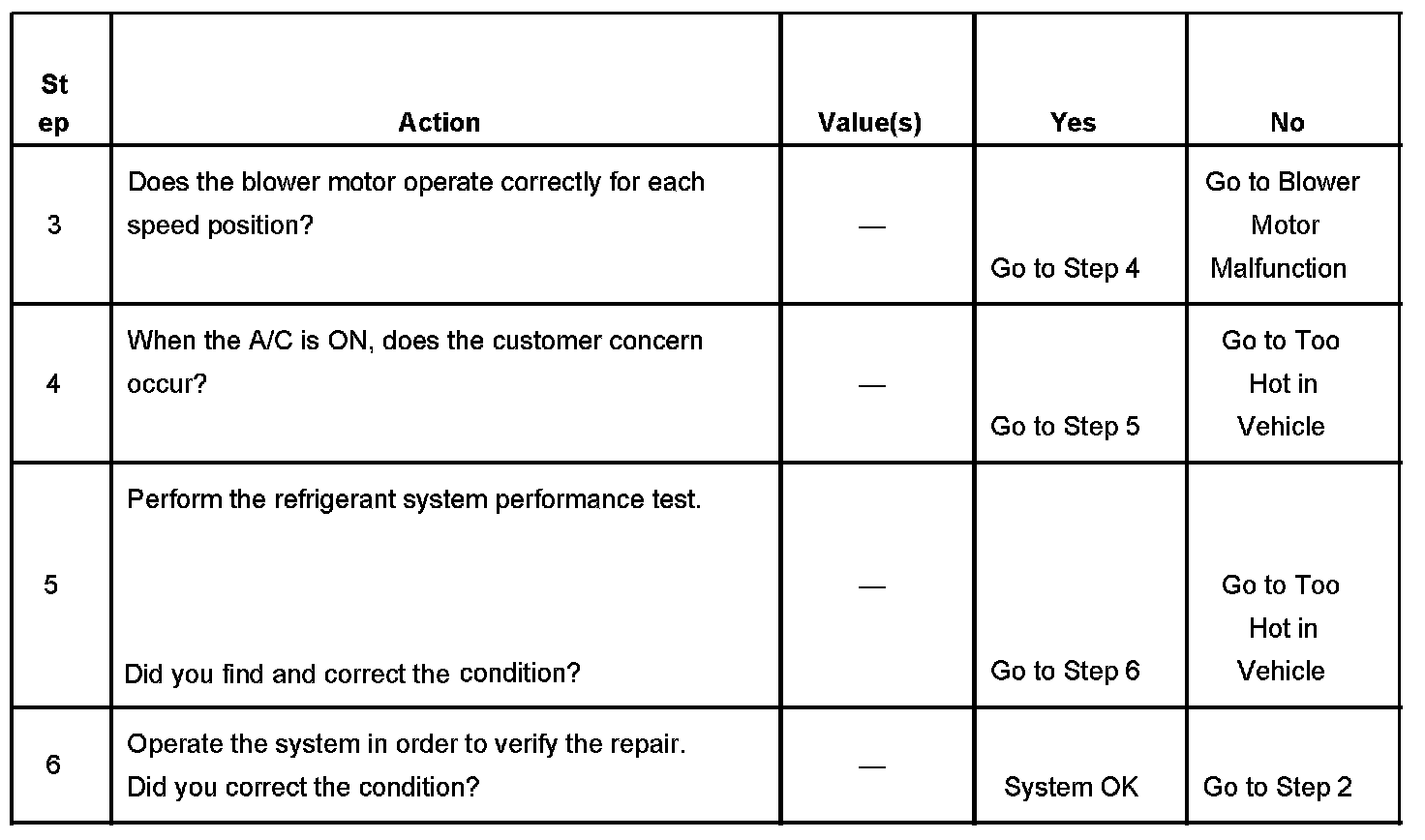

The numbers below refer to the step numbers on the diagnostic table.
5. The specified values are from the A/C System Performance Test. This step links to Too Hot in Vehicle because system shows no sign of concern with auxiliary heater.
