Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Blower Motor Malfunction

Blower Motor Malfunction

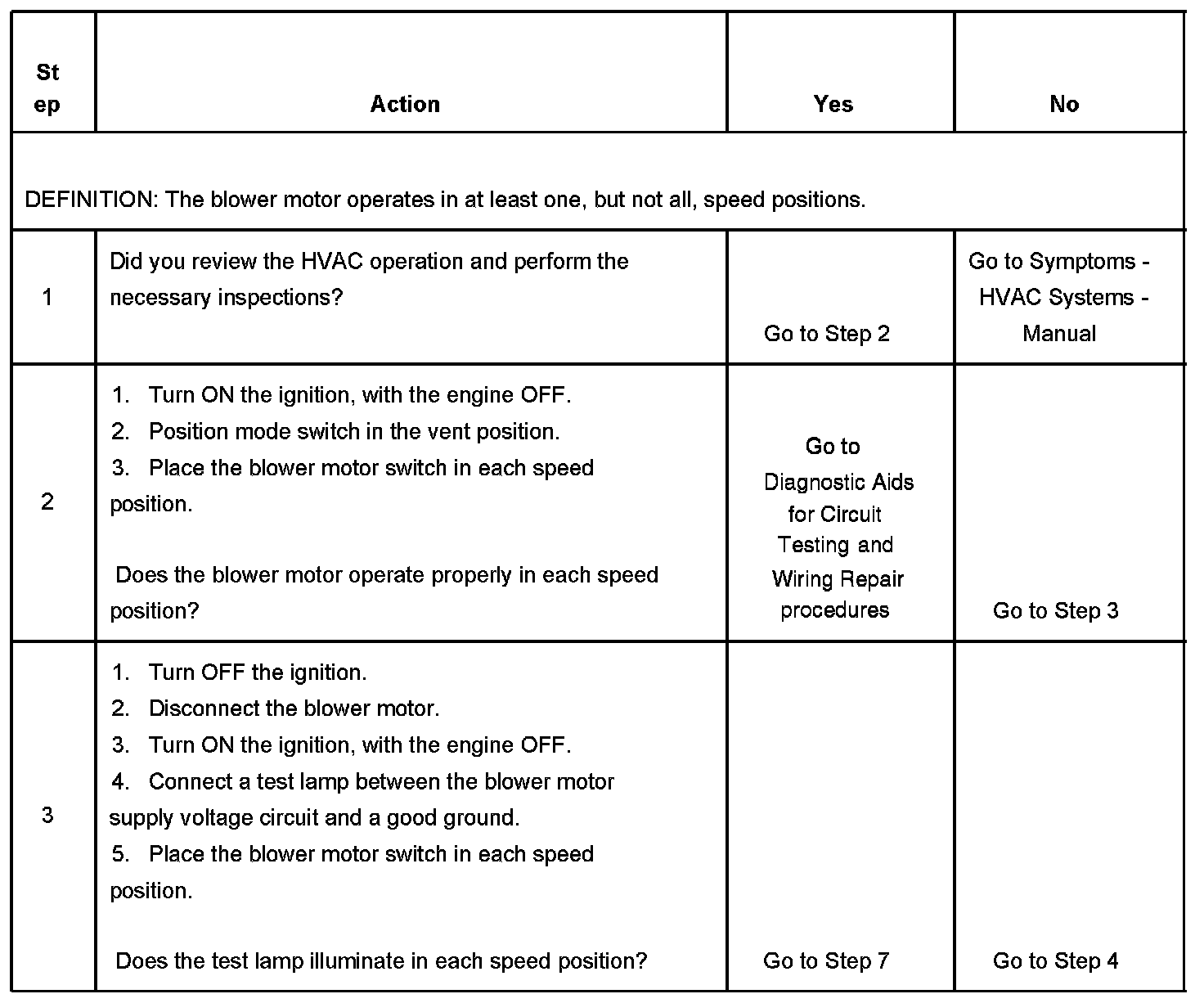

Steps 1-3:

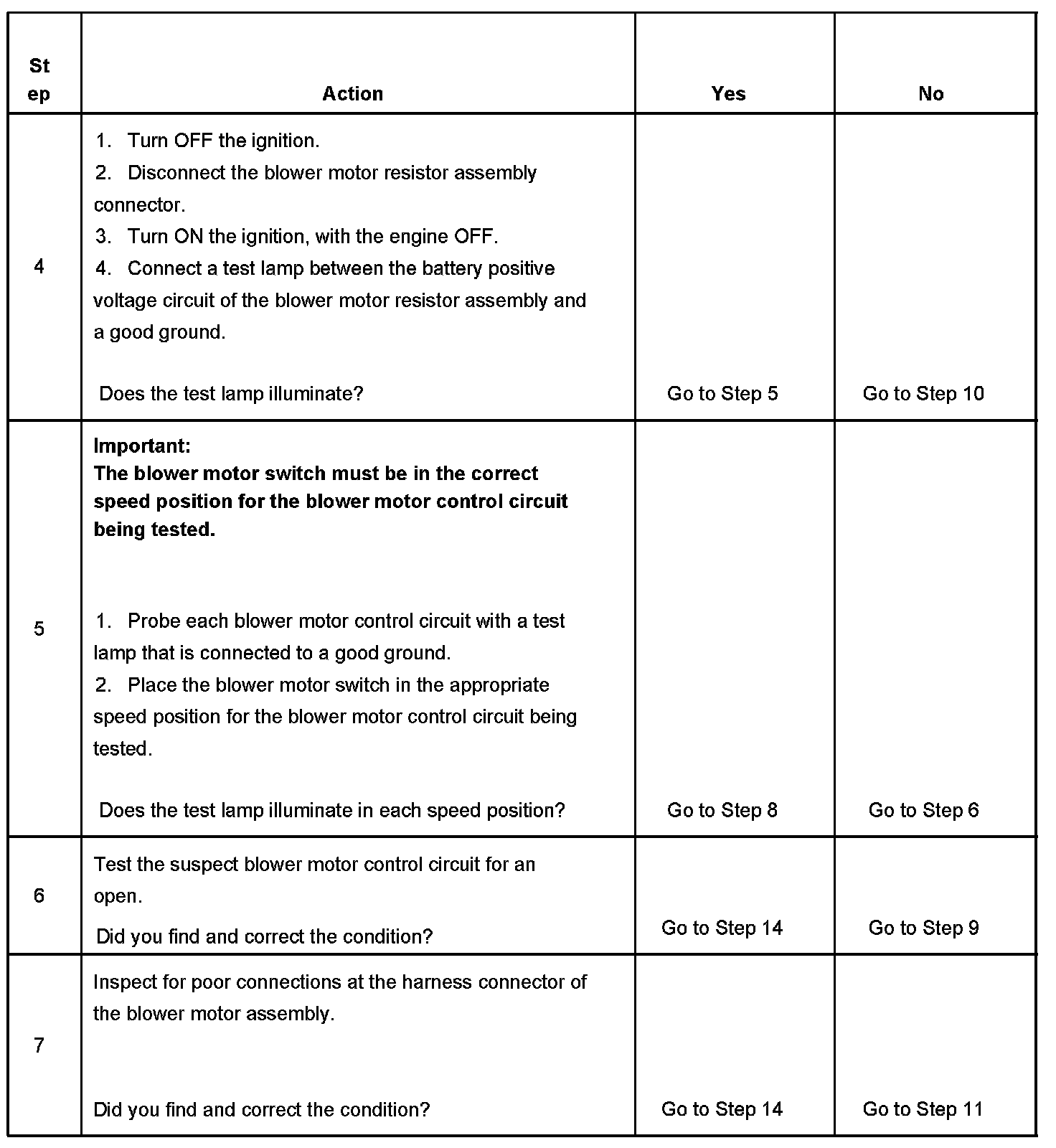

Steps 4-7:



Steps 8-14:
