Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Blower Motor Always On - Auxiliary

Blower Motor Always On - Auxiliary

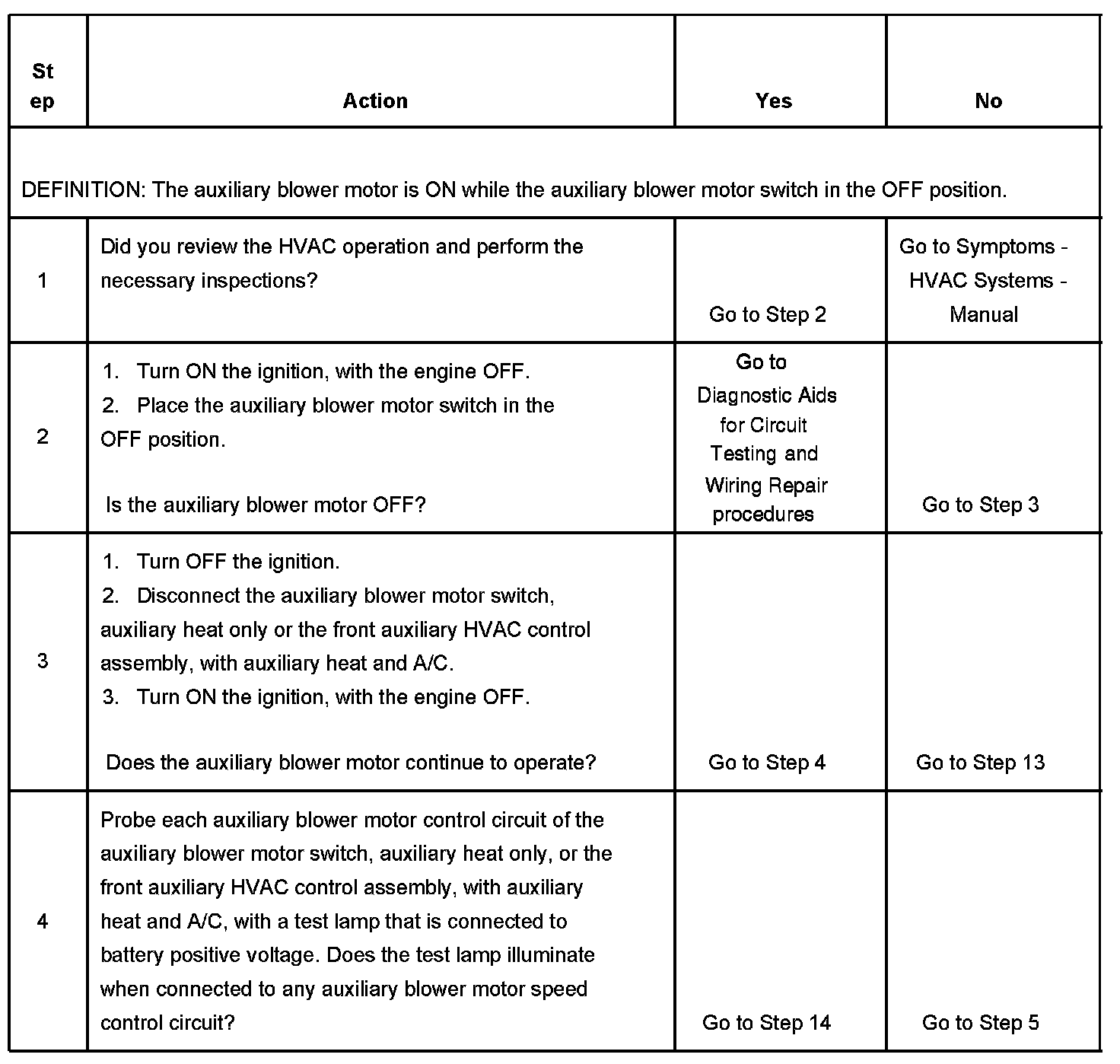

Steps 1-4:

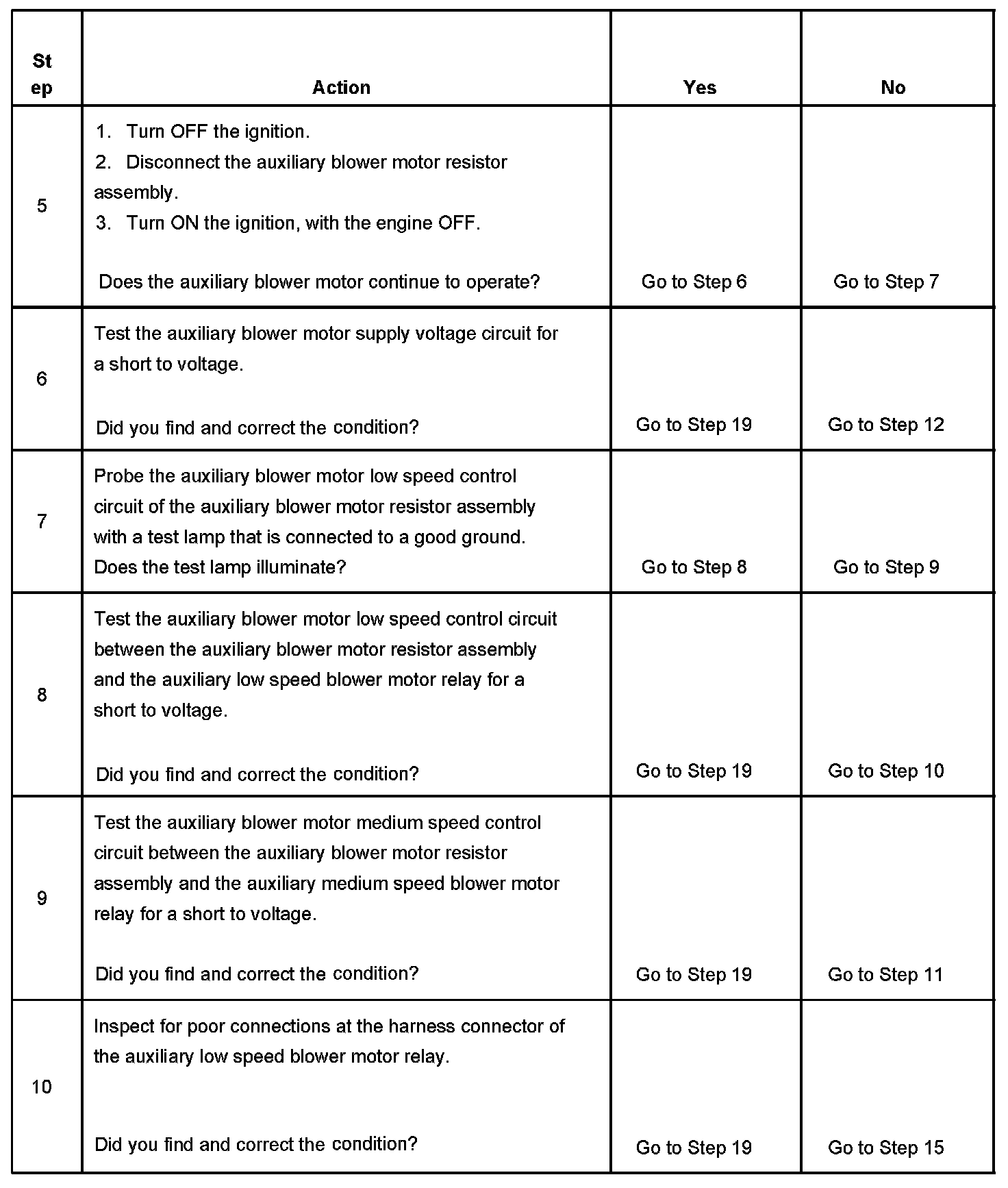

Steps 5-10:

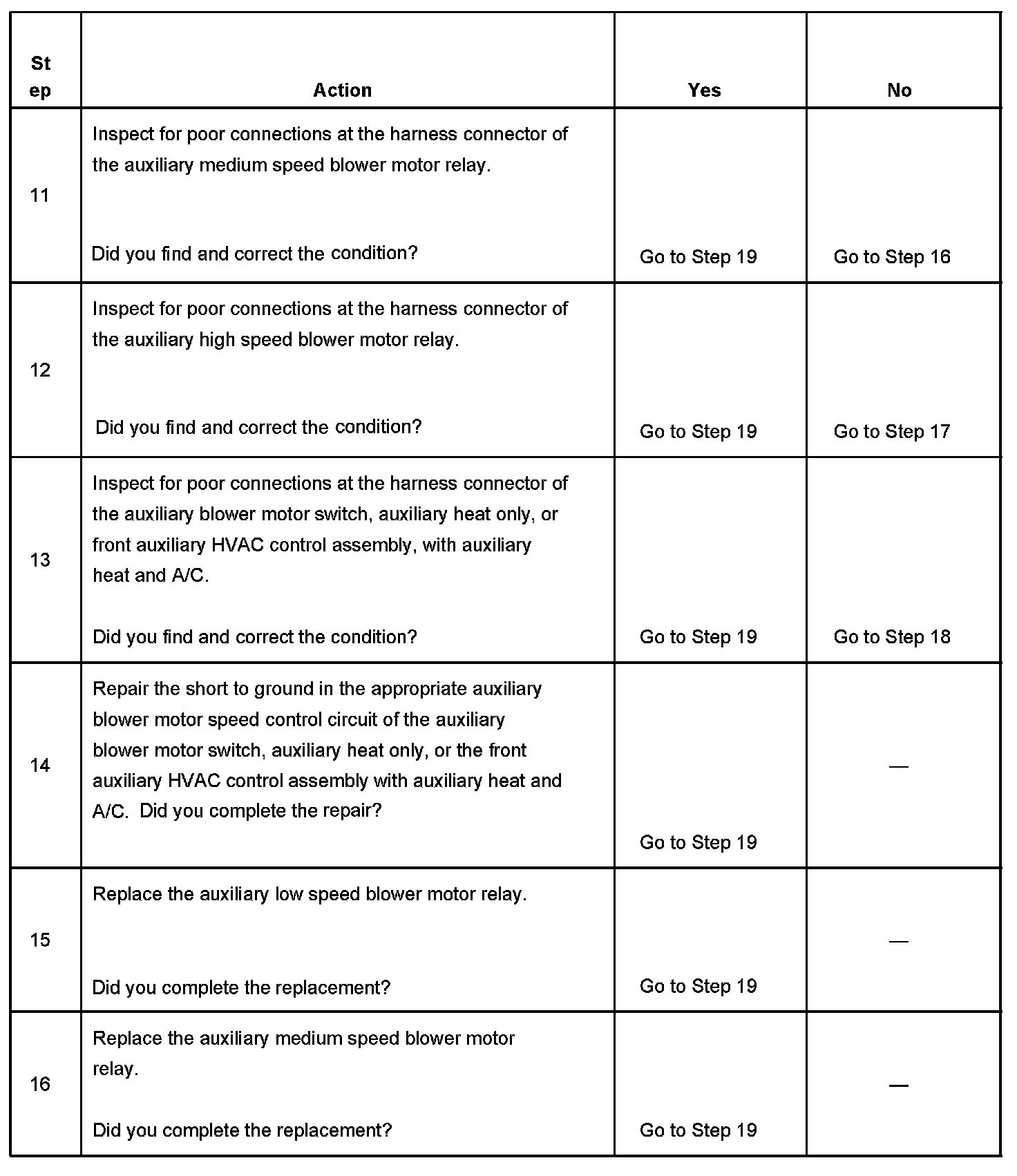

Steps 11-16:

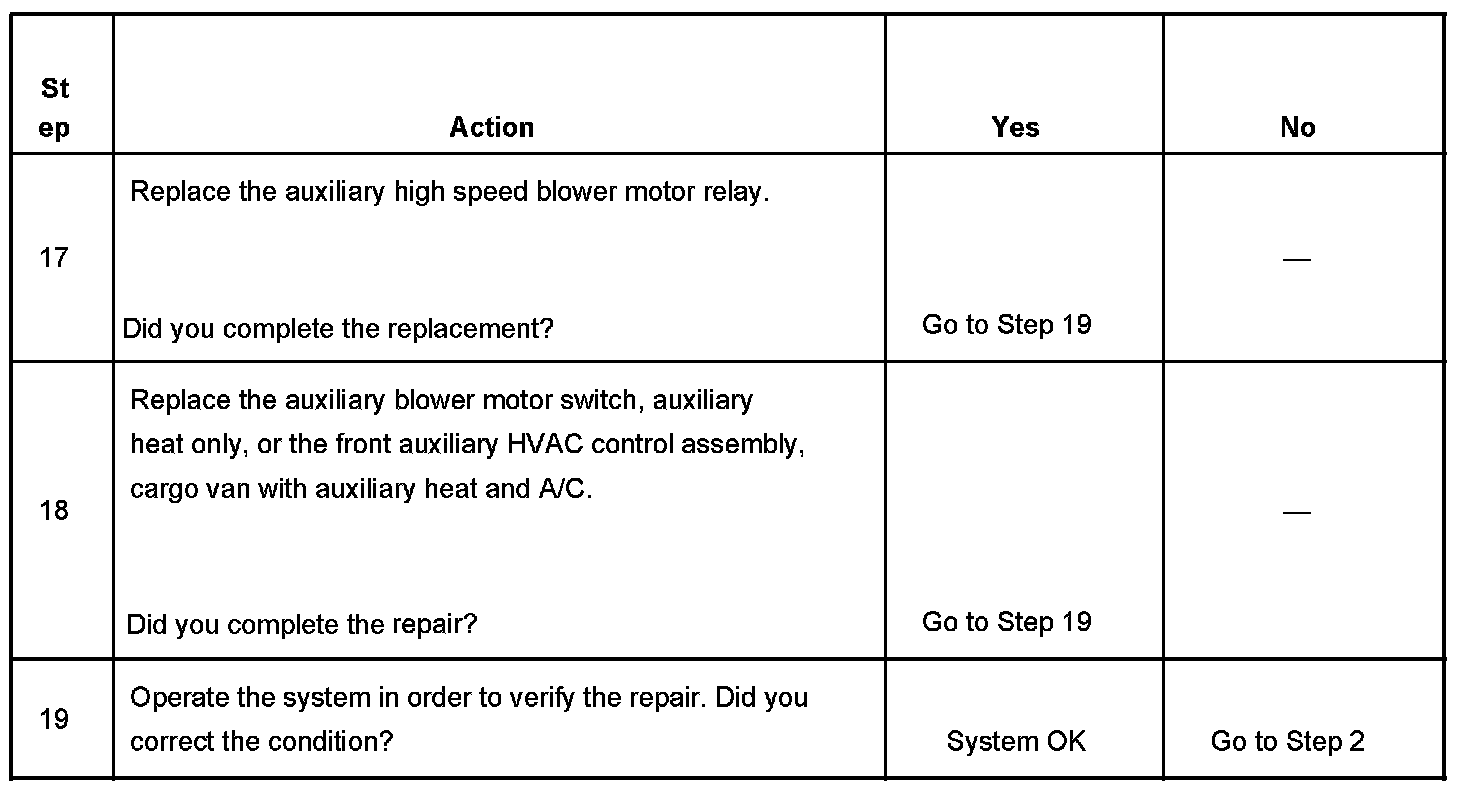

Steps 17-19:
