Passenger Van With Auxiliary A/C

AIR DELIVERY IMPROPER - AUXILIARY (PASSENGER VAN W/AUX)

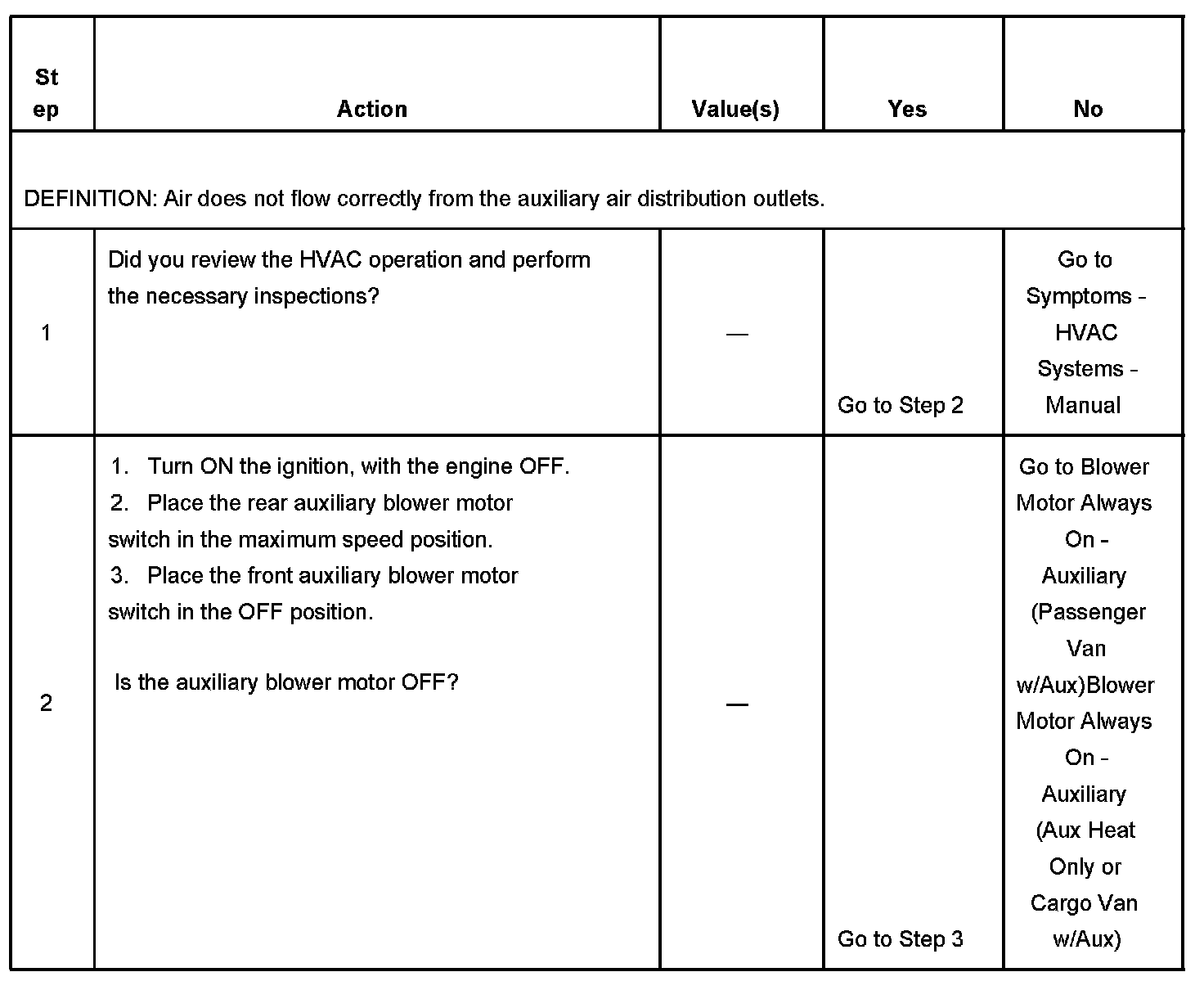

Steps 1-2:




Steps 3-6:

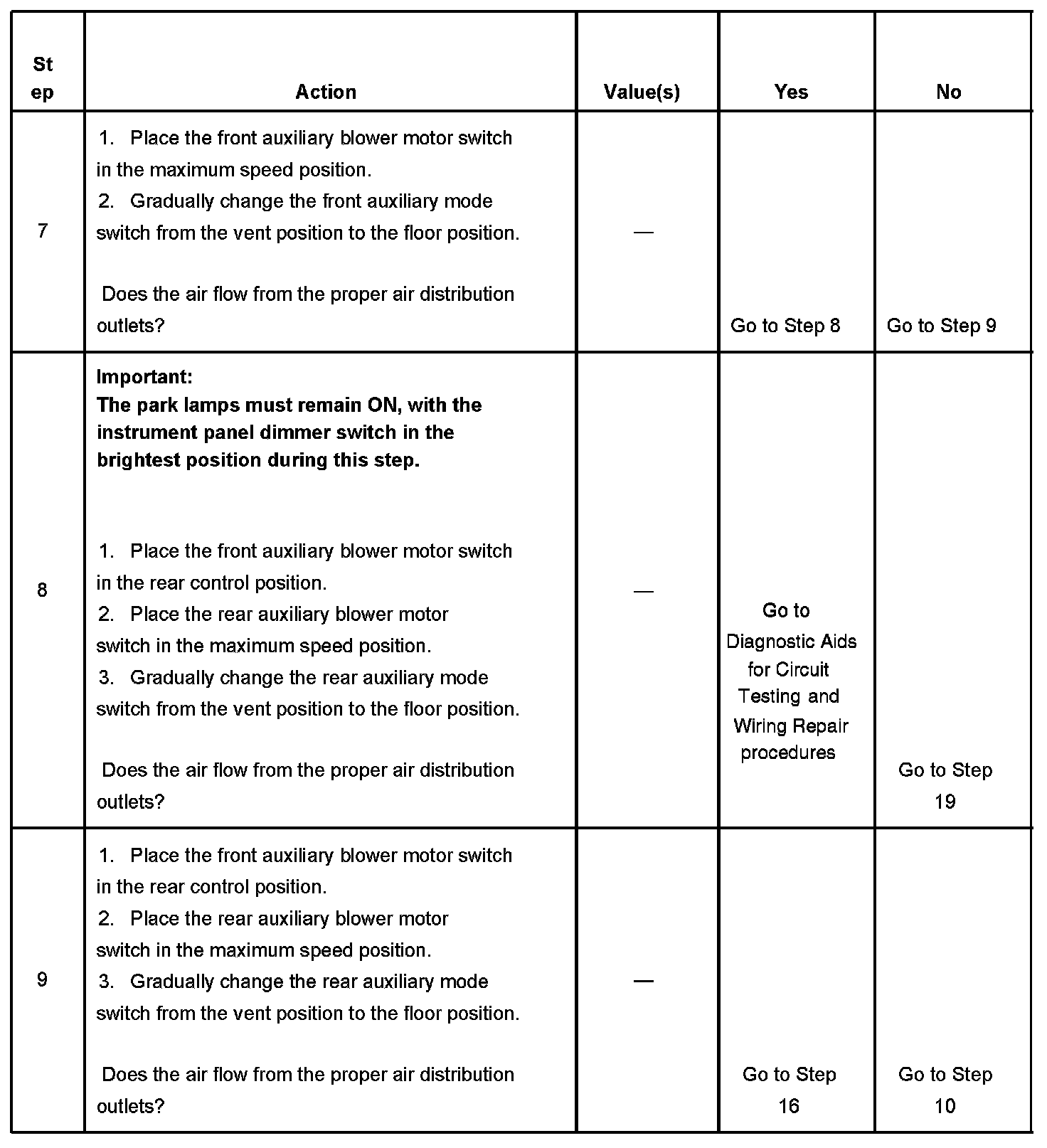

Steps 7-9:

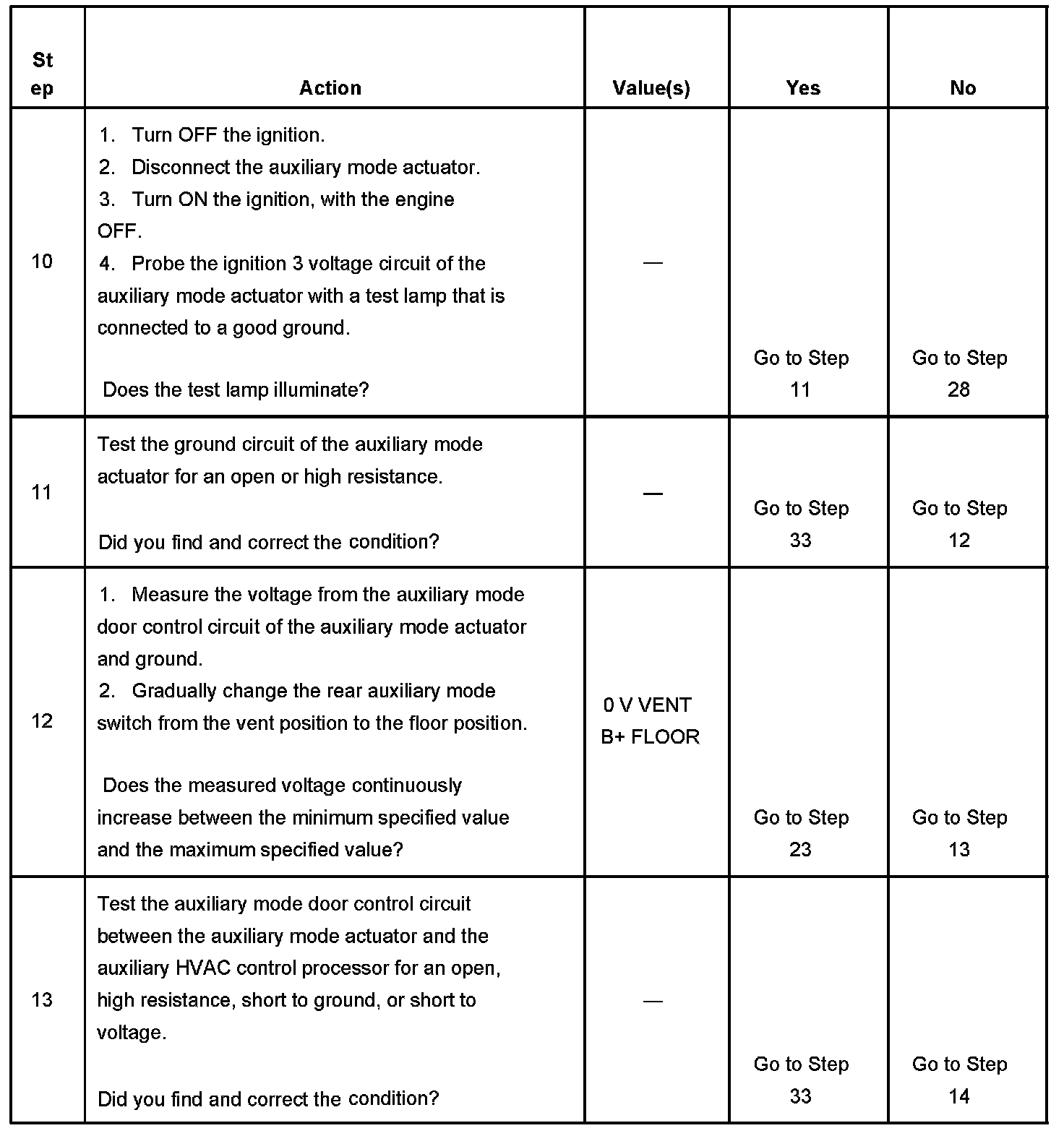

Steps 10-13:

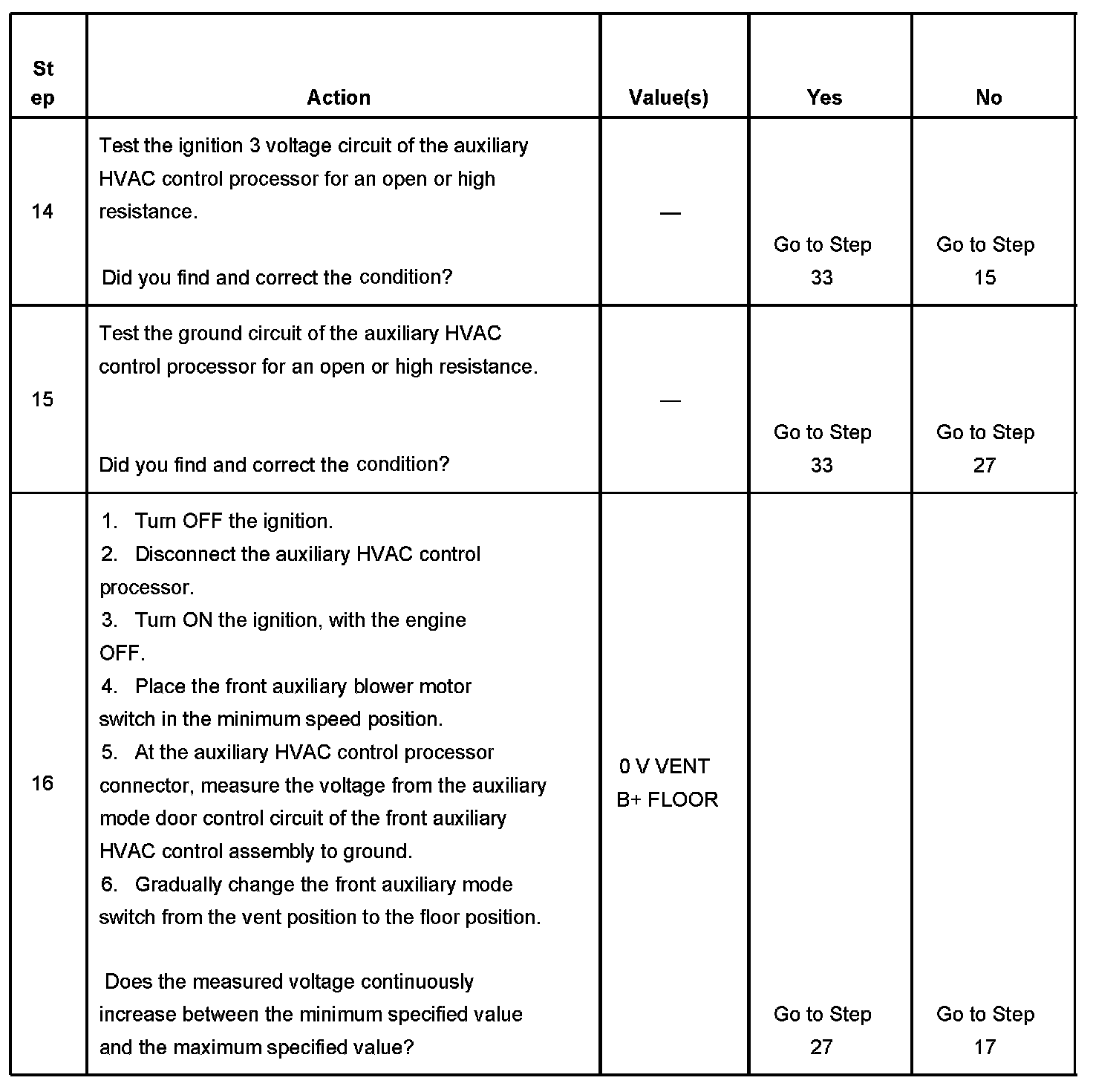

Steps 14-16:

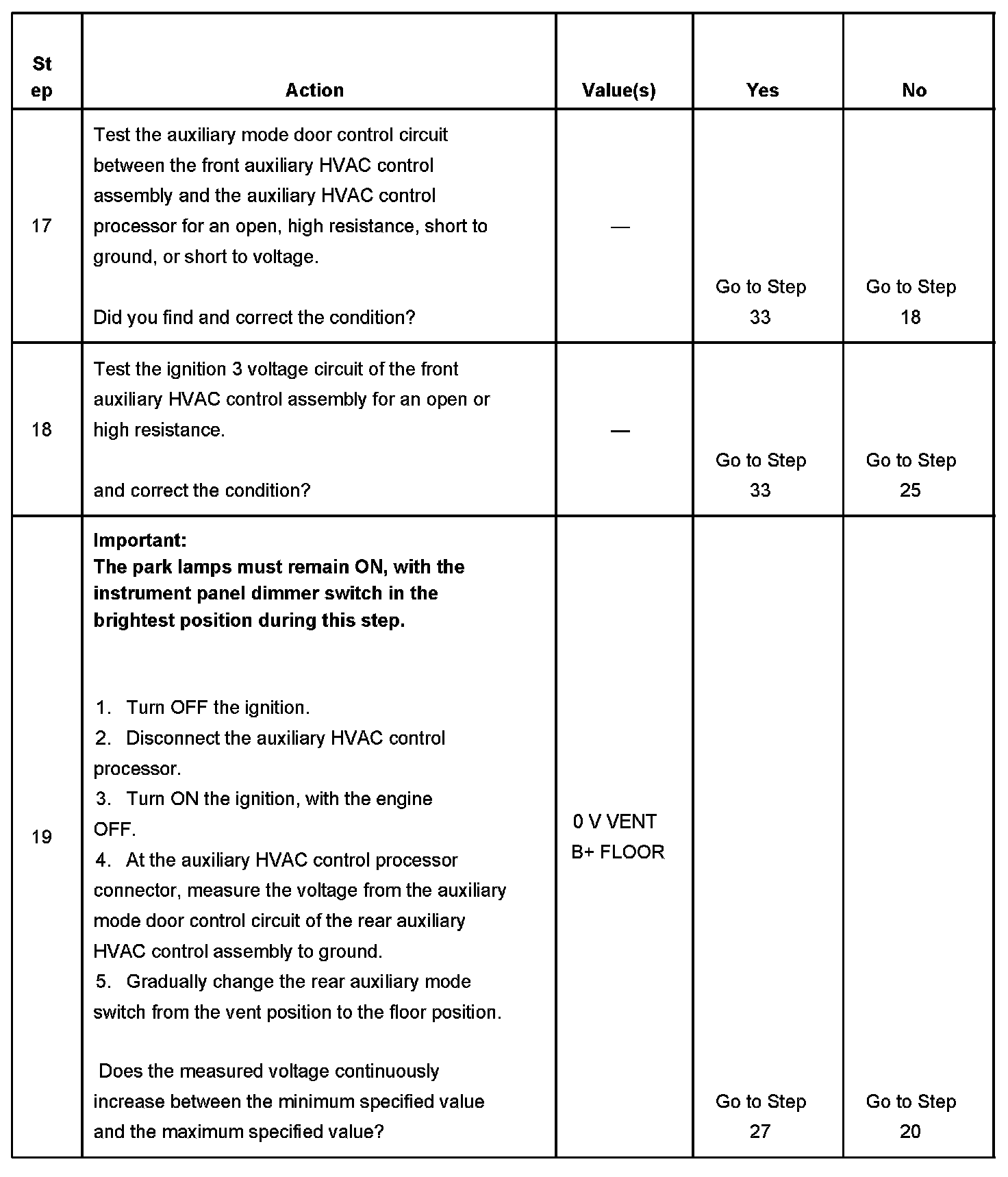

Steps 17-19:

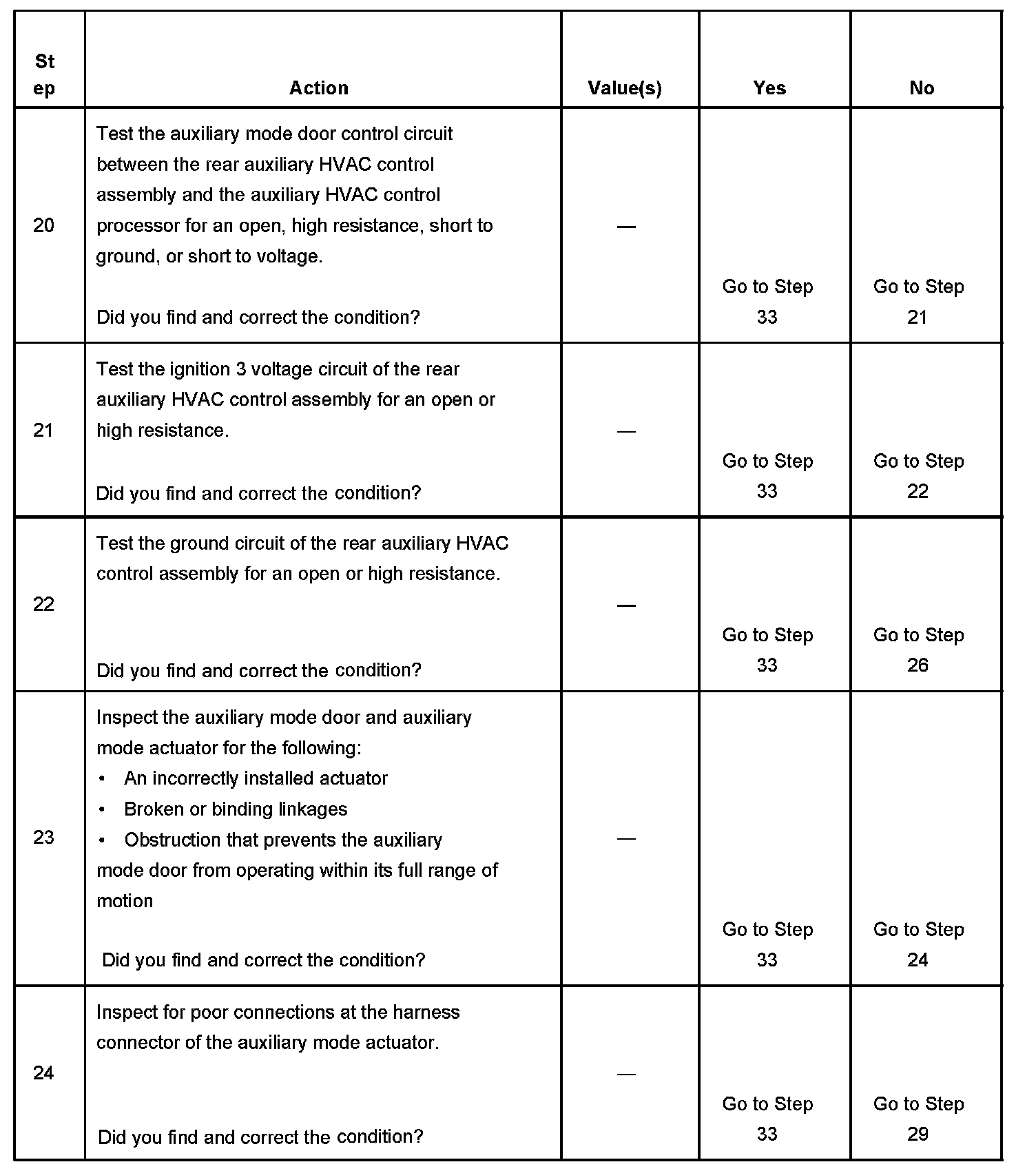

Steps 20-24:

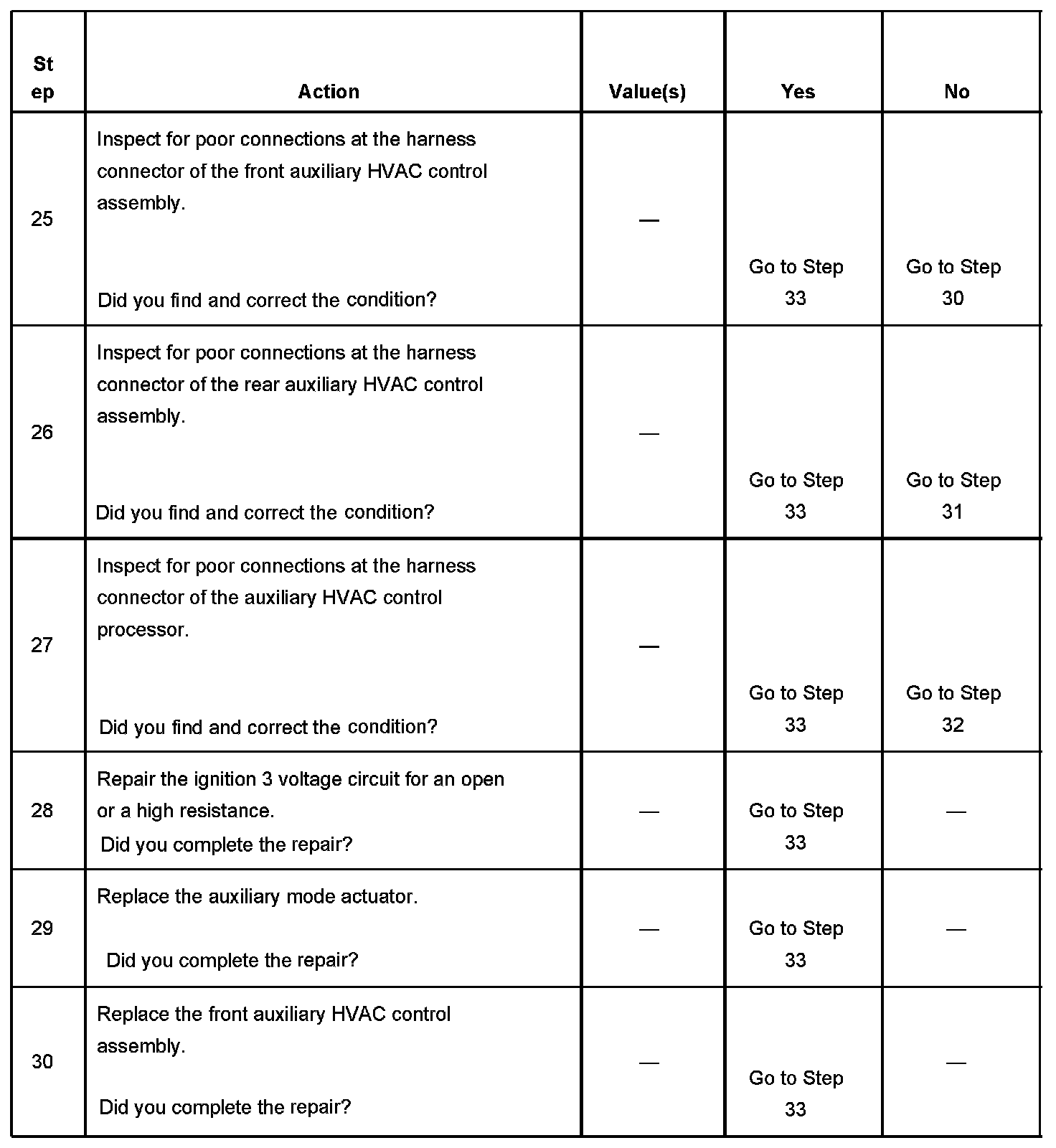

Steps 25-30:




Steps 31-33:
