Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Air Delivery Improper - Auxiliary >> Cargo Van With Auxiliary A/C

Cargo Van With Auxiliary A/C

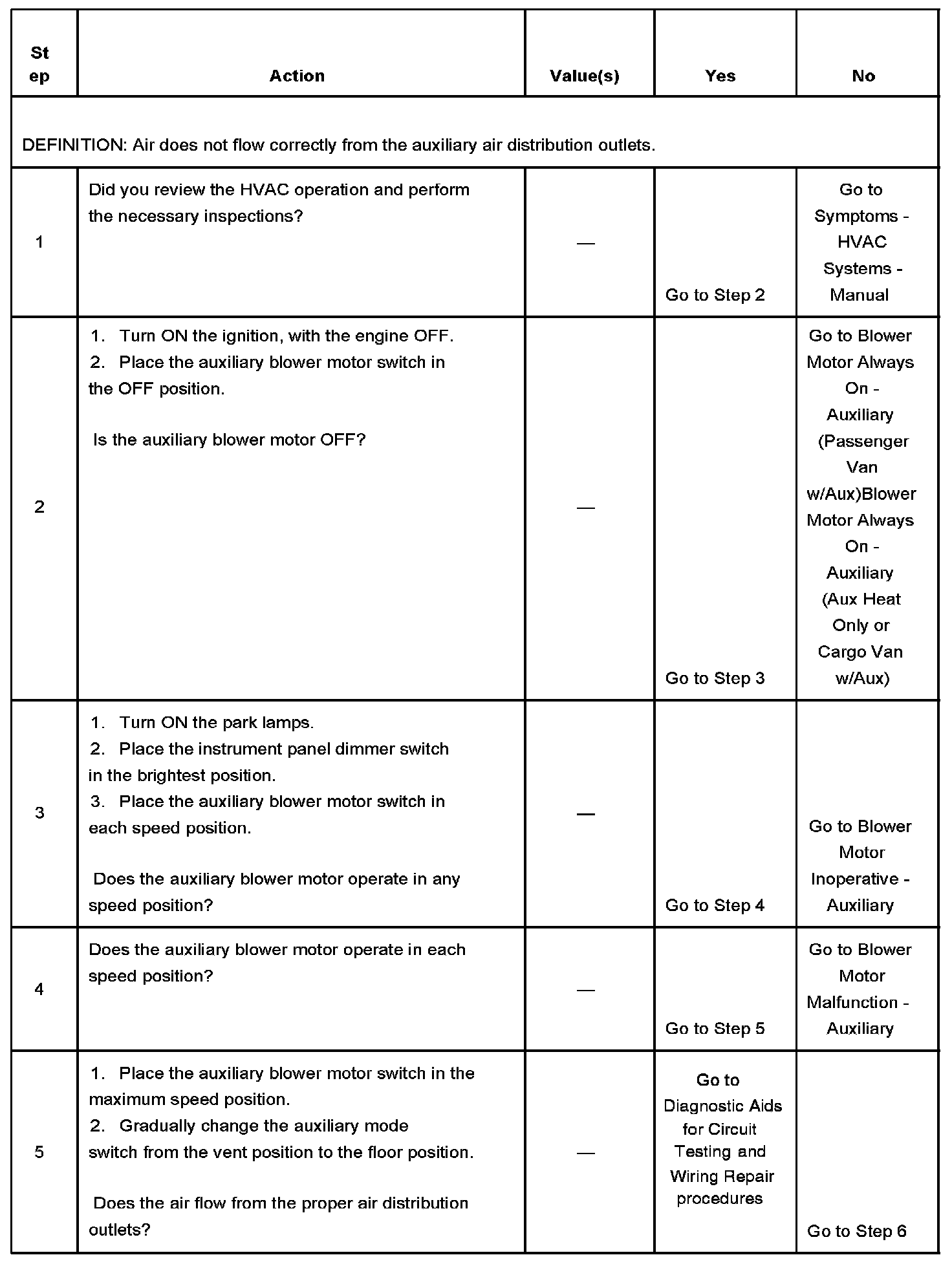

Steps 1-5:



Steps 6-10:

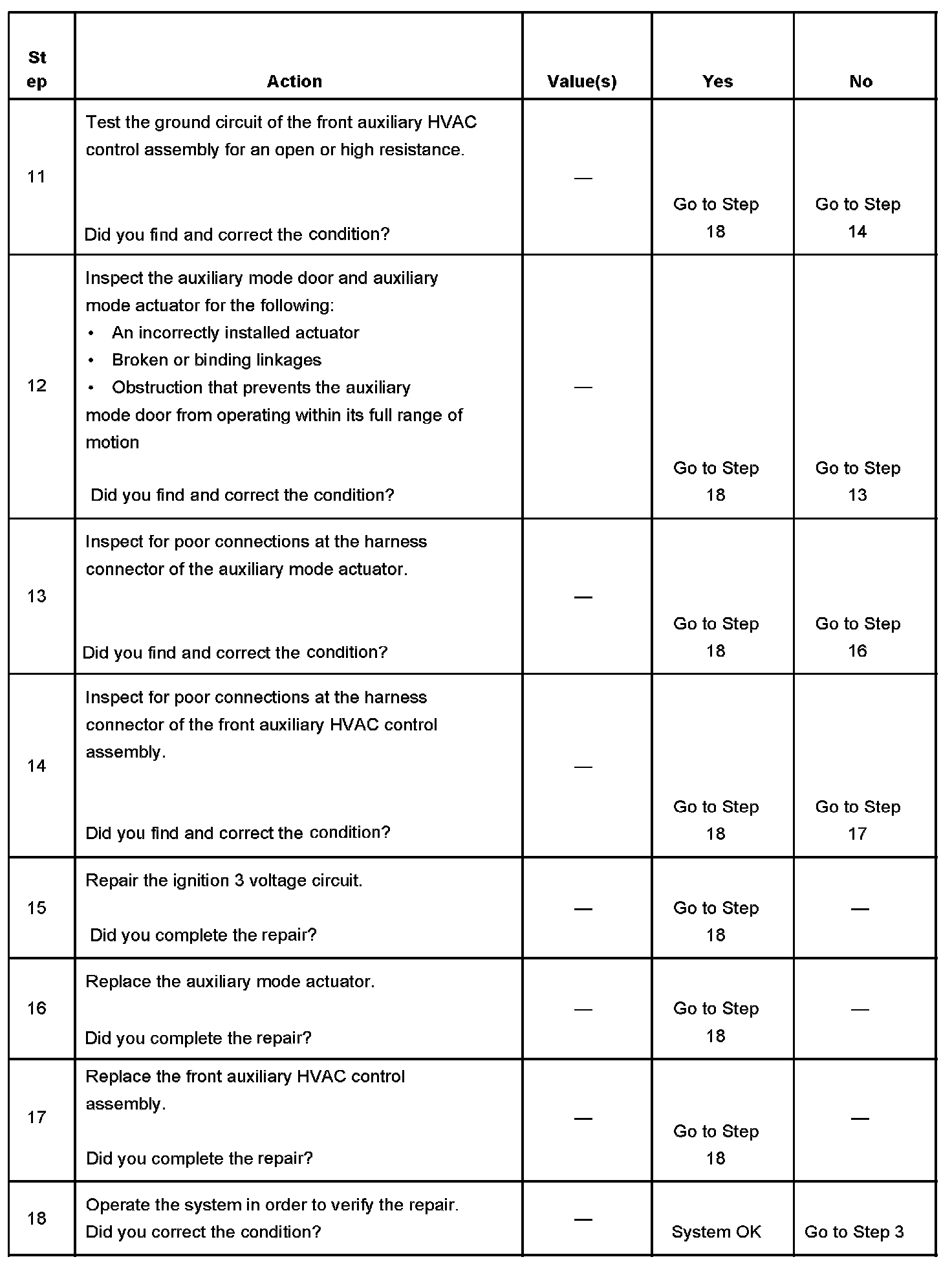

Steps 11-18:
