Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Noise Diagnosis - Blower Motor

Noise Diagnosis - Blower Motor

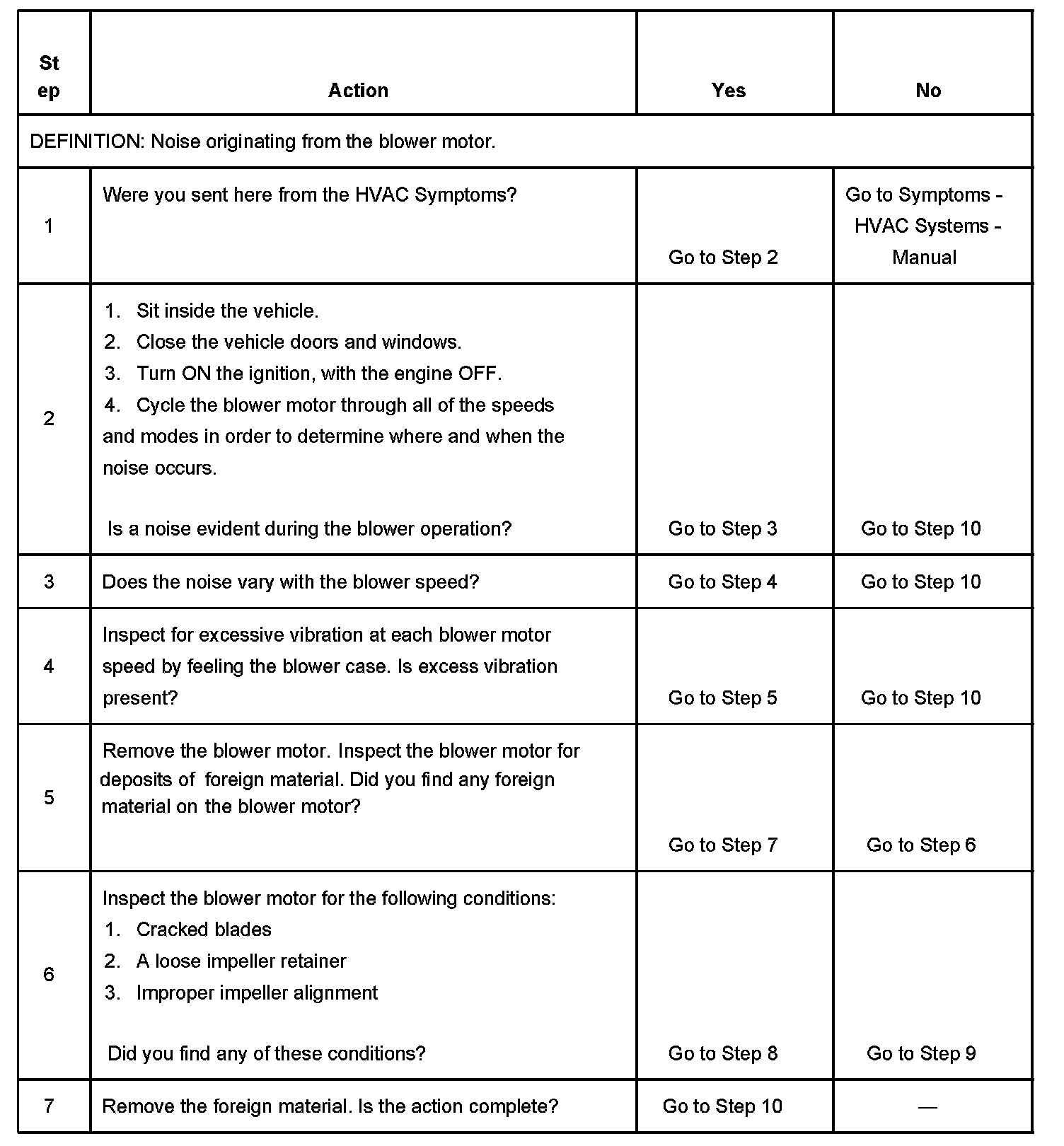

Steps 1-7:

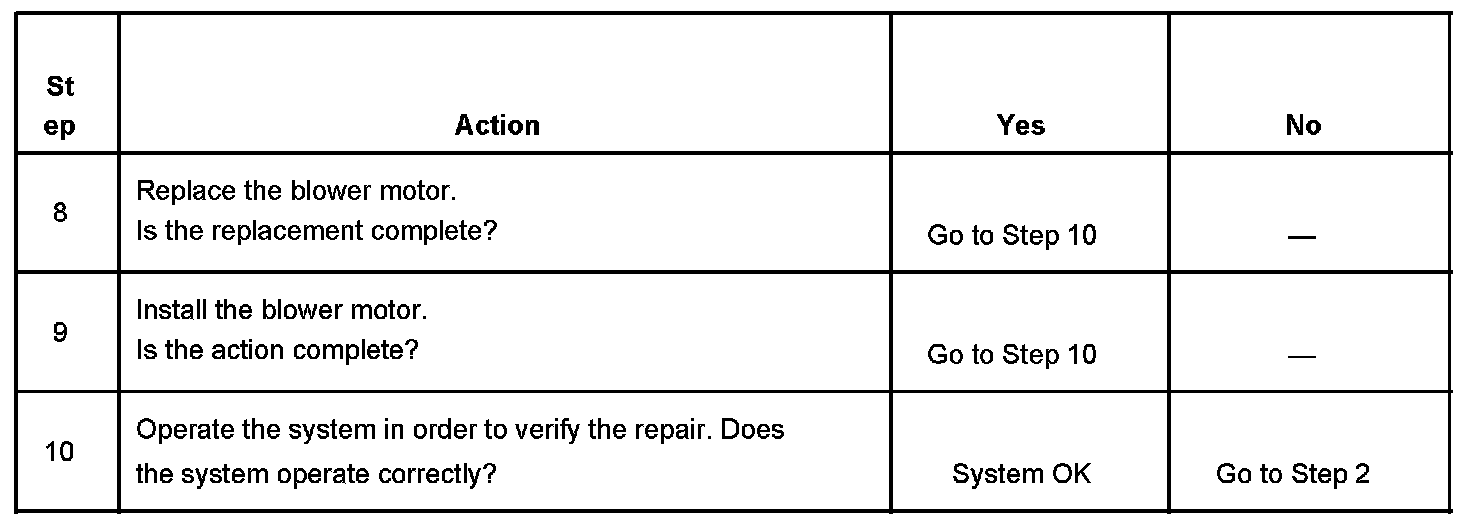

Steps 8-10:
