FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2003
>>
Express 1/2 Ton Van AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Noise Diagnosis - A/C System
Noise Diagnosis - A/C System

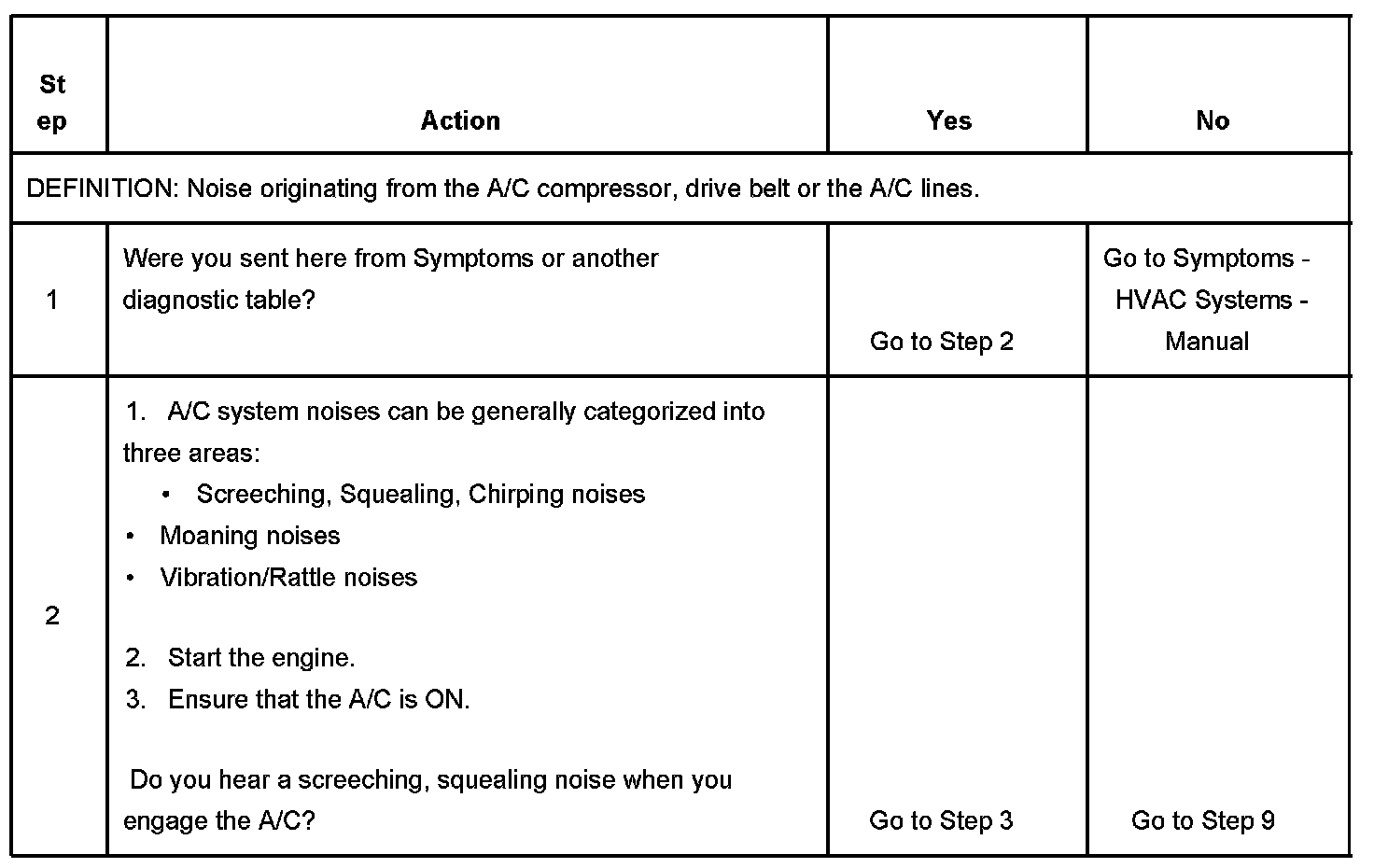

Steps 1-2:

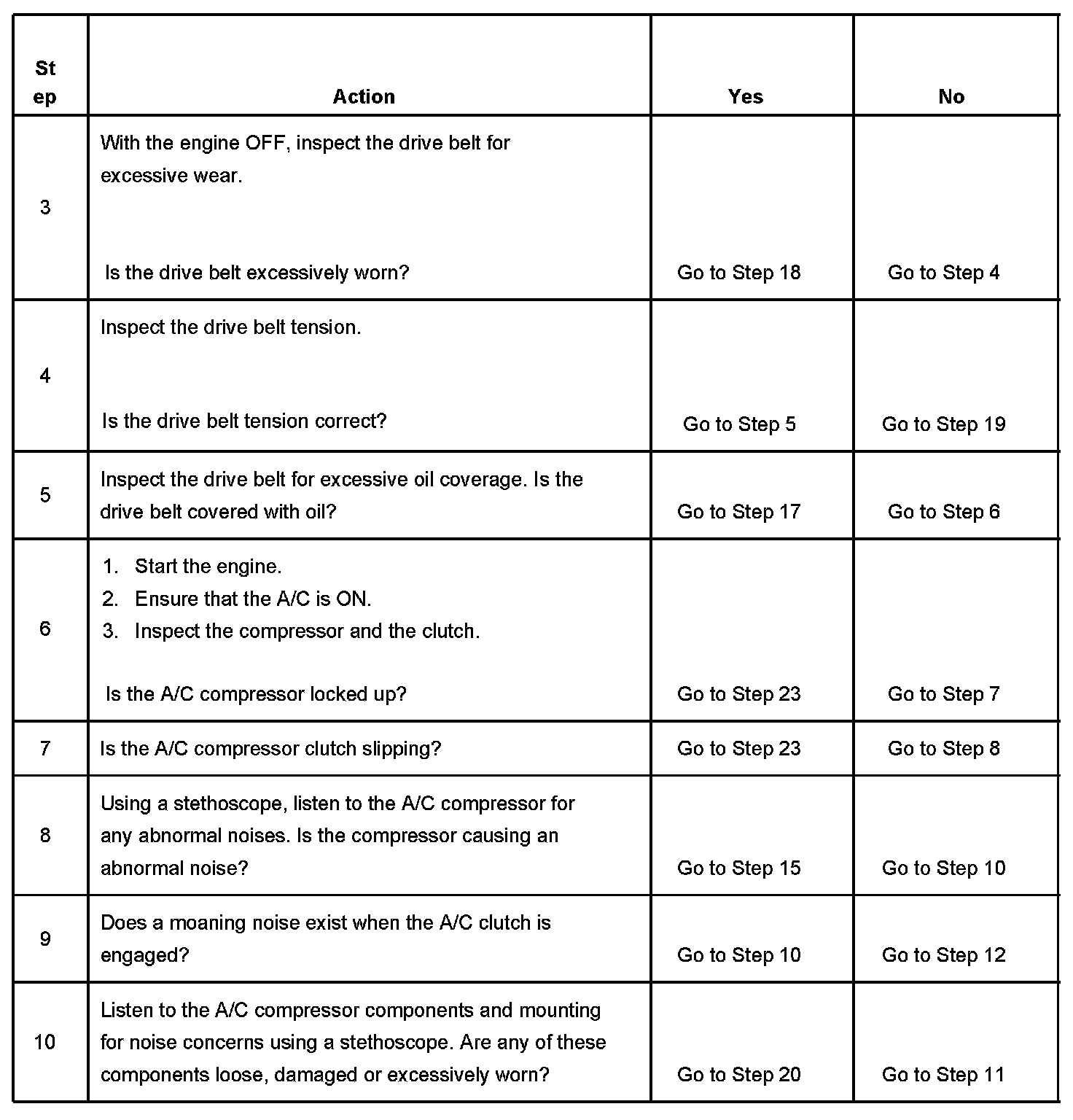

Steps 3-10:

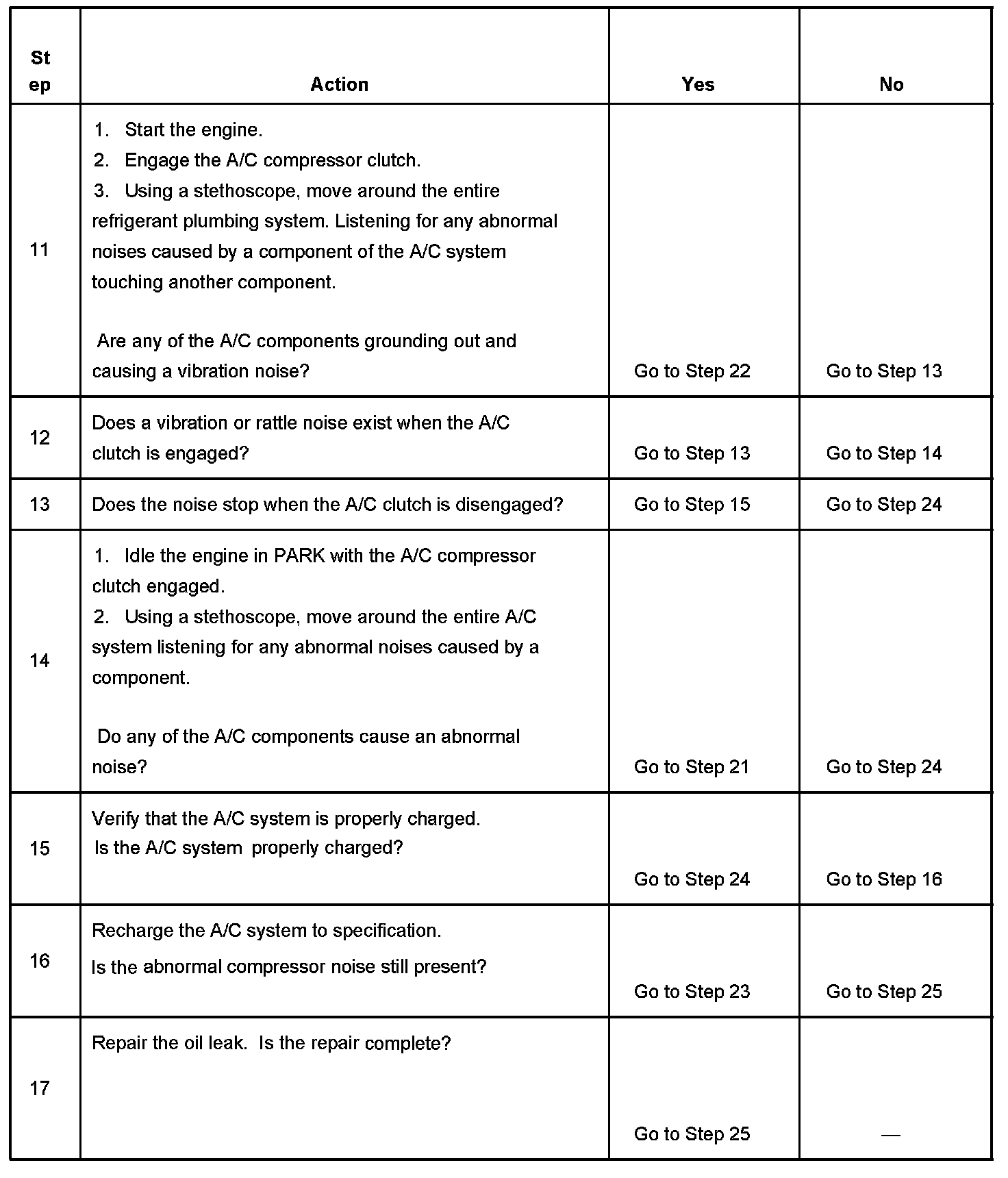

Steps 11-17:

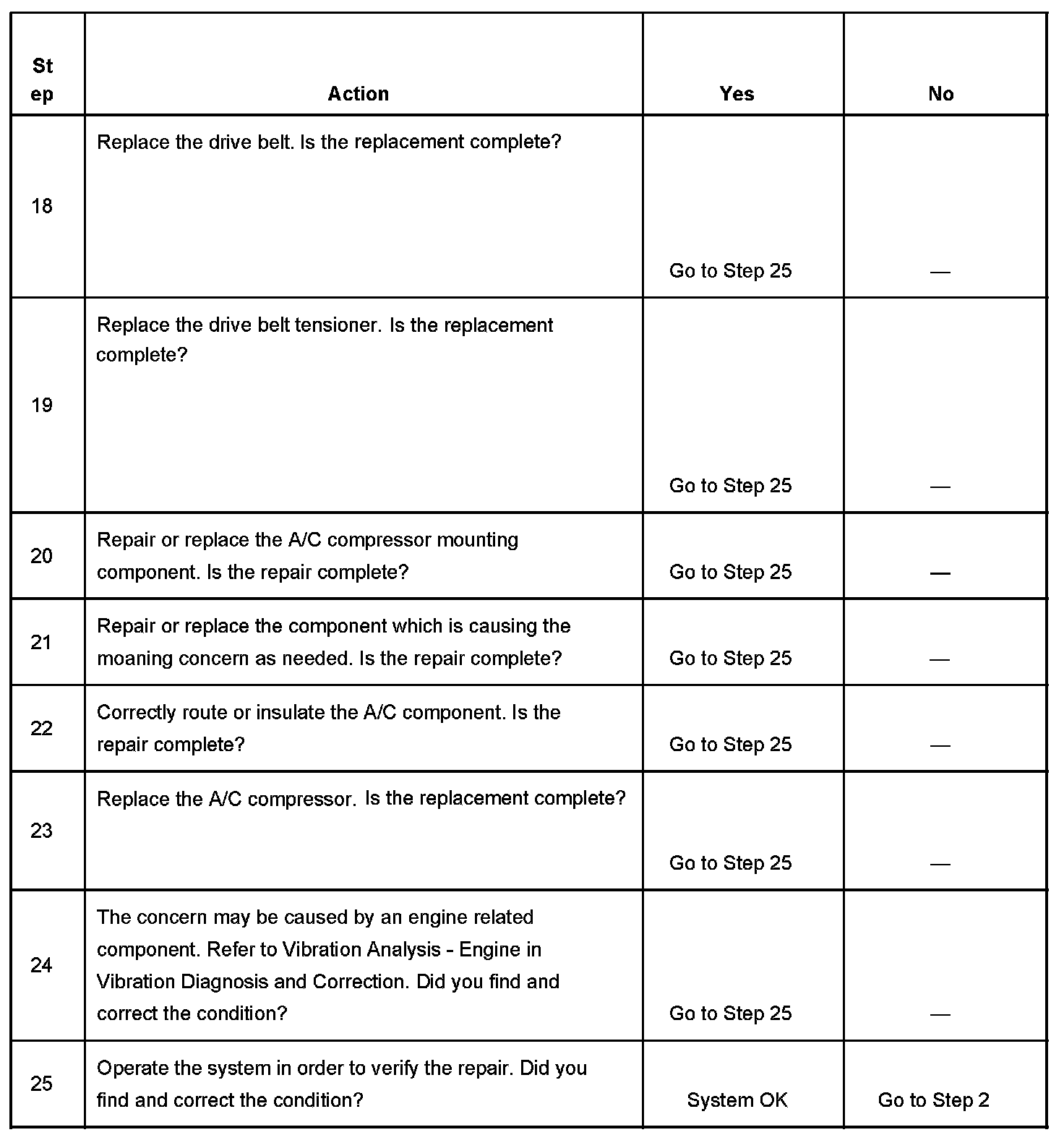

Steps 18-25:
