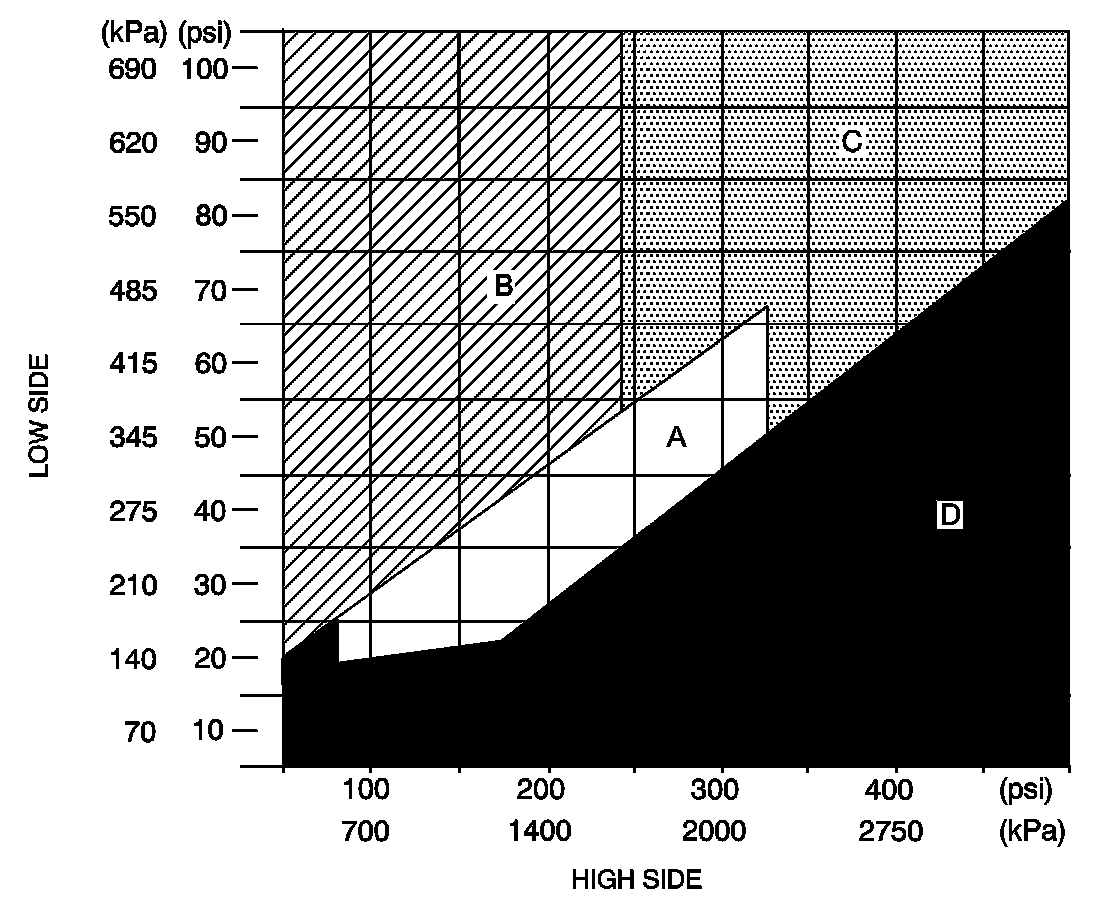

A/C System Pressure - Zone Classification

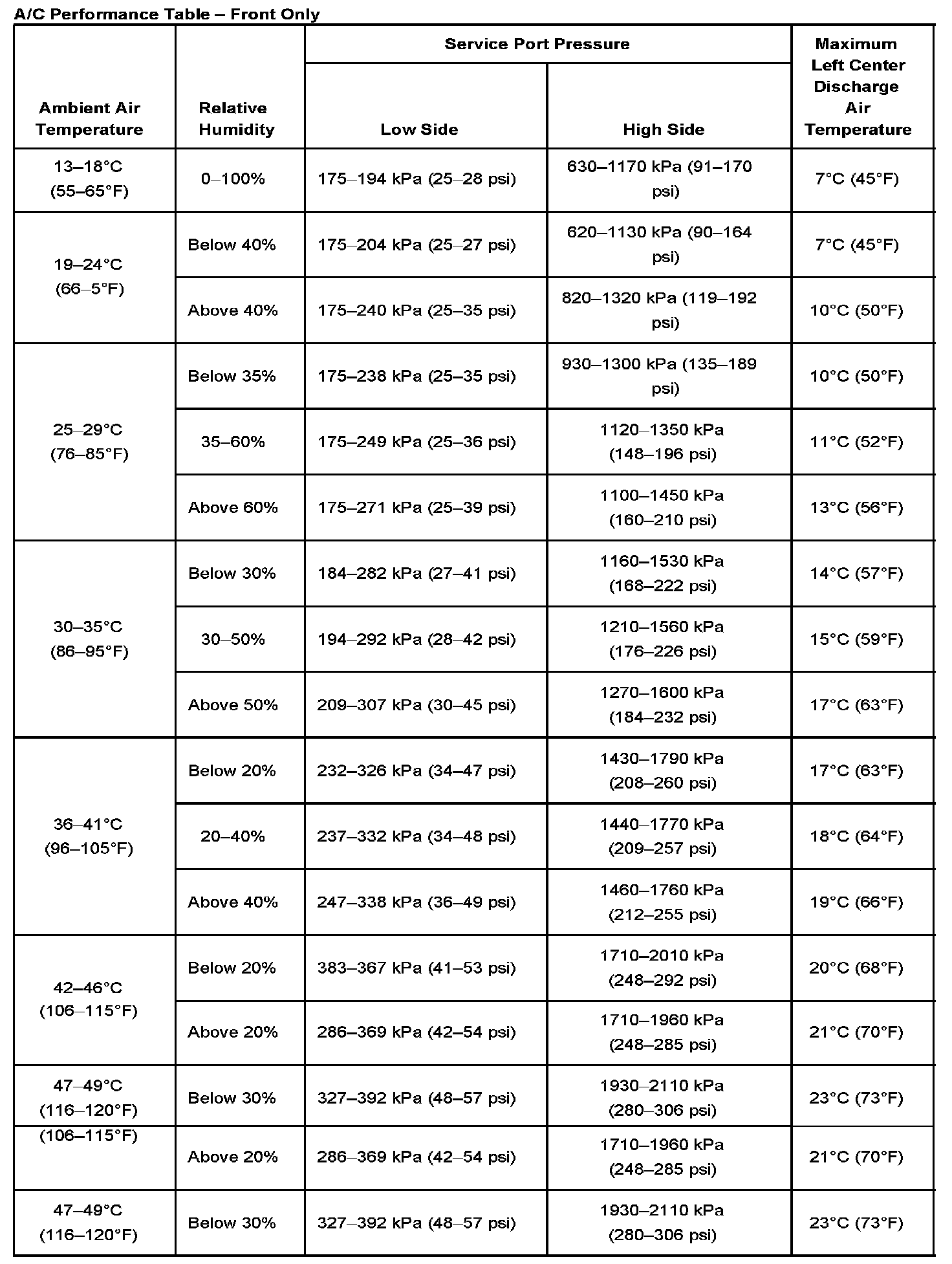

A/C Performance Table - Front Only Part 1:

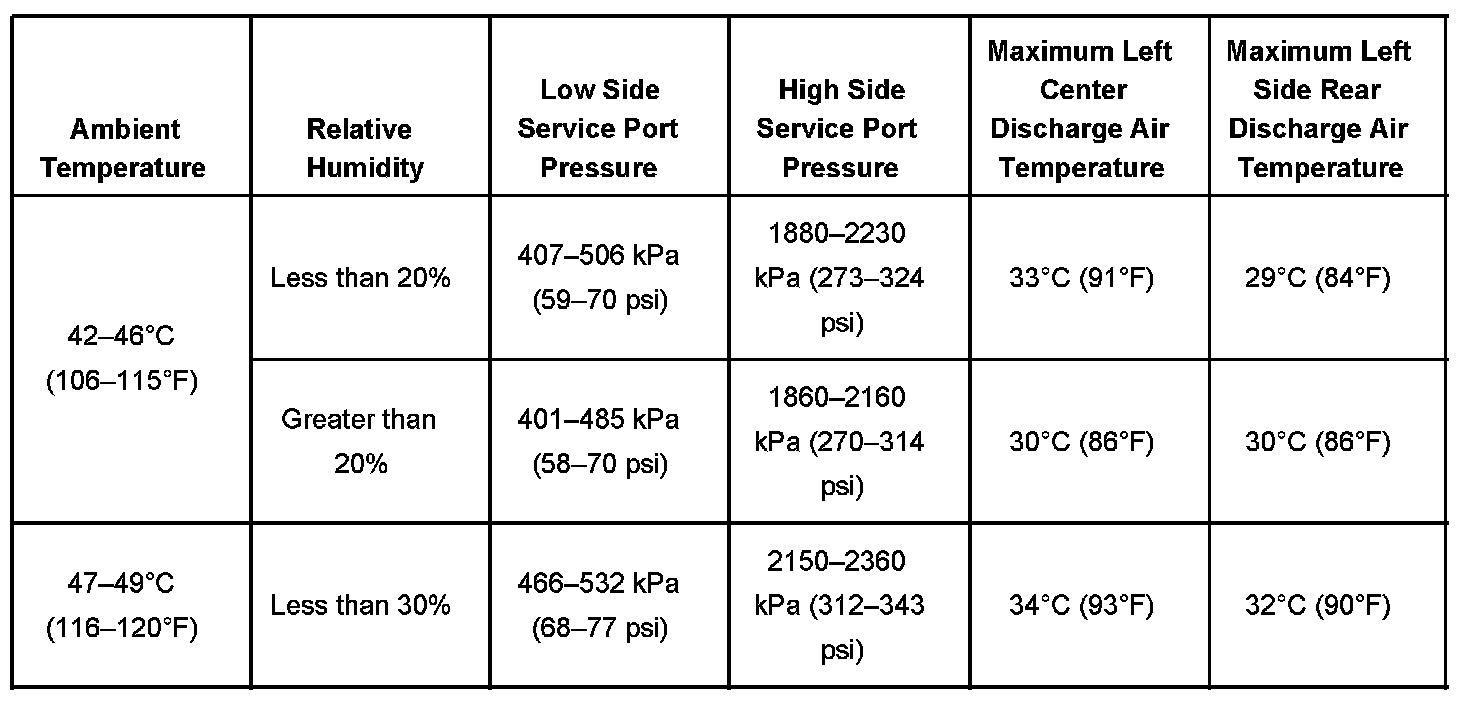

A/C Performance Table - Front Only Part 2:

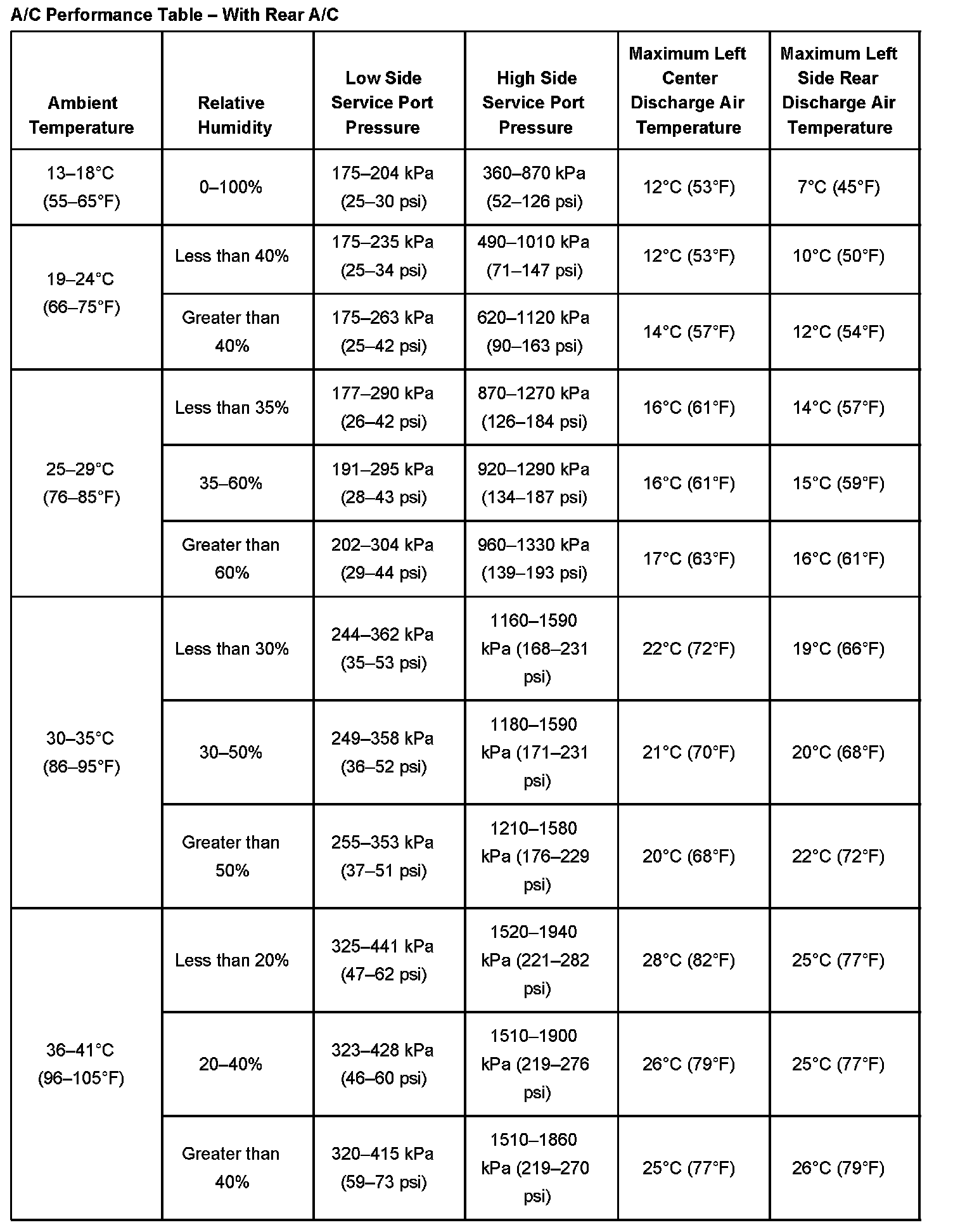

A/C Performance Table - With Rear A/C Part 1:

A/C Performance Table - With Rear A/C Part 2:

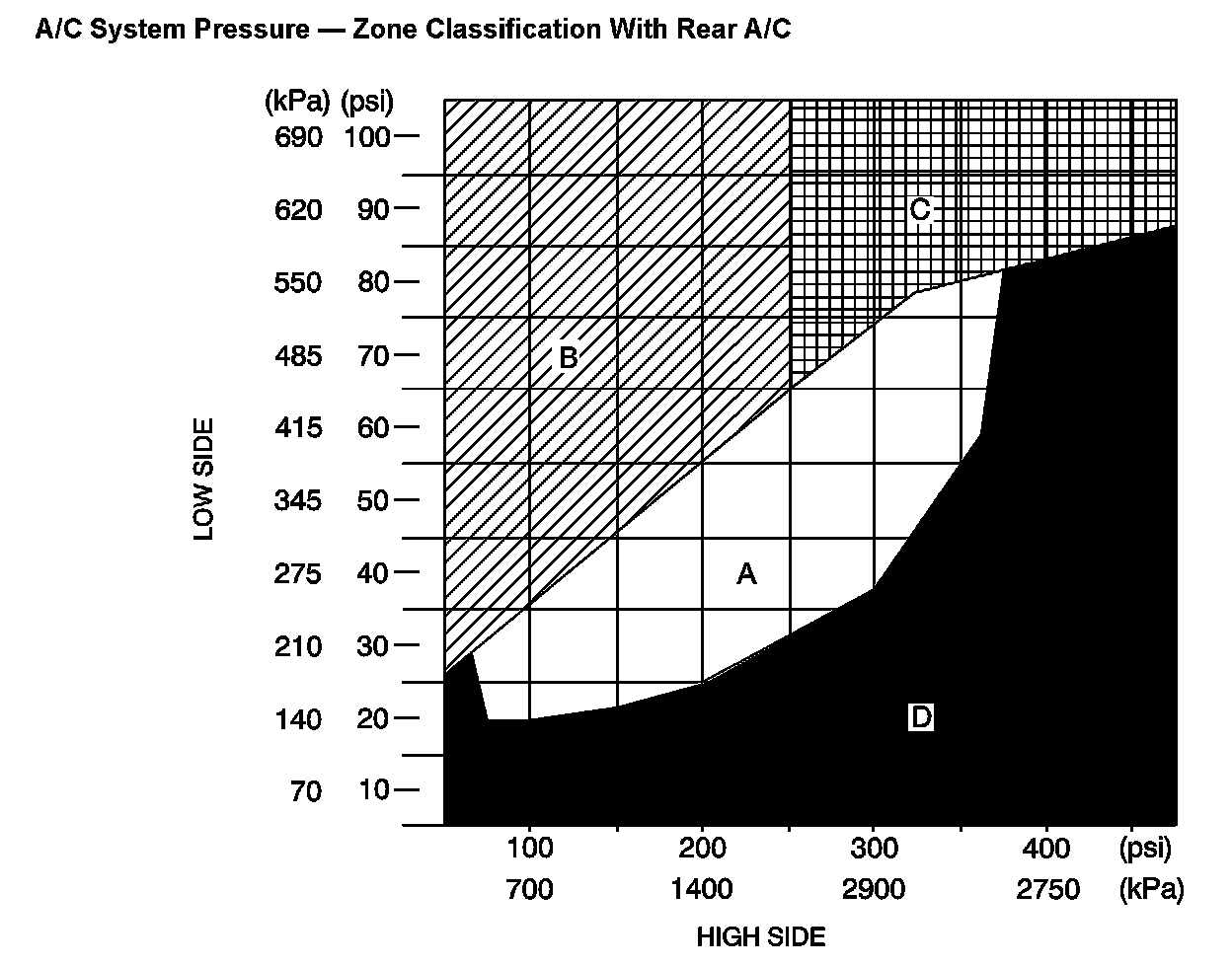

A/C System Pressure - Zone Classification With Rear A/C:
