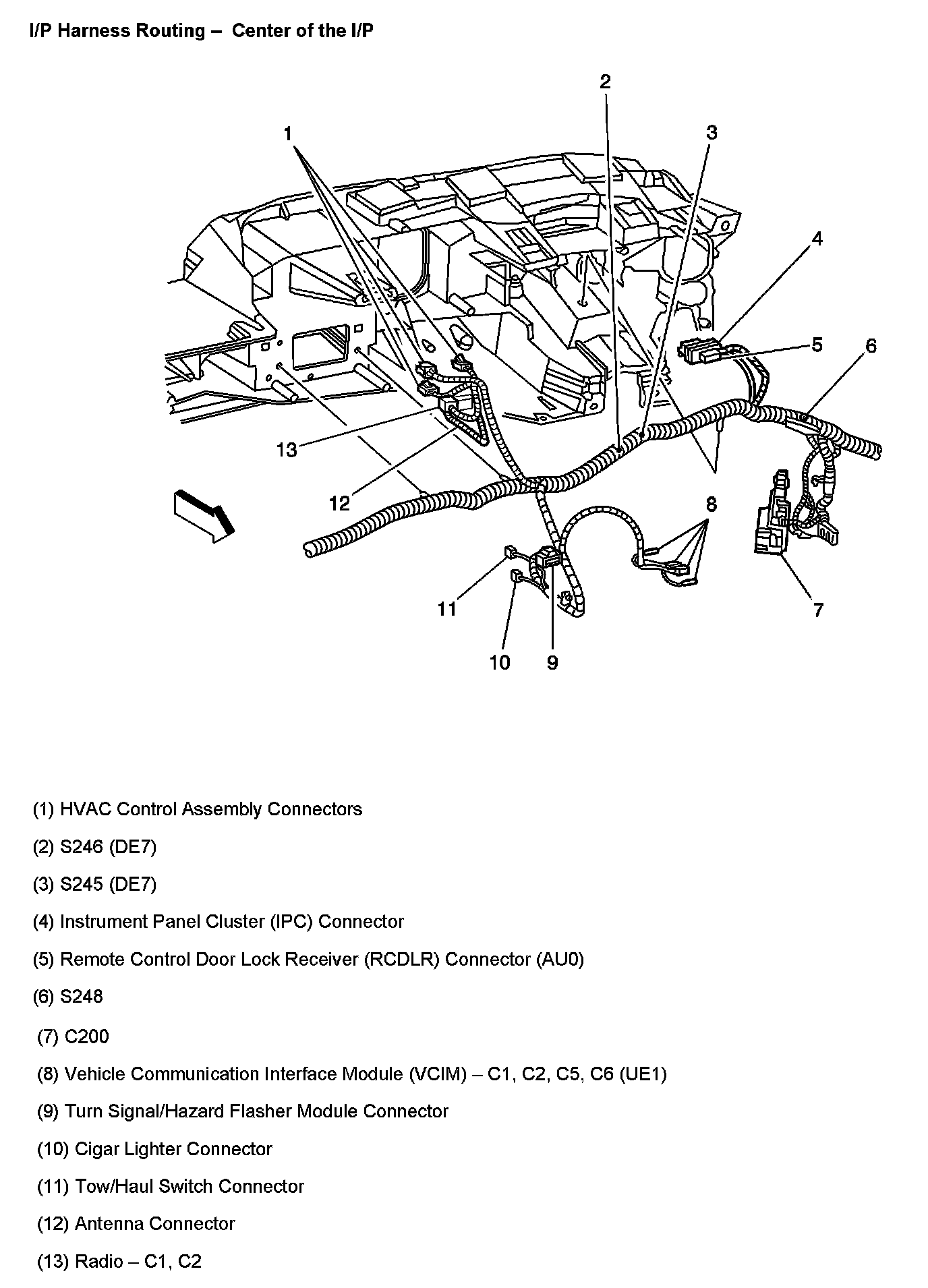

I/P Harness Routing - Center of the I/P

I/P Harness - Center Of The I/P:



I/P Harness Routing - Center Of The I/P:
