Electrical Diagrams

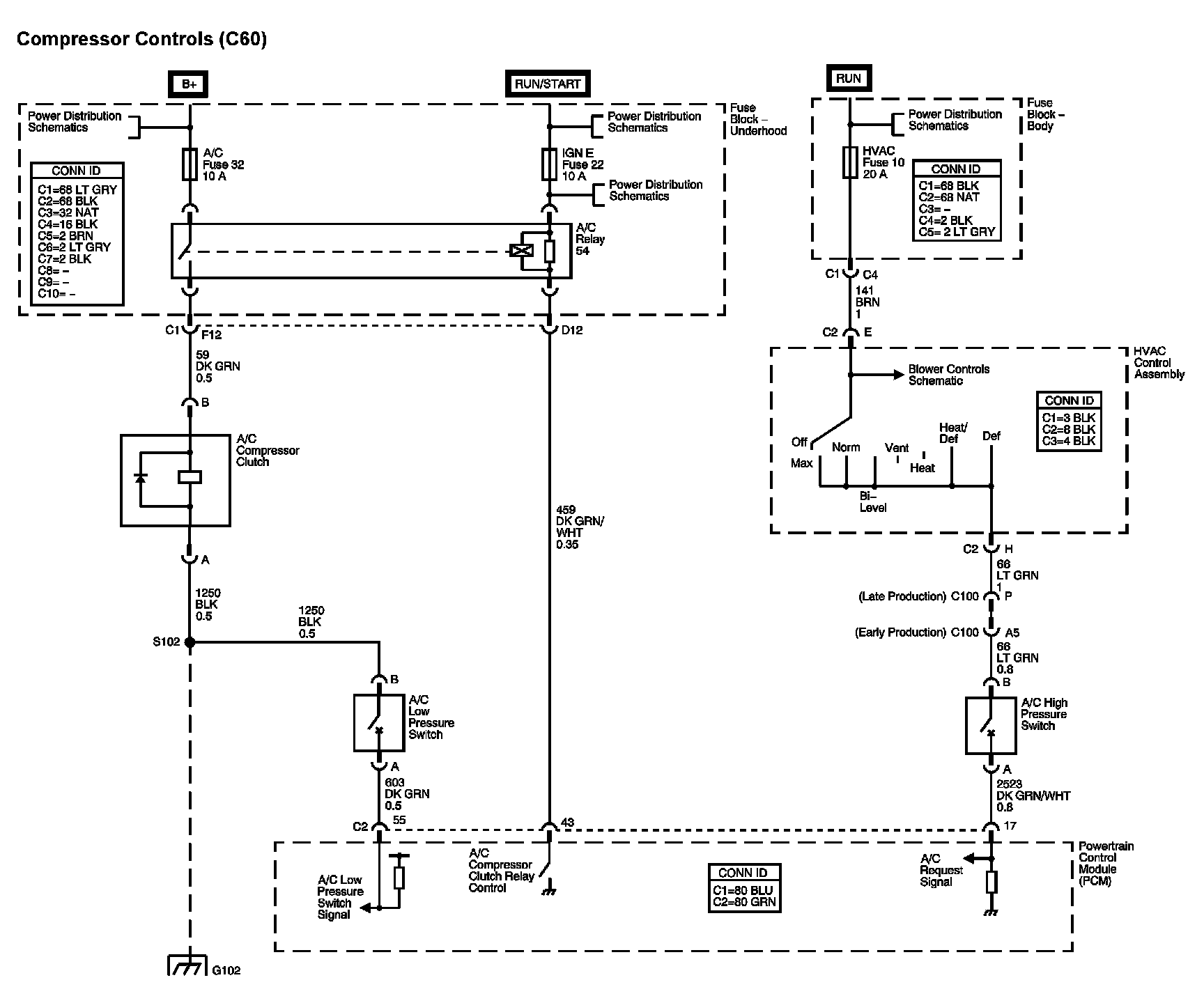

HVAC Diagram 1:

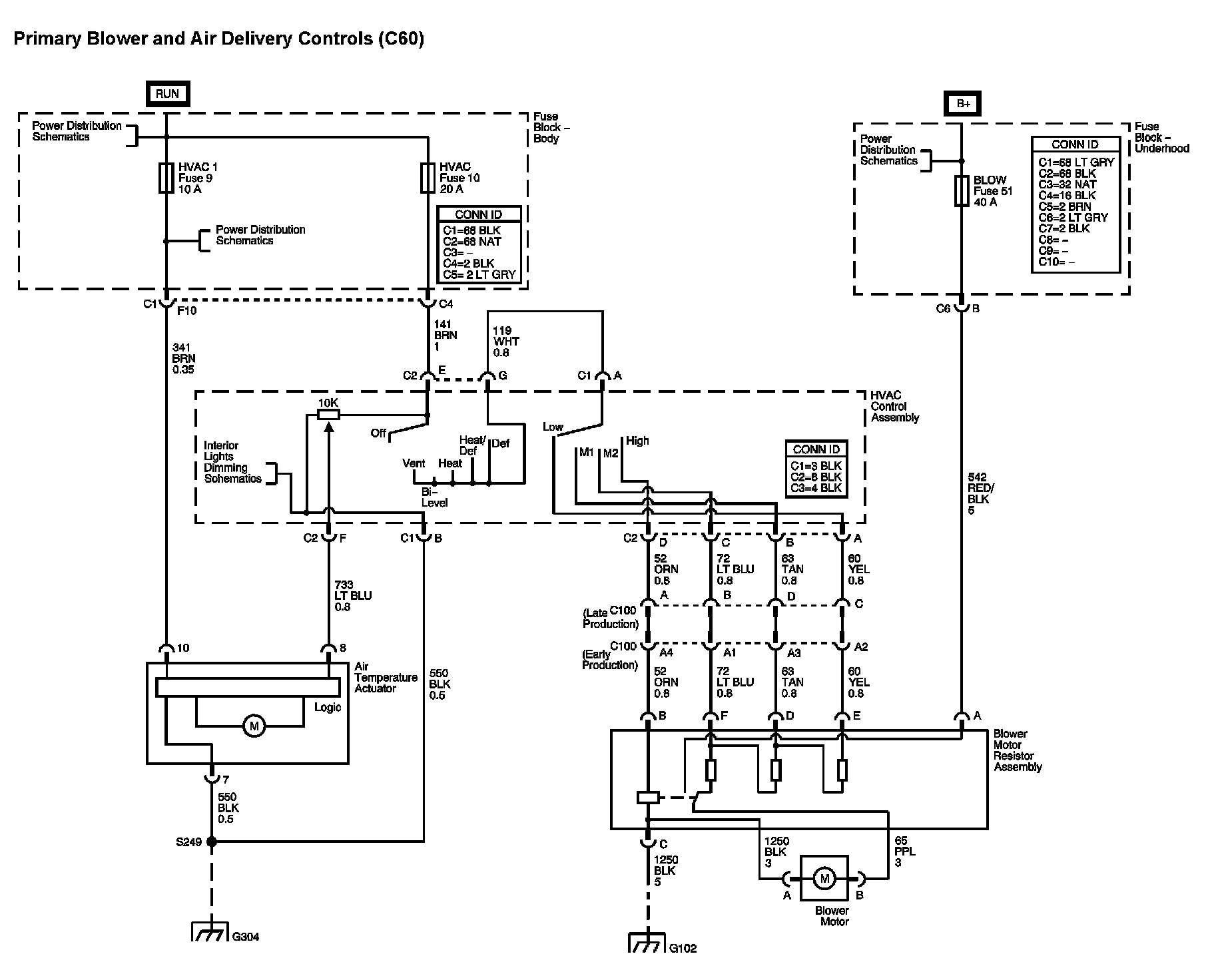

HVAC Diagram 2:

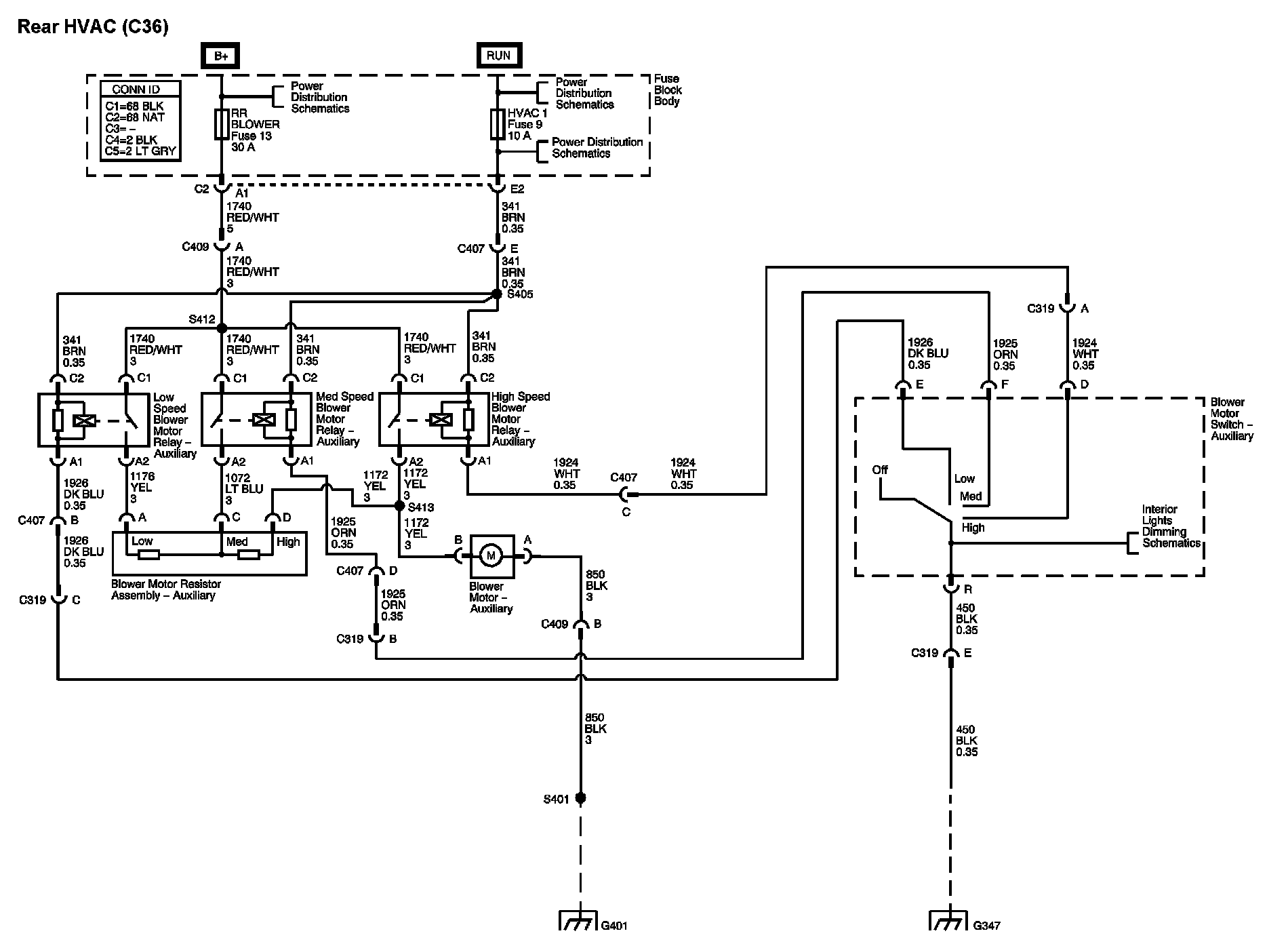

HVAC Diagram 3:

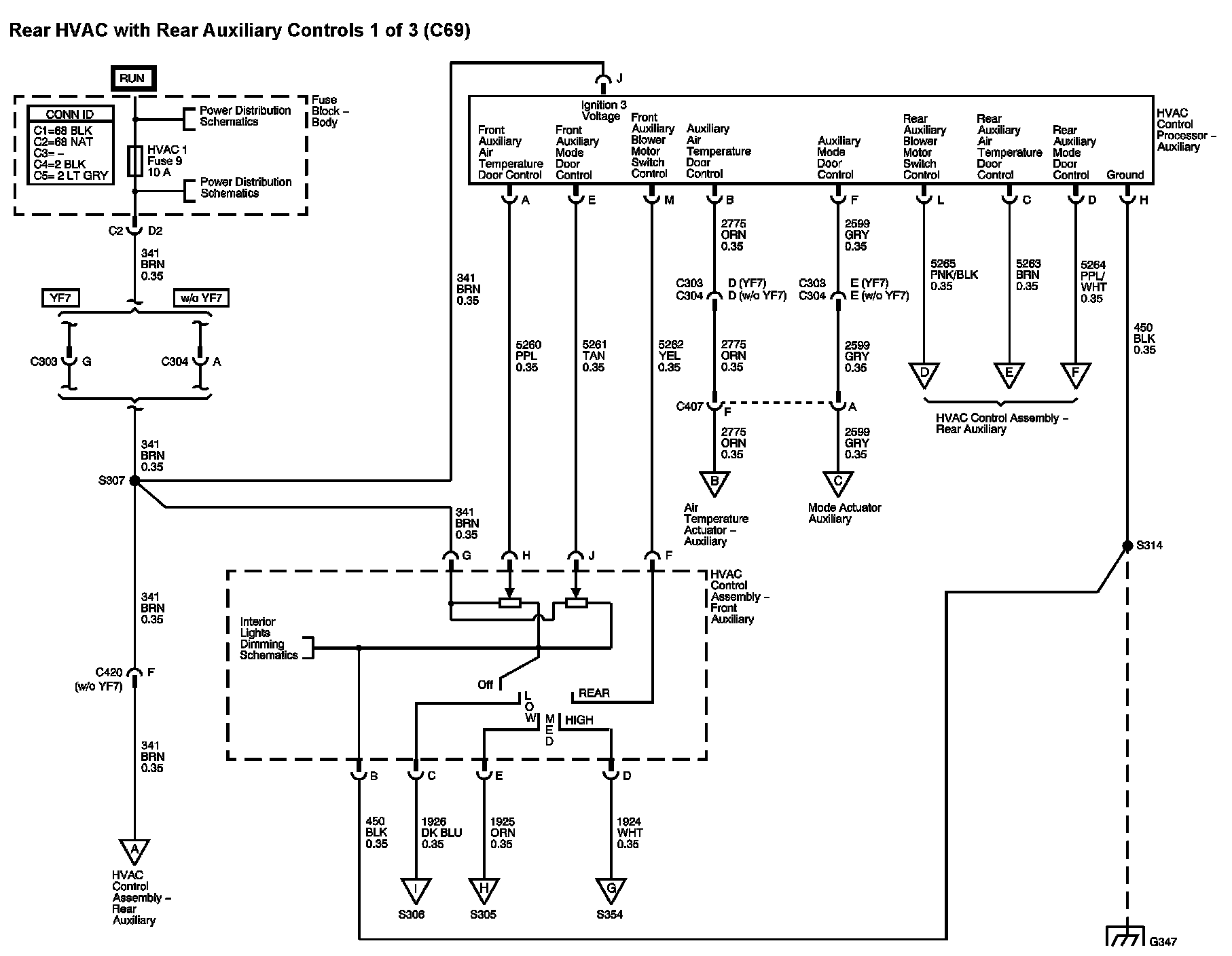

HVAC Diagram 4 (1 Of 3):

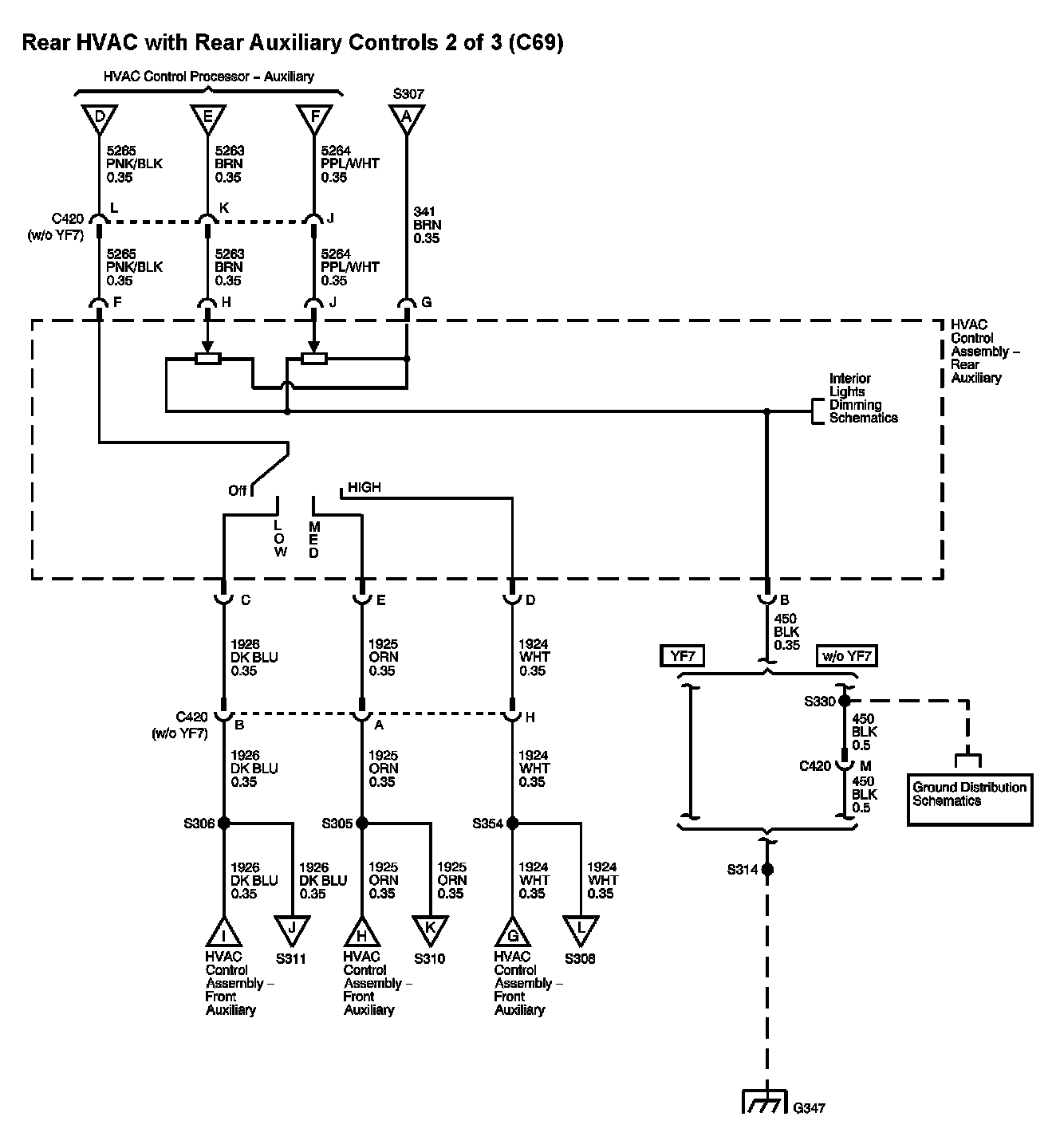

HVAC Diagram 4 (2 Of 3):




HVAC Diagram 4 (3 Of 3):

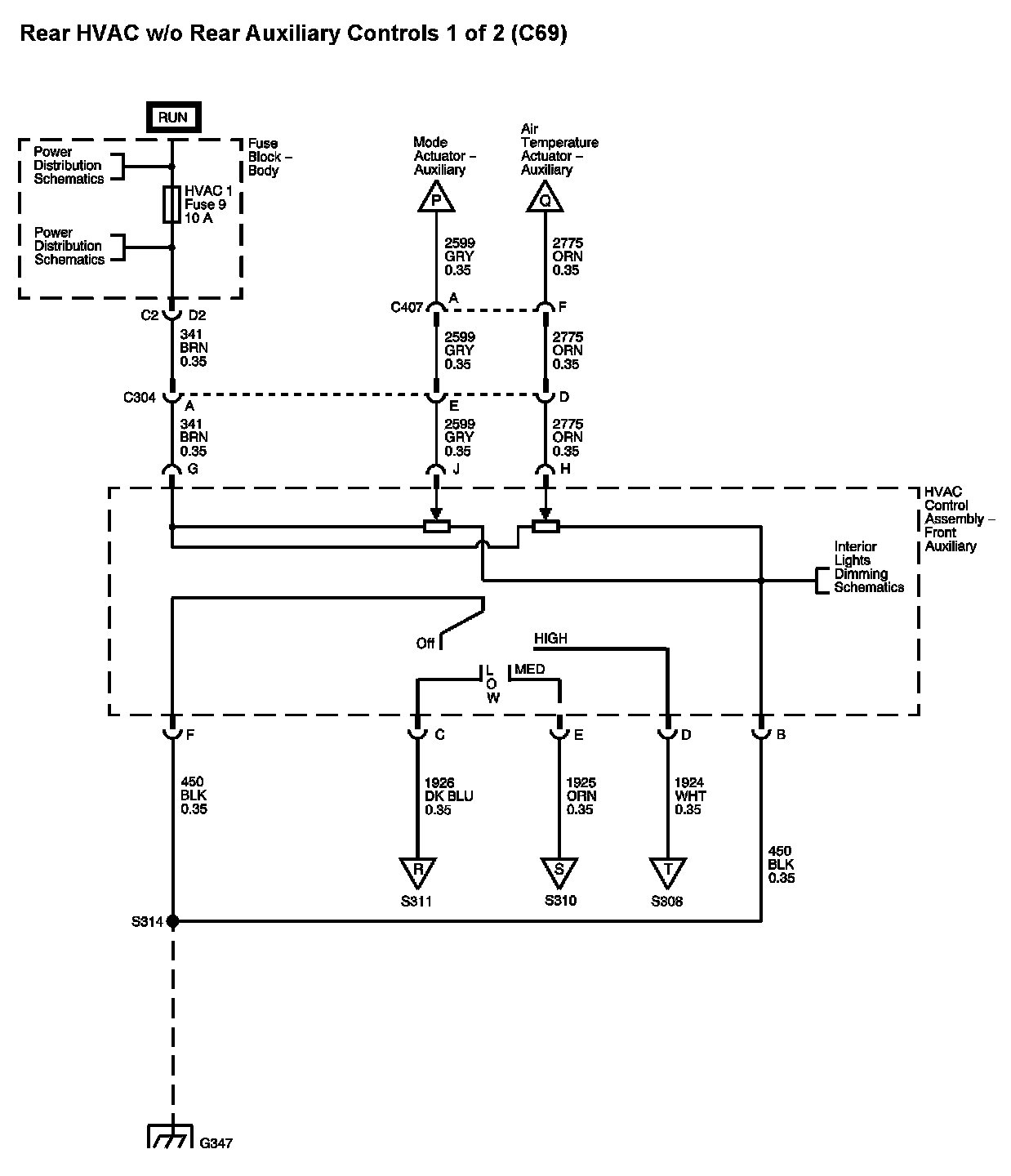

HVAC Diagram 5 (1 Of 2):

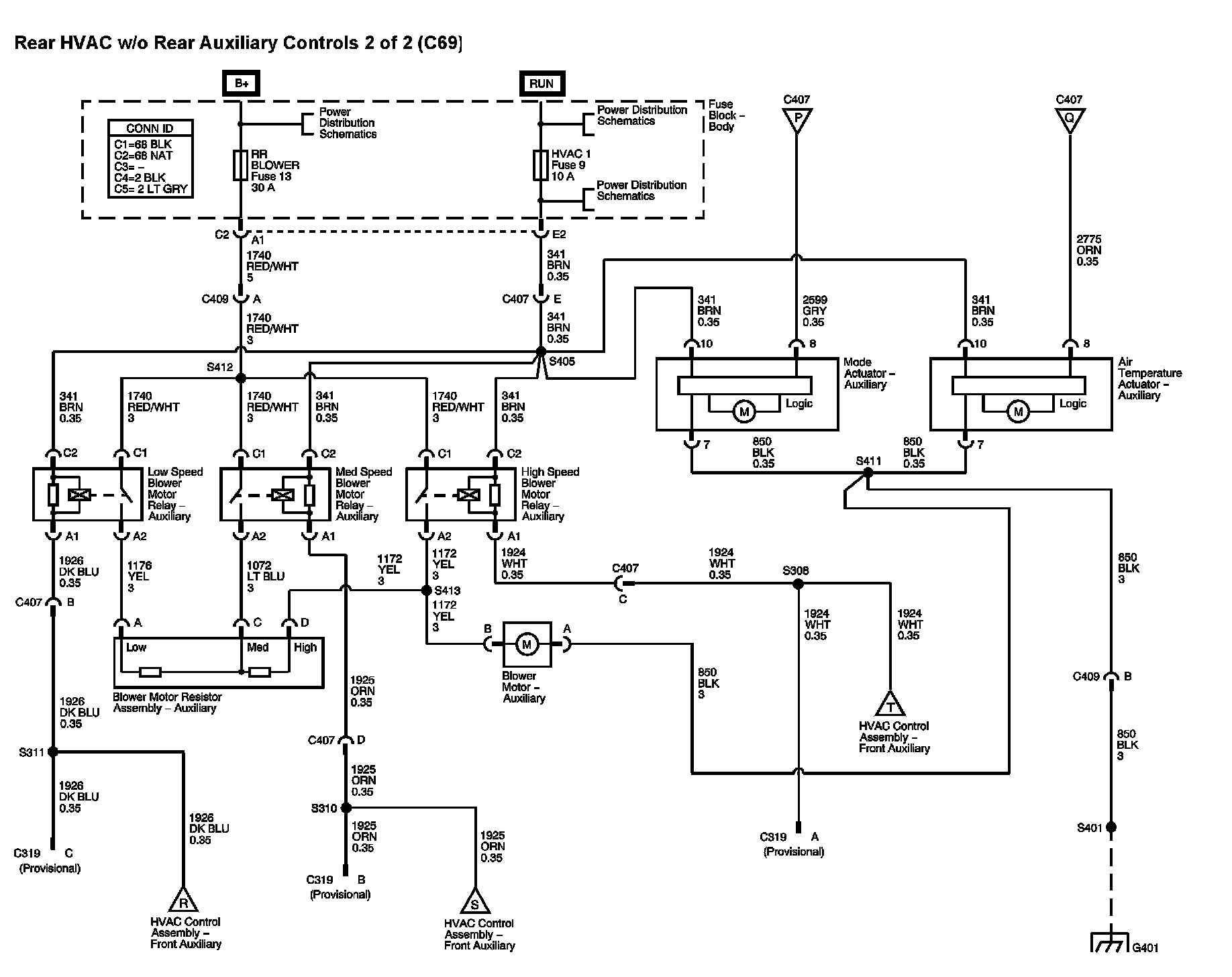

HVAC Diagram 5 (2 Of 2):

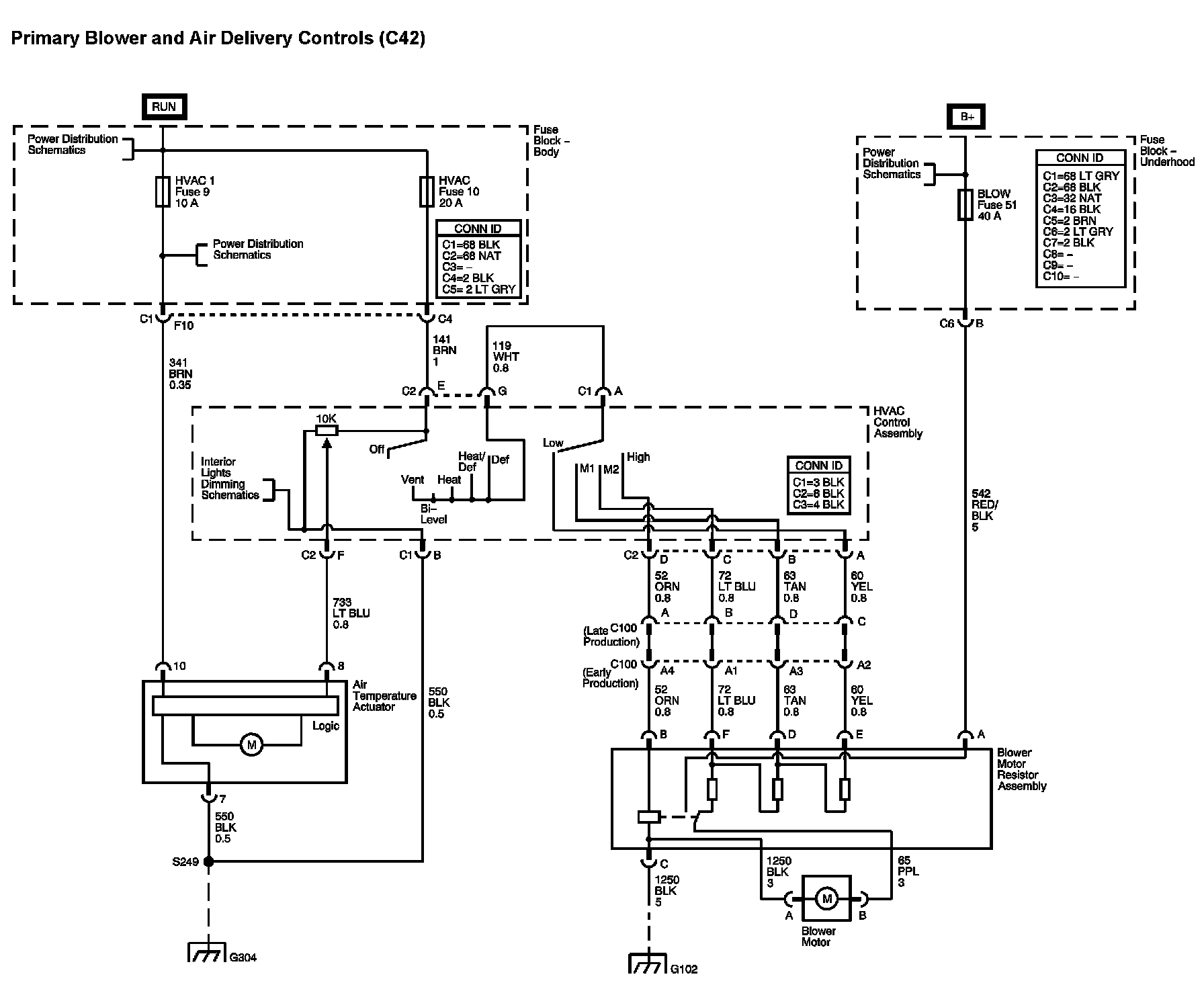

HVAC Diagram 6:
