85. Throttle Body Installation

Throttle Body Installation

Notice: Refer to Fastener Notice in Service Precautions.

1. Install the throttle body studs, if required.
- Tighten the throttle body studs to 6 Nm (53 inch lbs.).





Important: DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

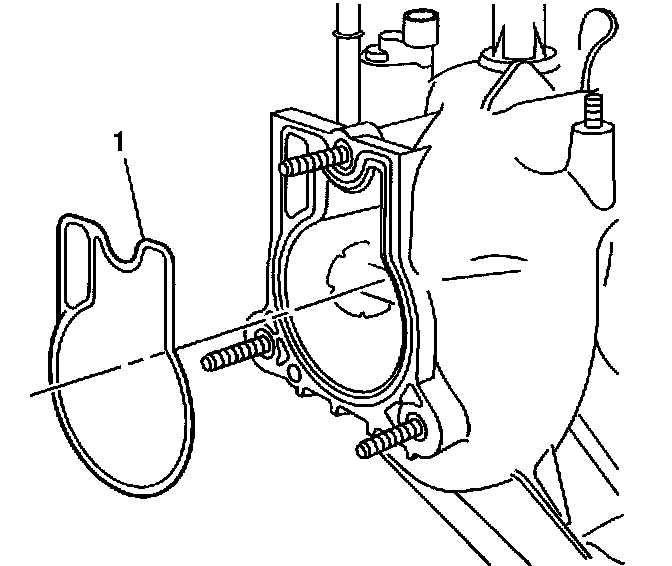

2. Install the throttle body gasket (1) to the intake manifold.

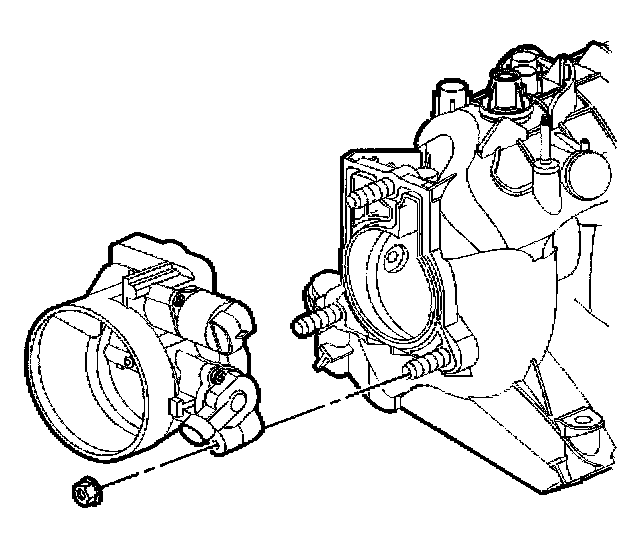

3. Install the throttle body and nuts.
- Tighten the throttle body nuts to 10 Nm (89 inch lbs.).
4. Install the engine coolant air bleed hose and clamp to the throttle body.
